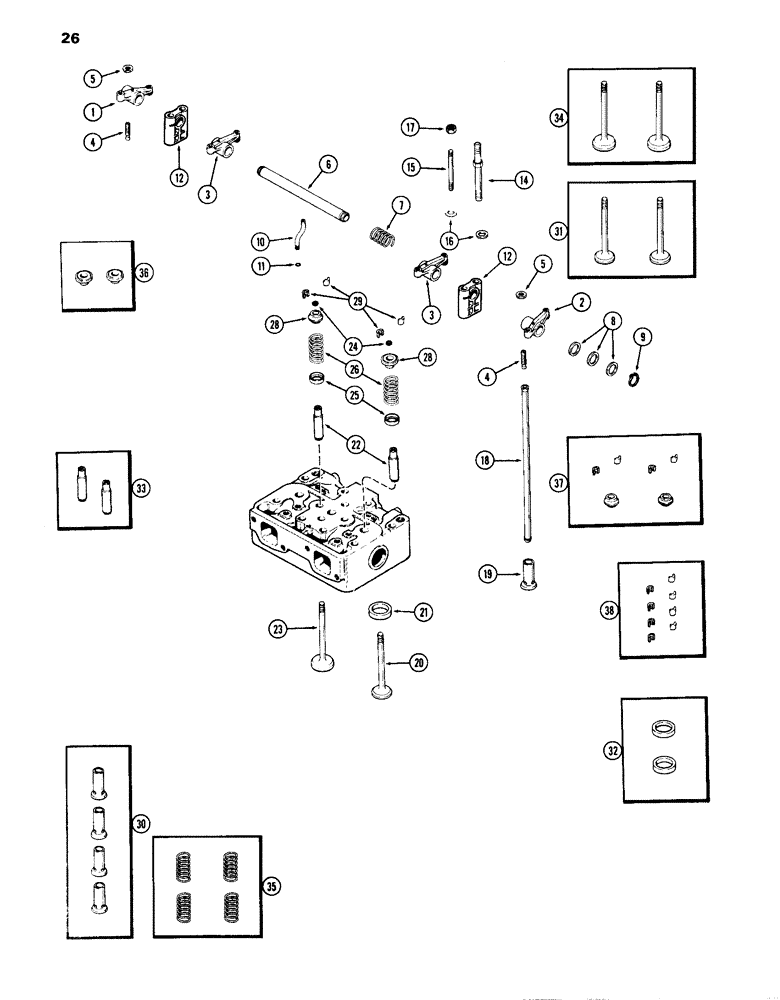

Запчасти Case IH 870 (026) - VALVE MECHANISM, (336B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve (1st & 3rd cylinders)

2шт.

2

A58656

ARM

- rocker, exhaust valve (2nd & 4th cylinders)

2шт.

3

A58654

ARM

- rocker, intake valve

4шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

8шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- (3/8" N.C. hex, jam)

8шт.

6

A57532

SHAFT

ASSY. - rocker arm

2шт.

7

A27877

SPRING

- rocker arm shaft

2шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

4шт.

10

A58657

TUBE

- rocker arm shaft oil

2шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

2шт.

12

A61128

BRACKET

- rocker arm shaft

4шт.

14

A67121

STUD

- rocker arm support (7/16" N.C. x 5-7/8") (Replaces A60885)

4шт.

15

A58659

STUD

- rocker arm support (7/16" N.C. x 4-5/16")

4шт.

16

195-29

WASHER,7/16"

- (15/32 x 59/64 x 1/16")

8шт.

17

25-107

NUT,7/16"-14, G5

- (7/16" N.C. hex)

8шт.

18

A58596

ROD

ASSY. - push

8шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. 30)

8шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 31)

4шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 32)

4шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - intake & exhaust valves (Order ref. 33)

8шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 34)

4шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

8шт.

25

A66328

SEAT

- intake & exhaust valve springs (Replaces A58623)

8шт.

26

NSS

NOT SOLD SEPARAT

SPRING - intake & exhaust valves (Order ref. 35)

8шт.

27

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. 36)

4шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 37)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 38)

16шт.

30

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Standard)

2шт.

30

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

2шт.

31

A41753

VALVE

KIT - exhaust (Set of 2)

2шт.

32

A44576

INSERT

KIT - exhaust valve (Set of 2) (Replaces A41757)

2шт.

33

A41781

GUIDE

KIT - intake & exhaust valves (Set of 2)

4шт.

34

A41754

VALVE

KIT - intake (Set of 2)

2шт.

35

A42895

SPRING

KIT - intake & exhaust valves (set of 4)

2шт.

36

A44658

COIL

ROTO CAP KIT - exhaust valve (Set of 2)

2шт.

37

A44645

KIT

RETAINER KIT - intake valve (2 rets. & 4 locks) (Replaces A21657)

2шт.

38

A40352

LOCK

KIT - valve springs (Set of 8)

2шт.
