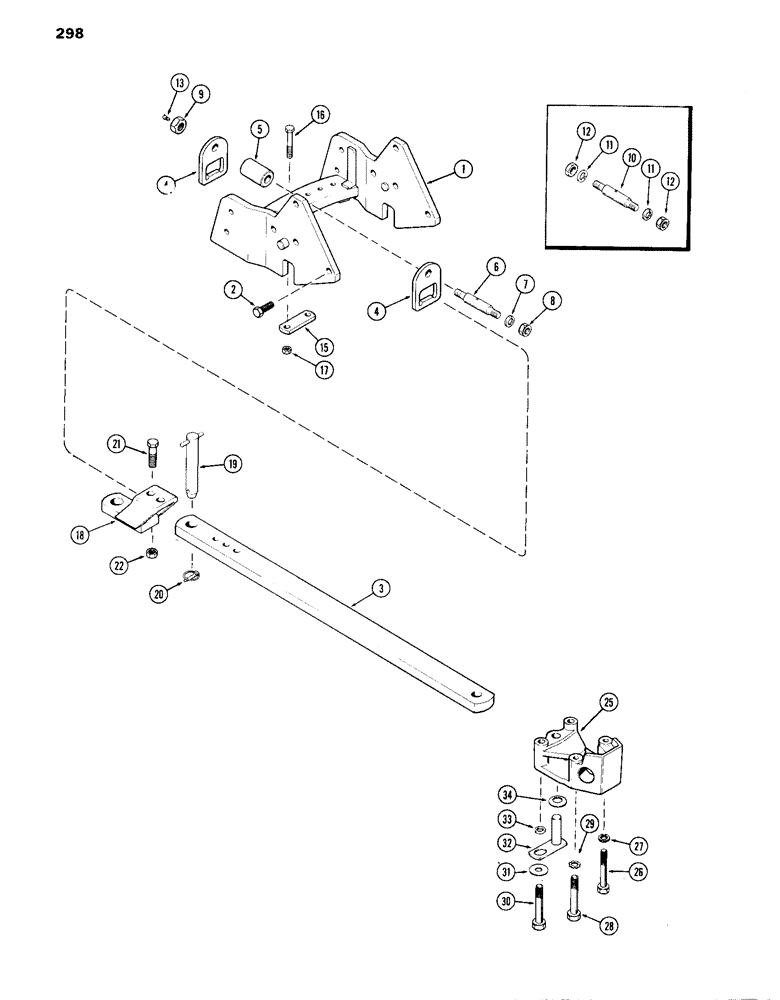

Запчасти Case IH 870 (298) - DRAWBAR, WITH HITCH, FIRST USED TRACTOR SERIAL NUMBER 8693001 (09) - CHASSIS/ATTACHMENTS

1

A62424

SUPPORT

ASSY. - drawbar rear

1шт.

2

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex

8шт.

3

A135276

DRAWBAR

- standard (Replaces A64193)

1шт.

4

A60417

BRACKET

- drawbar hanger

2шт.

5

A59151

ROLLER

- drawbar

1шт.

6

A65702

SHAFT

- drawbar roller (Replaced A64464)

1шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

8

25-1012

NUT,3/4"-10, G5

1шт.

9

131-561

NUT

- (3/4" N.C. Flex Lock, thin)

1шт.

10

A64464

SHAFT

- drawbar, roller (Order 1-A65702 & 1-131-561)

1шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

25-1012

NUT,3/4"-10, G5

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T.

1шт.

15

A60416

STRAP - drawbar clamp

1шт.

16

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

A64381

YOKE ATT. - (Mach. Item) (includes ref. 18 - 22)

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE - drawbar (Order A64381)

1шт.

19

A61674

PIN ASSY. - drawbar (includes ref. 20)

1шт.

20

A30338

PIN

KLIK - pin

1шт.

21

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4 x 2-3/4" N.C. hex

2шт.

22

129-572

NUT,3/4"-10, G8

2шт.

25

A59603

BRACKET

- drawbar pivot pin

1шт.

26

113-672

BOLT

- 5/8 x 5-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-3/4" N.C. hex

1шт.

29

A34651

LOCK WASHER

- lock (3/4"ext. Shakeproof)

1шт.

30

113-756

BOLT

- 3/4 x 6" N.C. hex

1шт.

31

95-12

WASHER,3/4"

- plain, 13/16 x 2 x 5/32"

2шт.

32

A65762

PIN

ASSY. - drawbar pivot (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- spring, pivot pin

1шт.
