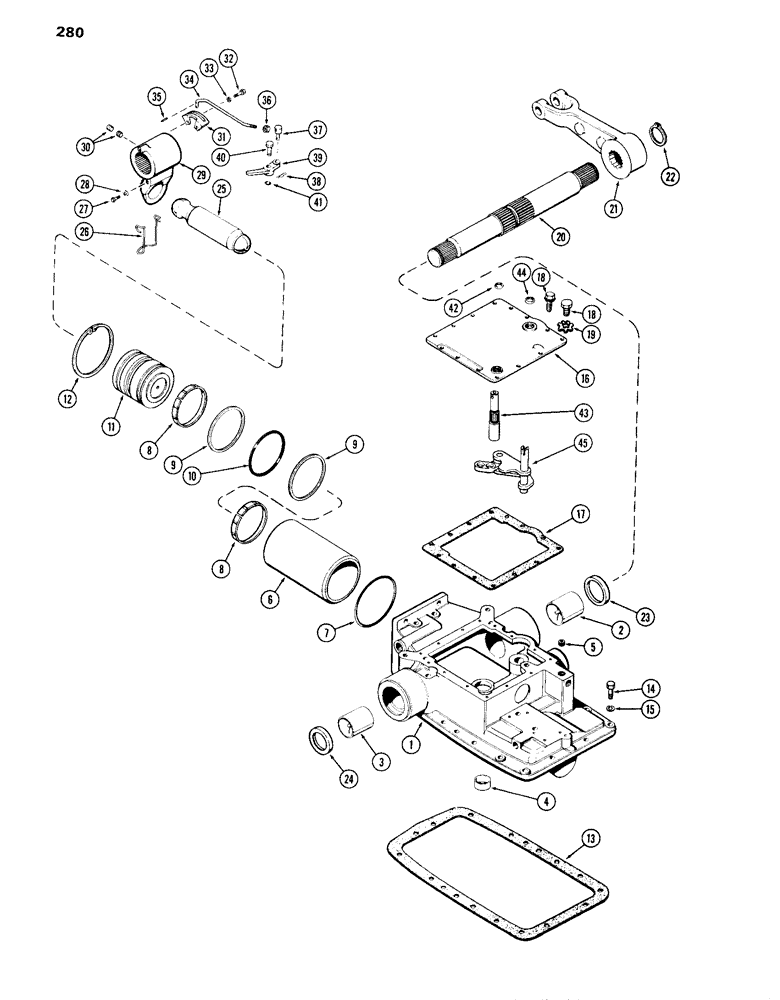

Запчасти Case IH 870 (280) - ROCKSHAFT AND HOUSING (09) - CHASSIS/ATTACHMENTS

1

A60639

HOUSING

ASSY. - rockshaft w/bushings (includes ref. 2 - 5)

1шт.

2

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- rockshaft hsg. (L.H.) (2-3/4 x 2-15/16 x 3")

1шт.

3

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- rockshaft hsg. (R.H.) (2-3/8 x 2-9/16 x 3")

1шт.

4

A12014

BUSHING

- signal shaft, upper (1-1/2 x 1-3/4 x 3/4")

1шт.

5

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pipe (3/8" P.T. hex socket head)

3шт.

6

A34273

LINING

LINER - hyd. cylinder piston (9-47/64" long)

1шт.

7

A32295

O-RING,5.725" ID x 6.275" OD x 0.275"

"O" RING - piston liner (5-3/4 x 6-1/4 x 1/4")

1шт.

8

A32219

RING,126.62mm ID x 133.35mm OD x 15.88mm Thk

- wear, piston

2шт.

9

A32293

RING,121.94mm ID x 133.93mm OD x 2.97mm Thk

"O" RING - back-up, piston liner

2шт.

10

A32294

O-RING,4.725" ID x 5.275" OD x 0.275"

"O" RING - piston (4-3/4 x 5-1/4 x 1/4")

1шт.

11

A34270

PISTON

ASSY. - rockshaft hyd. cylinder

1шт.

12

A32292

CIRCLIP

SNAP RING - piston liner retainer

1шт.

13

A32299

GASKET

- rockshaft housing

1шт.

14

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Rockshaft housing to trans. case Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

14

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

14

15-8112

BOLT

- hex hd. (1/2 x 7" N.C.) (Grade 5)

2шт.

15

92-8

LOCK WASHER,1/2"

16шт.

16

A59598

COVER

- rockshaft housing

1шт.

17

A33383

GASKET

- rockshaft housing cover

1шт.

18

193-538

BOLT - hex hd., cover to hsg. (5/16 x 1" N.C. Sems)

10шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

18

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- 5/16 x 1-1/4" N.C. hex

2шт.

19

193-45

WASHER,Ext-Int Tooth, 5/16"

- Shakeproof, 5/16" int./ext.

2шт.

20

A32286

ROCKSHAFT

1шт.

21

A57494

ARM

- rockshaft, lift links (R.H. & L.H.)

2шт.

22

A32300

SNAP RING,#225, 2.174", Ext

- retaining, rockshaft lift arm

2шт.

23

A32305

OIL SEAL,69.85mm ID x 92.2mm OD x 11.91mm Thk

- oil, rockshaft (L.H.) (2-3/4 x 3-5/8 x 15/32")

1шт.

24

A32304

OIL SEAL,60.33mm ID x 85.8mm OD x 11.91mm Thk

- oil, rockshaft (R.H.) (2-3/8 x 3-3/8 x 15/32")

1шт.

25

A57887

ROD

- piston

1шт.

26

A60497

SPRING

- rockshaft piston rod

1шт.

27

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Retainer to arm Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

28

95-6

WASHER,3/8"

- plain, retainer to arm () 3/8"

2шт.

29

A32287

ARM

- rockshaft, piston rod

1шт.

30

84-88

SET SCREW,Hex Soc, 1/2"-20 x 1/2"

SCREW - set, piston arm to rockshaft (1/2" N.F. cup point socket head)

2шт.

31

A33380

BRACKET

- draft control valve lock rod

1шт.

32

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Valve lock bracket to rockshaft piston arm Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

33

92-5

LOCK WASHER,5/16"

2шт.

34

A33381

ROD

- draft control lever valve lock

1шт.

35

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Lock rod 1/8" x 5/8", Slotted

2шт.

36

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, lock rod (3/8" N.F. Jam)

1шт.

37

A33379

TRUNNION

- lock, Serial Range: rod-lever

1шт.

38

136-109

SPLIT PIN

PIN - cotter, internal hair (.080 x 1-27/64")

1шт.

39

A34175

LEVER

- draft control valve lock

1шт.

40

A32918

PIN

- pivot, D.O.M. valve lock lever

1шт.

41

A11538

SNAP RING,#50, Ext

RING, snap, , D.O.M. valve lock lever pivot pin #50, Ext

1шт.

42

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- oil, manual control shaft (3/4 x 1 x 1/8")

1шт.

43

A59599

SHAFT - manual, draft control

1шт.

44

A32308

OIL SEAL

- oil, sensitivity shaft (5/8 x 7/8 x 1/8")

1шт.

45

A32310

LINK

- draft control (Link "C")

1шт.
