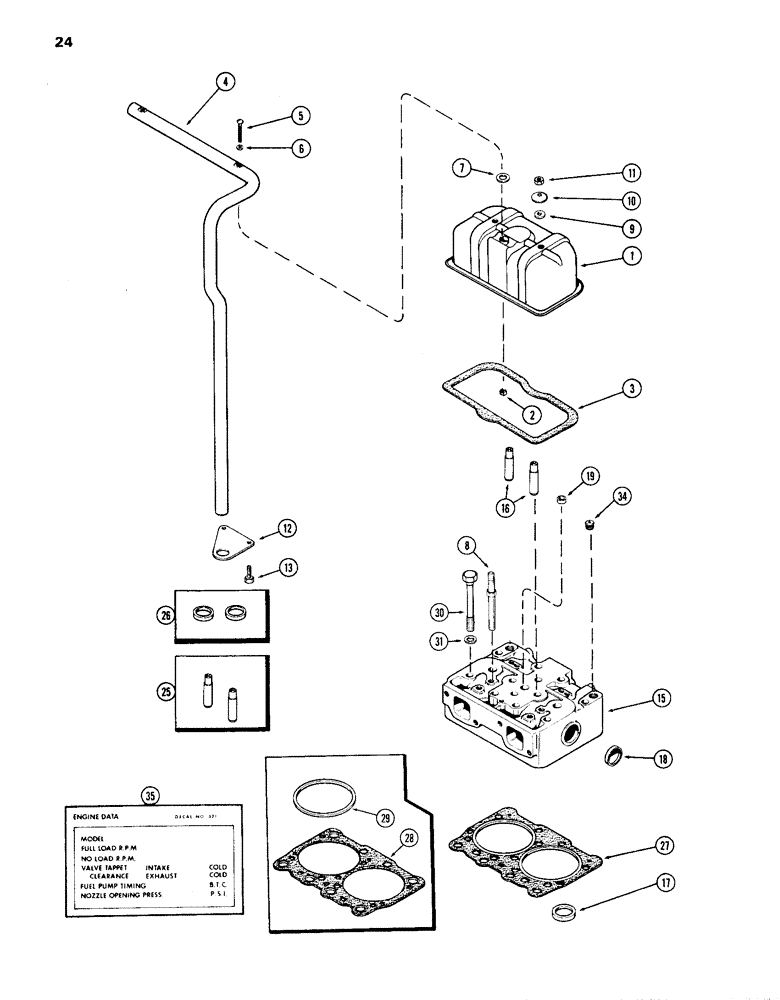

Запчасти Case IH 870 (024) - CYLINDER HEAD AND COVER, (336B) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSY. - cylinder head (includes ref. 2)

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover (Replaces A58928)

2шт.

4

A59055

SPARE PART TUBE - breather

1шт.

5

75-440

SCREW

SCREW - machine (1/4 x 2-1/2" N.C. rd. hd.)

2шт.

6

A34133

GASKET

GASKET - breather tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

2шт.

8

A67121

STUD

STUD - rocker arm brkt. & cyl. head cover (Replaces A60885)

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

WASHER - beveled, cover stud

4шт.

11

25-107

NUT,7/16"-14, G5

NUT - (7/16" N.C. hex)

4шт.

12

A59054

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - (3/8 x 1-1/2" N.C. sems)

2шт.

15

A66709

HEAD

HEAD ASSY. - cylinder (Replaces A60558) (includes ref. 16 - 19)

2шт.

15

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

2шт.

15

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - (1-5/8" cup type)

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

PLUG - (3/4" cup type)

3шт.

25

A41781

GUIDE

GUIDE KIT - intake & exhaust (Set of 2)

4шт.

26

A44576

INSERT

INSERT KIT - exhaust valve (Set of 2) (Replaces A41757)

2шт.

27

A64113

CYLINDER HEAD GASKET

GASKET - cylinder head (1st used eng. ser. no. 2511310)

1шт.

28

A59121

CYLINDER HEAD GASKET

GASKET - cylinder head (Replaces A58621) (used prior to eng. ser. no. 2511310)

2шт.

29

A58622

RING

RING - fire (standard) (used prior to eng. ser. no. 2511310)

4шт.

29

A42596

RING - fire (thick) (Coded w/blue stripe) (used prior to eng. ser. no. 2511310)

1шт.

30

A62732

STEP BOLT

BOLT - (5/8 x 5-5/8" N.C. hex) (Replaces A58630)

20шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

34

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - (3/8" P.T. hex sckt. hd.)

4шт.

35

321-2689

SPARE PART DECAL - engine data (nozzle opening pressure 3200 PSI) (1st used eng. ser. no. 2530834)

1шт.

35

321-2318

DECAL

DECAL - engine data (nozzle opening pressure 3200 PSI) (used eng. ser. no., Serial Range: 2504029-2530834)

1шт.

35

321-1803

DECAL

DECAL - engine data (nozzle opening pressure 2800 PSI) (used prior to eng. ser. no. 2504029)

1шт.
