Запчасти Case IH 870 (293A) - HYDRAULIC COUPLINGS, PRESSURE COUPLINGS (08) - HYDRAULICS

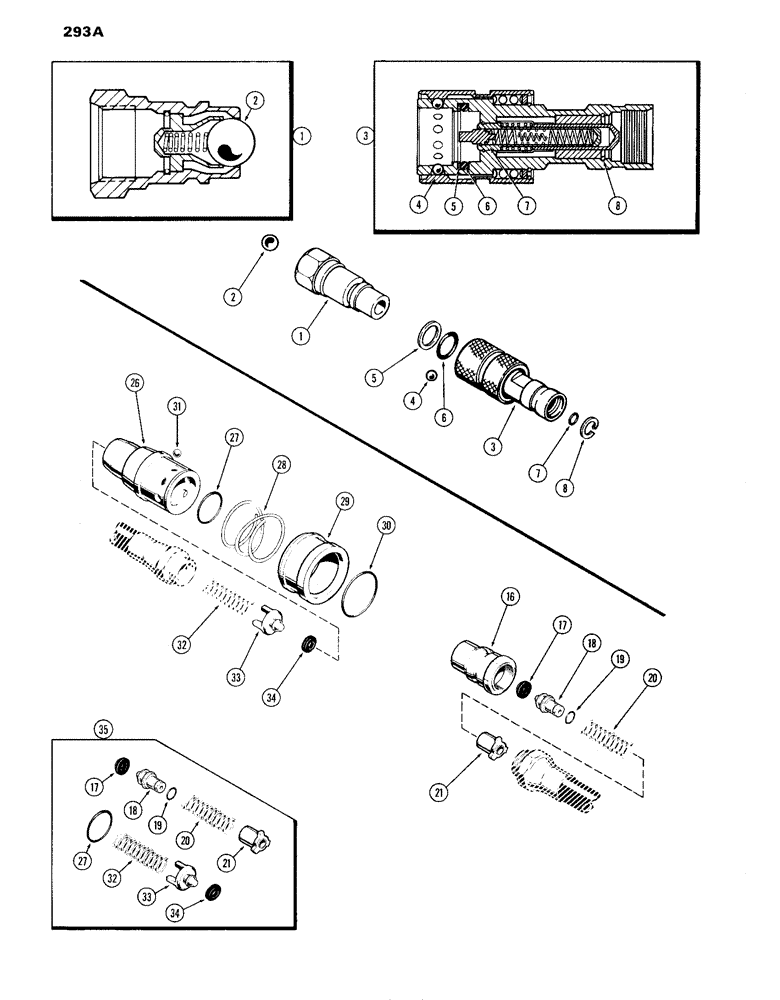

Схема запчастей Case IH 870 - (293A) - HYDRAULIC COUPLINGS, PRESSURE COUPLINGS (08) - HYDRAULICS
27
19
5
27
30
7
34
6
34
19
32
4
28
6
31
18
8
17
21
7
8
1
26
1
33
20
35
5
2
20
29
17
21
3
18
3
33
2
4
16
32

Артикул

Название

Примечание

Количество

1

A66816

COUPLING, BREAK AWAY

COUPLING ASSY. - male (includes ref. 2)

1шт.

2

211-316

BALL,17/32" Dia

- coupling

1шт.

3

A141156

COUPLING, BREAK AWAY

COUPLING ASSY. - female (includes ref. 4 - 8)

4шт.

4

211-355

BALL

- coupling

10шт.

5

A44890

RING

- back-up

1шт.

A45281

SEAL KIT

KIT - repair, coupling (includes ref. 6, 7 & 8)

1шт.

6

A45236

O-RING,0.796" ID x 1.074" OD x 0.139"

"O" RING - body seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - poppet

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - hyd. break-away, male half, standard (includes ref. 16 - 21)

1шт.

16

A27356

PIPE FITTING

BODY - male section, standard couplings

1шт.

17

A33964

SEAL

- piston, standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

18

A27508

PISTON

- coupling, standard

1шт.

Included w/ REPAIR KIT, A40459

1шт.

19

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - 1/4 x 3/8 x 1/16", standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

20

A27351

SPRING

- piston, standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

21

A9634

SLEEVE

- piston, standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

A28542

COUPLING, QUICK, FEM

COUPLING ASSY. - break-away, female half, standard (includes ref. 26 - 34)

4шт.

26

A27349

BODY

- female section, standard couplings

1шт.

27

A34848

O-RING

"O" RING - 7/8 x 1-1/8 x 1/8", standard couplings

1шт.

28

A27354

SPRING

- sleeve tension, standard couplings

1шт.

29

A27353

SLEEVE

SLEEVE - male coupling lock & release, standard

1шт.

30

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining, standard couplings

1шт.

31

211-7

BALL,1/4" Dia

- swivel, standard couplings 1/4" Dia

8шт.

32

A11324

SPRING

- piston pressure, standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

33

A26215

PISTON

- coupling socket, standard

1шт.

Included w/ REPAIR KIT, A40459

1шт.

34

A33964

SEAL

- piston, standard couplings

1шт.

Included w/ REPAIR KIT, A40459

1шт.

35

A40459

KIT

- repair, coupling, standard, Includes: Ref. 17 - 21 and 32 - 34

1шт.

Выбрано товаров: 35
