Запчасти Case IH 870 (292) - REMOTE HYDRAULIC HOSES AND COUPLINGS (08) - HYDRAULICS

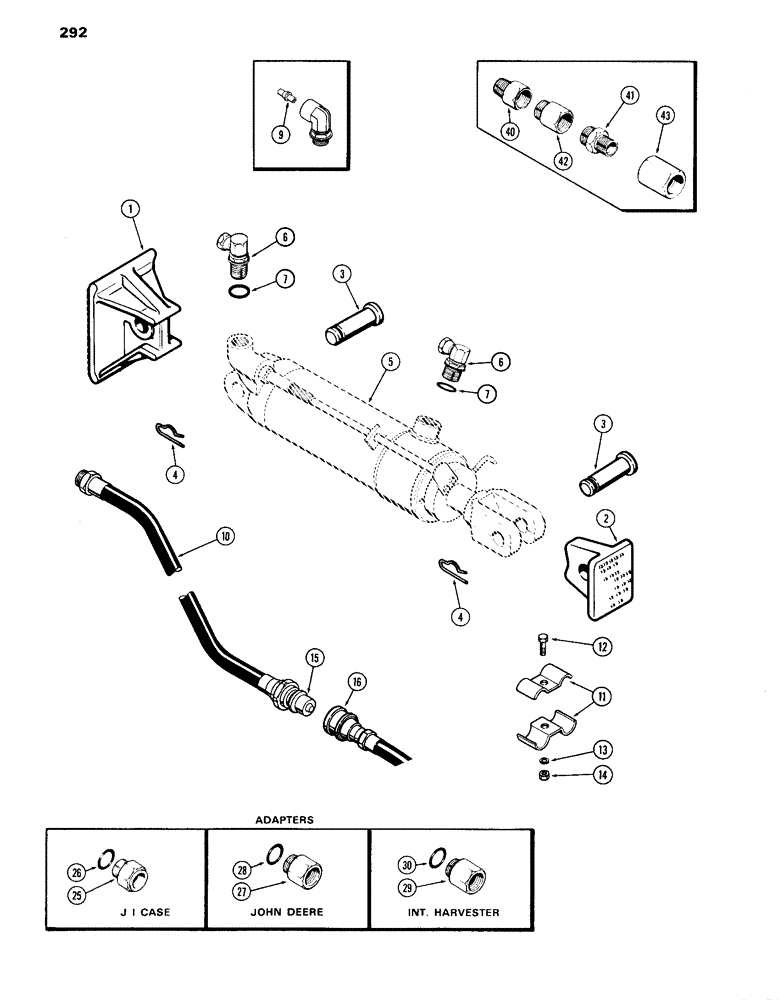

Схема запчастей Case IH 870 - (292) - REMOTE HYDRAULIC HOSES AND COUPLINGS (08) - HYDRAULICS
10
42
28
7
26
7
43
4
25
13
11
14
3
12
16
6
30
4
9
27
2
29
3
40
6
41
1
15
5

Артикул

Название

Примечание

Количество

1

A57188

BASE

- hydraulic cylinder

1шт.

2

A9163

PAD - hydraulic cylinder

1шт.

3

A27347

PIN

- cylinder retaining

2шт.

4

A29054

HAIR PIN COTTER

- internal hair

2шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER ASSY. - remote hyd. (See Pages 293D-297)

1шт.

6

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ADAPTER - hose to cyl. 7/8"-90 degrees (See ref. 8) (includes ref. 7)

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

8

A65953

HYDRAULIC VALVE

KIT - flow regulator (w/7/8"-14 thrd.) (includes ref. 9)

1шт.

9

A57369

SPOOL

POPPET - check, return flow

1шт.

10

A8204

HOSE - remote hydraulic (60" long)

1шт.

10

A8205

HOSE - remote hydraulic (96" long)

1шт.

10

A20816

HOSE

- remote hydraulic (106" long)

1шт.

10

A20817

HOSE

- hydraulic (118" long)

1шт.

11

A27440

CLAMP

- hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

15

NSS

NOT SOLD SEPARAT

COUPLING ASSY. - male, break-away (See Figure 293A)

1шт.

16

NSS

NOT SOLD SEPARAT

COUPLING ASSY. - female, break-away (See Figure 293A)

1шт.

25

A135687

ADAPTER

ASSY. - hyd. coupling (7/8"-14 male to 7/8"-18 female) (To convert J.I. Case Implement Hoses) [convert implement non standard hose fittings to sae std.] 1st used trac. s/n 8770001

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32" hose adaptors [ to convert implement non std. hose fittings to sae std.] 1st used trac. s/n 8770001

1шт.

27

A135688

ADAPTER

ASSY. - hyd. coupling (7/8"-14 male to 3/4"-16 female) (To convert John Deere Implement Hoses) to convert non std. hose fittings to sae std. [1st used trac s/n 8770001]

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32", hose adapters [to convert non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSY. - hyd. coupling (7/8"-14 male to 1/2" female) (To convert Int. Harvester Implement Hoses) hose adapters [to convert implement non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 5/8 x 3/4 x 3/32", hose adapters [to convert implement non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

40

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- 7/8"-18 female to 1/2" P.T. male, hose [to convert implement non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

41

A27359

ADAPTER

- 7/8"-18 male to 1/2" P.T. male, hose, [to convert implement non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

42

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- 7/8"-18 male to 1/2" P.T. female, hose [to convert implement non-std. hose fittings to sae std..] 1st used tractor s/n 8770001

1шт.

43

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- 7/8"-18 female to 1/2" P.T. female, hose [to convert implement non-std. hose fittings to sae std.] 1st used tractor s/n 8770001

1шт.

Выбрано товаров: 29
