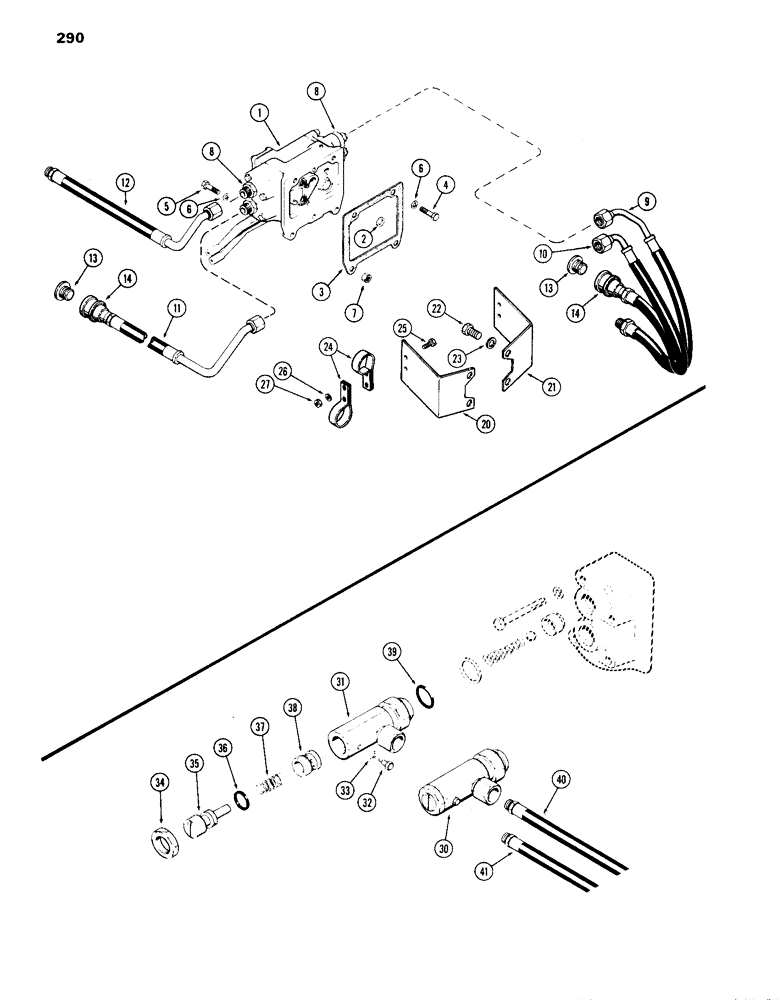

Запчасти Case IH 870 (290) - BREAK-AWAY COUPLINGS AND LINES, FOR VALVES WITH STRAIGHT OUTLET FITTINGS, STANDARD COUPLINGS (08) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSY. - auxiliary (See Figure 274), Start Serial: 8709725

1шт.

2

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- valve, 21/32 x 29/32 x 9/64", Start Serial: 8709725

1шт.

3

A32349

GASKET

- valve to housing, Start Serial: 8709725

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

, Start Serial: 8709725

2шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

, Start Serial: 8709725

2шт.

6

92-8

LOCK WASHER,1/2"

, Start Serial: 8709725

4шт.

7

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, Start Serial: 8709725

2шт.

8

A64708

FITTING

- outlet, R.H. & L.H. hose (7/8" N.F. x 1-1/16" N.F. x 1-3/4" lg.), Start Serial: 8709725

4шт.

9

A32999

HOSE

- hydraulic, L.H. lower (24-7/16" long), Start Serial: 8709725

1шт.

10

A33003

HOSE

- hydraulic, L.H. upper (18-3/16" long), Start Serial: 8709725

1шт.

11

A65328

HOSE

- hydraulic, R.H. lower (18-13/16" long), Start Serial: 8709725

1шт.

12

A65327

HOSE

- hydraulic, R.H. upper (23-1/2" long), Start Serial: 8709725

1шт.

13

A65044

PLUG

- dust, upper remote coupling (black), Start Serial: 8709725

2шт.

13

A65045

PLUG

- dust, lower coupling (yellow), Start Serial: 8709725

2шт.

14

NSS

NOT SOLD SEPARAT

COUPLING ASSY. - female break-away (See Figure 293A), Start Serial: 8709725

4шт.

20

A57660

BRACKET

- mounting, R.H. coupling, Start Serial: 8709725

1шт.

21

A57661

BRACKET - mounting, L.H. coupling, Start Serial: 8709725

1шт.

22

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

, Start Serial: 8709725

4шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8", Start Serial: 8709725

4шт.

24

A57662

CLAMP

- coupling to bracket, Start Serial: 8709725

4шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

, Start Serial: 8709725

4шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4", Start Serial: 8709725

4шт.

27

9635082

NUT,5/16" - 18, Gr 5

- 1/4" N.C. hex, Start Serial: 8709725

4шт.

A65107

REGULATOR

KIT - speed, remote cylinder, hydraulic (includes ref. 30 - 41), Start Serial: 8709725

1шт.

30

A65105

VALVE

REGULATOR ASSY. - cylinder speed, (includes ref. 31 - 39), Start Serial: 8709725

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - regulator, hydraulic cylinder speed, Start Serial: 8709725

1шт.

32

A31095

SCREW,Hex, #8 - 32 x 15/32"

- speed regulator stop, hydraulic cylinder regulator, Start Serial: 8709725

1шт.

33

192-106

WASHER

- lock, #8, hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

34

A31094

JAM NUT

- adjusting screw locking, hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

35

A31093

ADJUSTMENT SCREW,7/8" - 14 x 2 11/32", Gr 2

SCREW - speed regulation, adjusting, hydraulic cylinder, Start Serial: 8709725

1шт.

36

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O" RING - 9/16 x 3/4 x 3/32", hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

37

A27452

SPRING

- piston, hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

38

A31092

PISTON

- speed regulator, hydraulic cylinder (includes ref. 39), Start Serial: 8709725

1шт.

39

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8", hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

40

A60395

HOSE,12.7mm ID x 726.95mm L

- upper R.H. adapter (See Figure 291A), hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.

41

A32998

HYDRAULIC HOSE,15.88mm ID x 787.4mm L, SAE 100R1

HOSE - lower R.H. adapter (See Figure 291A), hydraulic cylinder speed regulator, Start Serial: 8709725

1шт.
