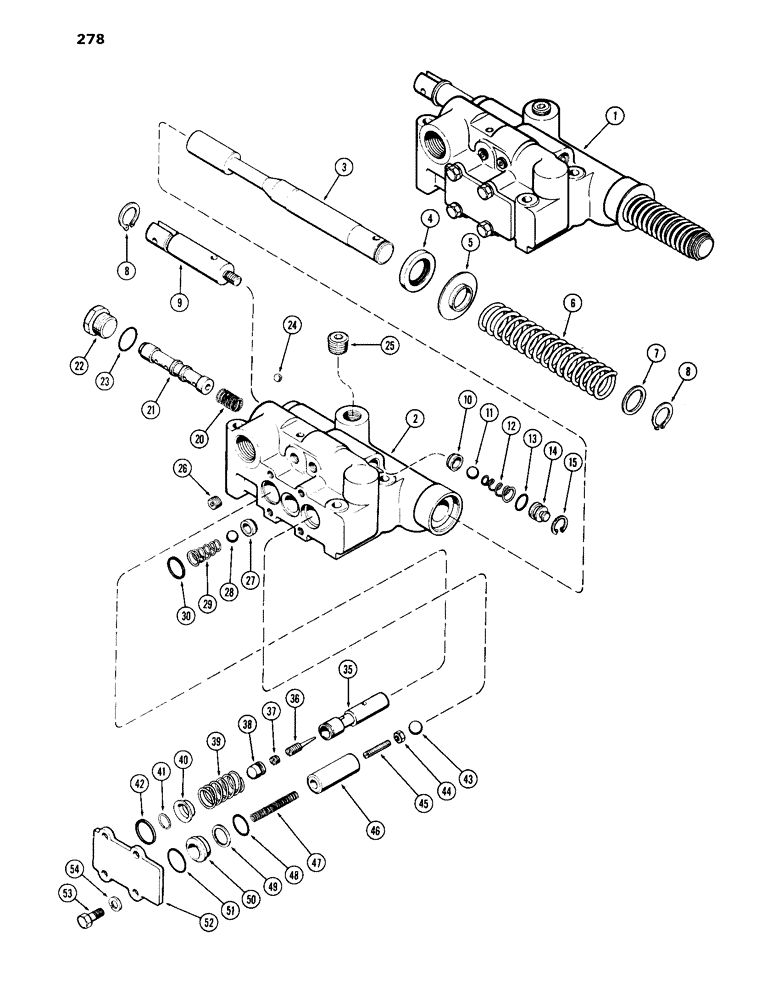

Запчасти Case IH 870 (278) - A59600 VALVE (08) - HYDRAULICS

1

A59600

VALVE

ASSY. - draft control (includes ref. 2 - 54)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - depth control valve (Order A59600)

1шт.

3

A58363

SPOOL

- depth control valve

1шт.

4

A11507

OIL SEAL

- oil, spool (7/8 x 1-3/8 x 1/4")

1шт.

Included w/ SEAL KIT, A43518

1шт.

5

A58364

SUPPORT

- control valve spring

1шт.

6

A58366

SPRING

- spool return (6-23/64" free length) (1-5/32" O.D.)

1шт.

7

A58365

WASHER

- control valve spring

1шт.

8

A35094

SNAP RING,#81, Ext

RING, snap, , spool #81, Ext

2шт.

9

A32981

END - valve spool

1шт.

10

L10120

SEAT

- ball, check valve

1шт.

11

211-12

BALL,7/16 Dia

- check valve (7/16" diameter)

1шт.

12

A35099

SPRING

- check valve (1-1/4" free length) (5/8" O.D.)

1шт.

13

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - check valve plug (1/2 x 11/16 x 3/32")

1шт.

Included w/ SEAL KIT, A43518

1шт.

14

A35693

PLUG

- check valve

1шт.

15

A35694

SNAP RING,0.688", Int, #68

RING, snap, , plug 0.688", Int, #68

1шт.

20

A35700

SPRING

- flow control (1-25/64" free length) (9/16" O.D.)

1шт.

21

A32984

PISTON

- flow control

1шт.

22

A34215

PLUG

ASSY. - piston, flow control (includes ref. 23)

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

Included w/ SEAL KIT, A43518

1шт.

24

211-7

BALL,1/4" Dia

- steel, relief valve 1/4" Dia

1шт.

25

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, valve body (3/8" hex sckt. hd.)

1шт.

26

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, valve body (1/8" hex sckt. hd.)

2шт.

27

L10120

SEAT

- ball, check valve

1шт.

28

211-12

BALL,7/16 Dia

- check valve (7/16" diameter)

1шт.

29

A35099

SPRING

- check valve (1-1/4" free length) (5/8" O.D.)

1шт.

30

A35547

RING

QUAD RING - check valve

1шт.

Included w/ SEAL KIT, A43518

1шт.

35

A32982

PISTON

- trigger poppet

1шт.

36

A35784

VALVE

- needle, trigger poppet

1шт.

37

A35785

SET SCREW,5/16" - 18 x 1/4"

- lock, needle valve

1шт.

38

A35097

PLUG

- trigger valve cap

1шт.

39

A35691

SPRING

- trigger valve (1-5/8" free length) (7/8" O.D.)

1шт.

40

A35689

RETAINER

SEAT - pressure spring retainer

1шт.

41

A35690

RING

SNAP RING - retaining, seat

1шт.

42

A35548

RING

QUAD RING - trigger valve

1шт.

Included w/ SEAL KIT, A43518

1шт.

43

211-13

BALL,1/2" Dia

- steel, lowering poppet 1/2" Dia

1шт.

44

A35102

NUT

- lock, adjusting screw (#10-32 hex)

1шт.

45

A35101

SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5

- set, poppet adjusting

1шт.

46

A35695

PISTON

- lowering poppet

1шт.

47

A35103

SPRING

- lowering poppet (2-3/16" free length)

1шт.

48

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - sleeve (3/4 x 15/16 x 3/32")

1шт.

Included w/ SEAL KIT, A43518

1шт.

49

A35698

BACK-UP RING

WASHER - "O" ring back-up

1шт.

50

A35696

SLEEVE

- lowering poppet

1шт.

51

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" RING - lowering poppet (7/8 x 1-1/16 x 3/32")

1шт.

Included w/ SEAL KIT, A43518

1шт.

52

A35105

COVER

- valve

1шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Valve cover Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

54

92-5

LOCK WASHER,5/16"

4шт.

A43518

KIT

- seal, draft control valve (Replaces A42883) Includes: Ref. 4, 13, 23, 30, 42, 48 and 51

1шт.
