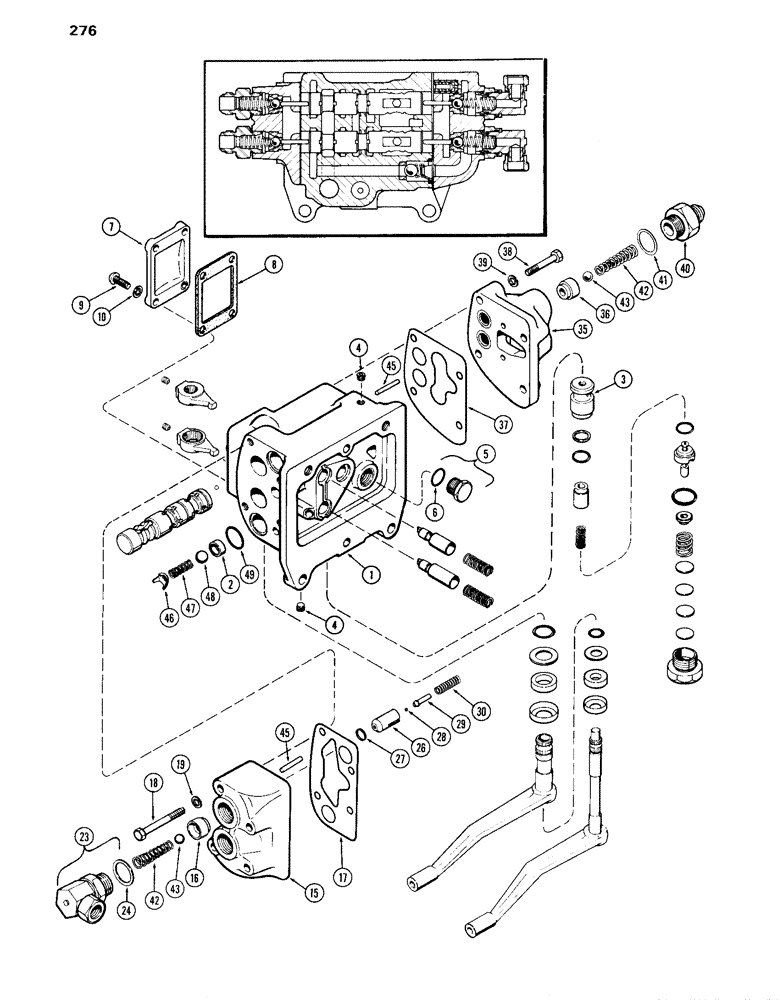

Запчасти Case IH 870 (276) - A42248 AUXILIARY VALVE, WITH 90 DEGREE OUTLET FITTINGS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A42248
VALVE
ASSY. - auxiliary (w/90 degree outlet fitting on R.H. side) (Order A45419 Figure 274) (includes ref. 1 - 49)
1шт.
1
A57534
BODY
ASSY. - valve (Order 1-A141405 body & 2-A66469 spools) (includes ref. 2, 3 & 4)
1шт.
2
NSS
NOT SOLD SEPARAT
SEAT - ball, check valve
4шт.
3
NSS
NOT SOLD SEPARAT
SLEEVE - relief valve pilot
1шт.
4
221-849
PLUG,Hex Soc, 1/8"-27
- pipe, 1/8" hex, sckt. hd.
4шт.
5
86512512
PLUG,7/8" - 14 ORB
Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB
1шт.
6
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 5/8 x 3/4 x 3/32"
1шт.
7
A57552
CAP
- valve body
1шт.
8
A76374
GASKET
- valve body cap (Replaces A30854)
1шт.
9
75-414
SCREW,Rd, 1/4" x 7/8"
- 1/4 x 7/8" N.C. rd. hd. mach.
4шт.
10
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
15
A57565
VALVE
HEAD ASSY. - valve, R.H. (includes ref. 16)
1шт.
16
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
17
A57561
GASKET
- head, R.H.
1шт.
18
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
18
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" N.C. hex
2шт.
19
92-6
LOCK WASHER,3/8"
4шт.
23
A57562
ADAPTER
ASSY. - swivel, R.H. (See Page 291B) (includes ref. 24)
2шт.
24
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4 x 59/64 x 1/8"
1шт.
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - 3/4 x 15/16 x 3/32"
1шт.
26
A62273
SEAT
- thermal valve (Order A137335)
2шт.
27
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
"O" RING - thermal valve, 3/8 x 9/16 x 3/32"
2шт.
28
211-3
BALL,1/8" Dia
- ., steel 1/8" Dia
2шт.
29
A62272
GUIDE
- ball, thermal valve (Order A137594)
2шт.
30
A57396
SPRING
- valve (1-7/64" free length, 21/64" dia.)
2шт.
35
A57564
VALVE
HEAD ASSY. - valve, L.H. (includes ref. 36)
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
37
A57560
GASKET
- valve head, L.H.
1шт.
38
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" N.C. hex
4шт.
39
92-6
LOCK WASHER,3/8"
4шт.
40
A57569
FITTING
- remote valve outlet (See Page 291 & 291B)
2шт.
41
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4 x 59/64 x 1/8"
2шт.
42
A30877
SPRING
- check valve
4шт.
43
211-13
BALL,1/2" Dia
- check valve 1/2" Dia
4шт.
45
A57559
SPOOL
- auxiliary
4шт.
46
A27364
GUIDE
- auxiliary ball check
4шт.
47
A27452
SPRING
- auxiliary valve (1-1/8" free length, 1/2" dia.)
4шт.
48
211-15
BALL,5/8" Dia
- ., steel 5/8" Dia
4шт.
49
A64434
O-RING,0.93" ID x 1.142" x 0.106"
"O" RING - 15/16 x 1-1/8 x 3/32" (Replaces A58602)
4шт.
Выбрано товаров: 39
