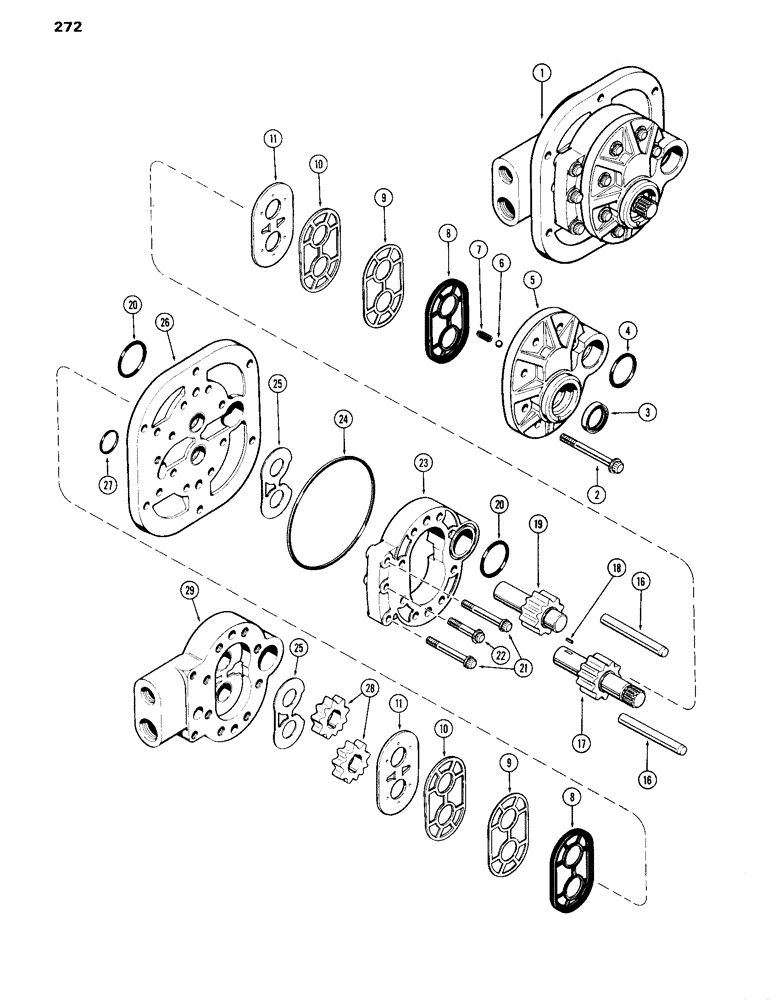

Запчасти Case IH 870 (272) - HYDRAULIC PUMP (08) - HYDRAULICS

1

A58299

PUMP, HYDRAULIC

PUMP ASSY. - hydraulic (Cessna #20904-0A) (Order A62051) (includes ref. 2 - 29)

1шт.

1

A62051

PUMP

PUMP ASSY. - hyd. (Cessna #29005-RAB) (Replaced A58299) (includes ref. 2 - 29)

1шт.

1

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - 3/8 x 3-1/4" N.C. flanged, 12 pt. (for A58299)

8шт.

2

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - 3/8 x 3-1/2" N.C. flanged, 12 pt. (for A62051)

8шт.

3

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

SEAL - pump, main drive shaft

1шт.

Included w/ REPAIR KIT, A42826

1шт.

4

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - suction port inlet tube (1-3/8 x 1-5/8 x 1/8")

1шт.

Included w/ REPAIR KIT, A42826

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - pump front shaft end (Order A62051)

1шт.

6

211-6

BALL,7/32" Dia

BALL, , steel - relief valve 7/32" Dia

1шт.

Included w/ REPAIR KIT, A42826

1шт.

7

F9883

SPRING

SPRING - pump check valve

1шт.

Included w/ REPAIR KIT, A42826

1шт.

8

A42174

SEAL

SEAL - pump diaphragm

2шт.

Included w/ REPAIR KIT, A42826

1шт.

9

A42305

GASKET

GASKET - pump gear cavity sealing (metal)

2шт.

Included w/ REPAIR KIT, A42826

1шт.

10

H260927

GASKET

GASKET - gear cavity sealing back-up

2шт.

Included w/ REPAIR KIT, A42826

1шт.

11

A42304

DIAPHRAGM

DIAPHRAGM - pump (metal)

2шт.

Included w/ REPAIR KIT, A42826

1шт.

16

NSS

NOT SOLD SEPARAT

DOWEL PIN - covers to body to flange (7/16 x 2-3/4")

2шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive, main shaft & pump (Order A62051)

1шт.

18

NSS

NOT SOLD SEPARAT

KEY - drive gear (1/8 x 3/16 x 3/8")

1шт.

Included w/ REPAIR KIT, A42826

1шт.

19

NSS

NOT SOLD SEPARAT

GEAR - idler, main shaft & pump (Order A62051)

1шт.

20

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - pump flange suction line (1-9/16 x 1-3/4 x 3/32") (Replaces A57390)

2шт.

Included w/ REPAIR KIT, A42826

1шт.

21

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - 12 pt. cap (5/16 - 18 x 2-1/2")

2шт.

22

166-29

12 PT SCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

SCREW - 12 point cap (5/16 - 18 x 1-3/4")

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - front pump (Order A62051)

1шт.

24

A42301

O-RING,5.250" x 5.375" x .062"

"O" RING - pump flange to cover gasket (5-1/4 x 5-3/8 x 1/16")

1шт.

Included w/ REPAIR KIT, A42826

1шт.

25

A43381

LARGE PLATE

PLATE, LARGE PLATE - pump thrust

2шт.

Included w/ REPAIR KIT, A42826

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE - pump (Order A62051)

1шт.

27

A42302

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

GASKET - pressure port

1шт.

Included w/ REPAIR KIT, A42826

1шт.

28

NSS

NOT SOLD SEPARAT

GEAR - rear pump displacement (Order A62051)

2шт.

29

NSS

NOT SOLD SEPARAT

COVER - pump end (Order A62051)

1шт.

CASA42826

KIT

- pump seal repair (not illust.), Includes: Ref. 3, 4, 6 - 11, 18, 20, 24, 25 and 27

1шт.
