Запчасти Case IH 870 (268) - TRANSMISSION REAR COVER AND HYDRAULICS, USED WITHOUT D.O.M. (08) - HYDRAULICS

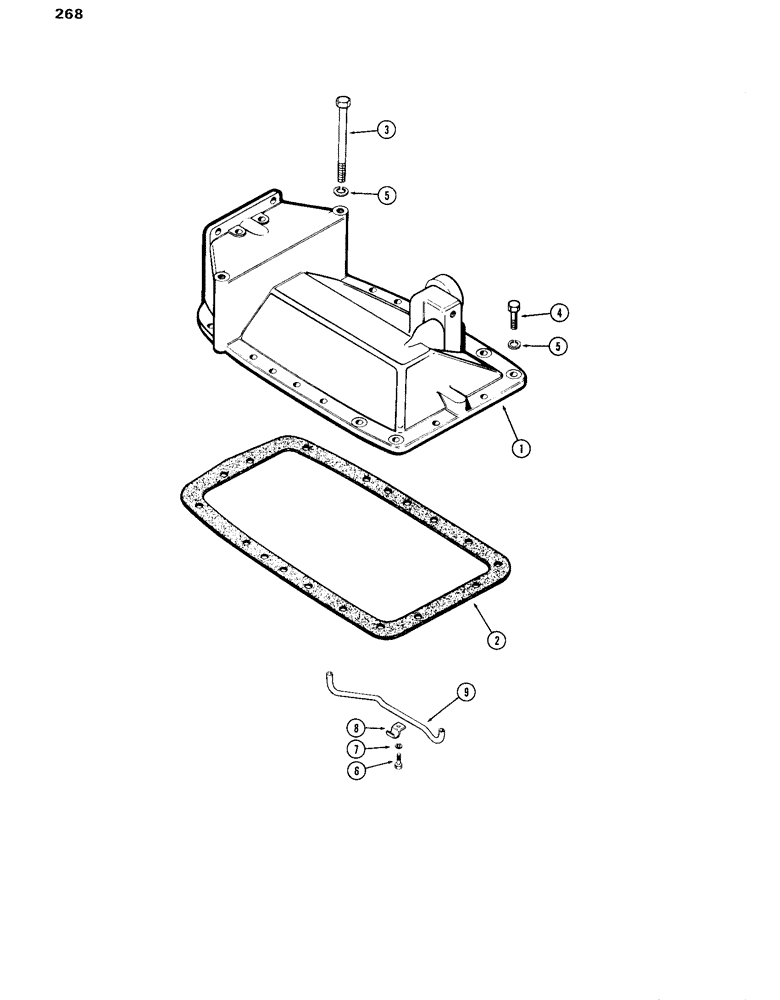

Схема запчастей Case IH 870 - (268) - TRANSMISSION REAR COVER AND HYDRAULICS, USED WITHOUT D.O.M. (08) - HYDRAULICS
5
3
2
6
5
9
7
1
8
4

Артикул

Название

Примечание

Количество

1

A60637

COVER - transmission, rear top

1шт.

2

A32299

GASKET

- trans. rear top cover

1шт.

3

15-8112

BOLT

- hex hd., cover to trans. (1/2 x 7" N.C.) (Grade 5)

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Cover to trans. Hex, 1/2"-13 x 1 1/2", G5, Full Thd

12шт.

5

92-8

LOCK WASHER,1/2"

14шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Clip Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

A33554

CLIP - auxiliary valve return tube

2шт.

9

A33521

PIPE CLAMP

TUBE - return, auxiliary valve

1шт.

Выбрано товаров: 9
