Запчасти Case IH 870 (262) - HYDRAULIC SYSTEM, POWER SHIFT AND MECHANICAL SHIFT (08) - HYDRAULICS

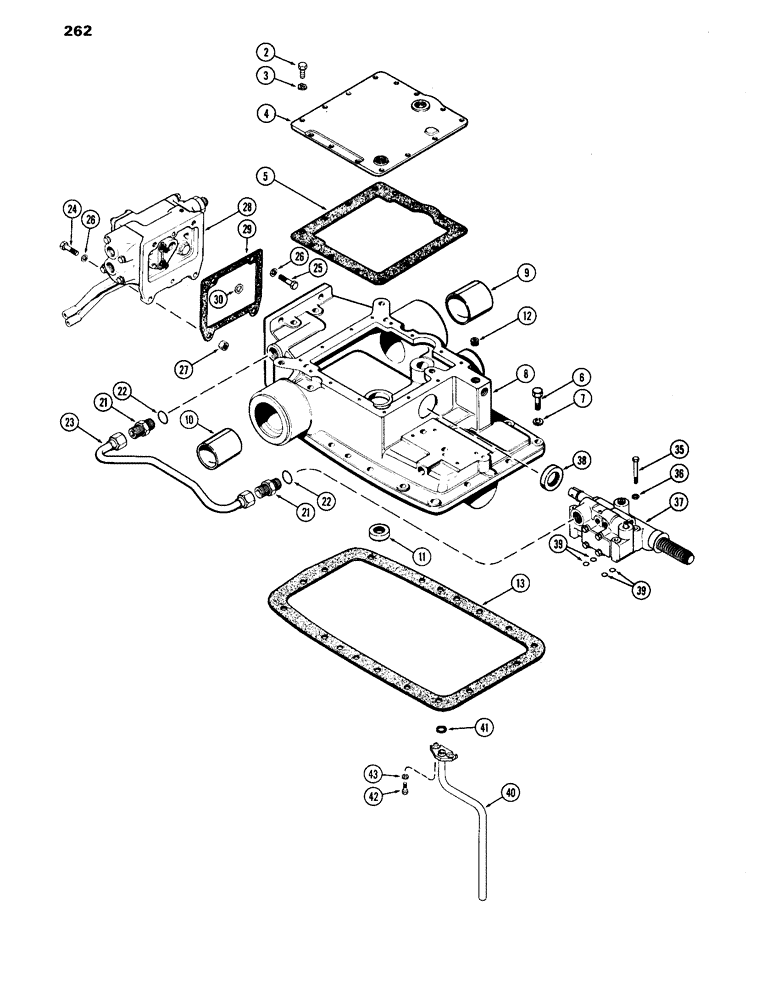

Схема запчастей Case IH 870 - (262) - HYDRAULIC SYSTEM, POWER SHIFT AND MECHANICAL SHIFT (08) - HYDRAULICS
39
40
10
5
13
36
41
4
24
11
28
21
29
6
35
2
12
25
3
39
23
26
7
22
27
37
9
8
22
43
26
21
30
42
38

Артикул

Название

Примечание

Количество

1

193-538

BOLT - hex hd. (5/16 x 1" N.C. sems)

10шт.

2

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex hd. (5/16 x 1-1/4" N.C. hex)

2шт.

3

193-45

WASHER,Ext-Int Tooth, 5/16"

- Shakeproof, 5/16" int./ext.

2шт.

4

A59598

COVER

- rockshaft housing

1шт.

5

A33383

GASKET

- rockshaft housing cover

1шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

6

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

6

15-8112

BOLT

- hex hd. (1/2 x 7" N.C.) (Grade 5)

2шт.

7

92-8

LOCK WASHER,1/2"

16шт.

8

A60639

HOUSING

ASSY. - rockshaft w/bushings (includes ref. 9 - 12)

1шт.

9

A32303

BUSHING,69.75mm ID x 74.73mm OD x 76.2mm L

- rockshaft hsg. (L.H.)(2-3/4 x 2-15/16 x 3")

1шт.

10

A32302

BUSHING,60.27mm ID x 65.2mm OD x 76.2mm L

- rockshaft hsg. (R.H.)(2-3/8 x 2-9/16 x 3")

1шт.

11

A12014

BUSHING

- signal shaft, upper (1-1/2 x 1-3/4 x 3/4")

1шт.

12

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

PLUG - pipe (3/8" hex socket head)

3шт.

13

A32299

GASKET

- rockshaft housing

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, w/"O" ring (3/4" tube O.D. x 1-1/16")

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

23

A59602

TUBE

- draft control valve to rockshaft hsg.

1шт.

24

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

25

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

26

92-8

LOCK WASHER,1/2"

4шт.

27

25-108

NUT,1/2"-13, G5

- hex, (1/2" N.C.)

2шт.

28

NSS

NOT SOLD SEPARAT

VALVE ASSY. - auxiliary (See Page 275)

1шт.

29

A32349

GASKET

- auxiliary valve

1шт.

30

A32348

GASKET,16.54mm ID x 23.29mm OD x 3.5mm Thk

- auxiliary valve

1шт.

35

13-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

35

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

1шт.

36

92-5

LOCK WASHER,5/16"

4шт.

37

A59600

VALVE

ASSY. - draft control (See Page 279 For Repairs)

1шт.

38

A32307

SEAL

- draft control valve to rockshaft hsg. (1-15/32 x 1-7/8 x 13/64")

1шт.

39

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - draft control valve to rockshaft hsg. (1/2 x 11/16 x 3/32")

4шт.

40

A58371

TUBE

- hydraulic fluid return

1шт.

41

A32343

SEAL

- tube, 47/64 x 1-13/64 x 13/64"

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

Выбрано товаров: 35
