Запчасти Case IH 870 (260) - DRAFT SENSING CONTROL (08) - HYDRAULICS

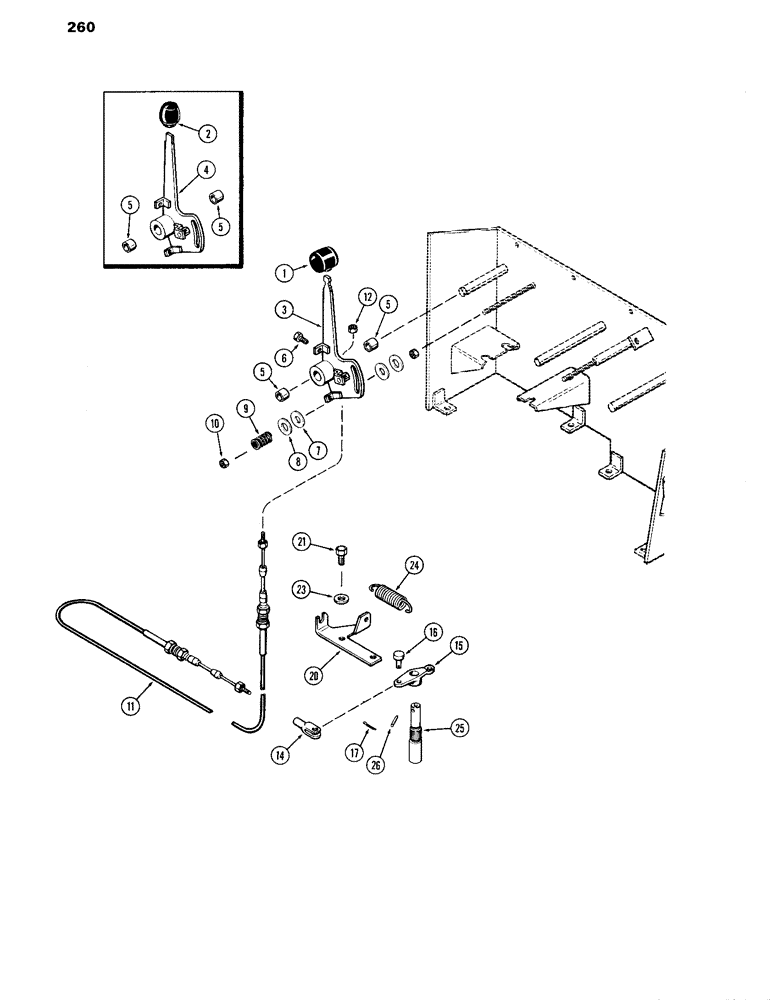

Схема запчастей Case IH 870 - (260) - DRAFT SENSING CONTROL (08) - HYDRAULICS
8
4
9
5
20
14
26
5
7
12
24
17
3
16
25
21
2
23
10
1
5
6
5
15
11

Артикул

Название

Примечание

Количество

1

A137806

KNOB

- lever (rubber)

1шт.

2

A65699

KNOB

- sensing hand lever (plastic)

1шт.

3

A137823

LEVER

ASSY. - draft sensing (Replaces A61076) (includes ref. 5)

1шт.

4

A61076

LEVER

ASSY. - draft sensing (Order A137823 lever & A137806 knob) (includes ref. 5)

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- hand lever, sensing

2шт.

6

A59463

BOLT

- 1/4 x 5/8" N.F. hex, Nylon

2шт.

7

A61069

DISC

- friction, sensing lever

2шт.

8

195-2035

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga.

3шт.

9

A62201

SPRING

- friction disc

1шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex, jam

2шт.

11

A59466

CABLE

- sensing control

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex, keps, w/ext. skpf. washer

1шт.

14

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - 3/16"

1шт.

15

A62176

LEVER

- sensing, lower

1шт.

16

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

17

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

A61064

BRACKET

- sensing cable, lower

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

23

195-21

WASHER,5/16"

- (5/16 x 7/8 x 1/16")

2шт.

24

A59470

SPRING

- sensing control

1шт.

25

A59599

SHAFT - manual control sensing

1шт.

26

138-2009

PIN,3/16" x 1", Coiled

1шт.

Выбрано товаров: 22
