(258) - REMOTE HYDRAULIC CONTROLS

Запчасти Case IH 870 (258) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

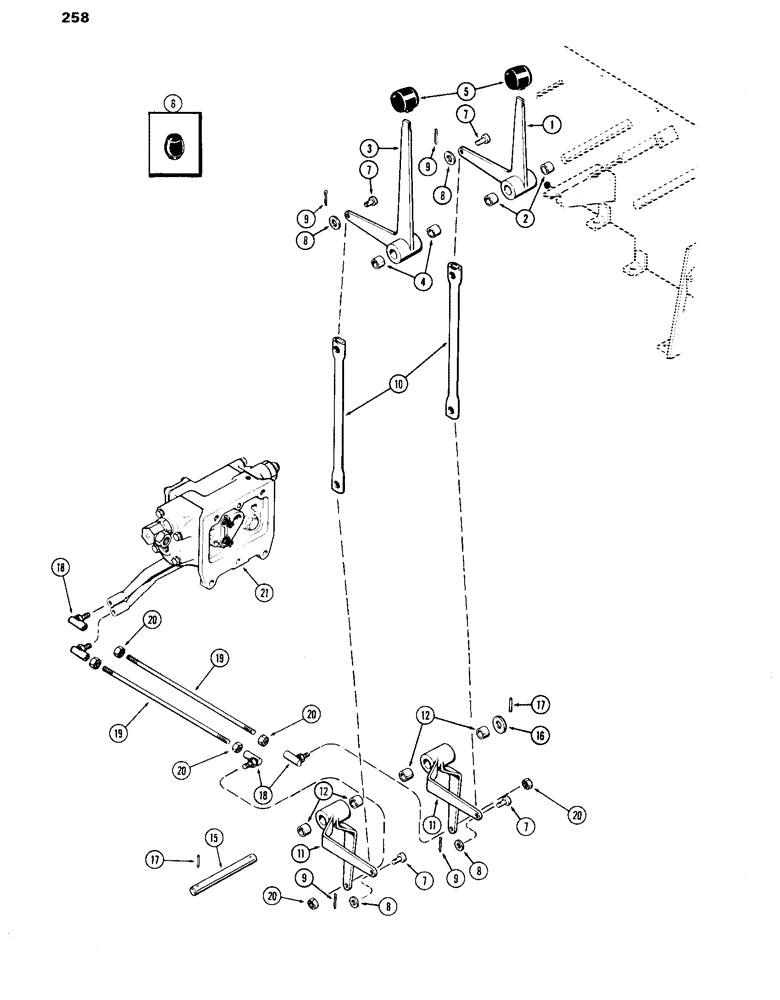

Схема запчастей Case IH 870 - (258) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS
1
5
18
17
8
9
11
6
20
7
10
7
8
12
6
18
19
9
20
8
4
12
3
20
17
21
19
9
15
7
20
16
9
11
7
20
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A63543

LEVER

ASSY. - remote, inner (Replaces A59525) (includes ref. 2)

1шт.

2

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

3

A63542

LEVER

ASSY. - remote, outer (Replaces A59523) (includes ref. 4)

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote levers

2шт.

5

A137806

KNOB

- remote levers (Rubber)

2шт.

6

A65699

KNOB

- remote levers (plastic)

3шт.

7

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

8

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

4шт.

9

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

10

A61660

LINK - remote levers, upper

2шт.

11

A59527

LEVER ASSY. - remote, bellcrank (includes ref. 12) (includes ref. 12)

2шт.

12

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote bellcrank lever

2шт.

15

A59529

SHAFT

- lever, remote bellcrank

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-62

LOCK PIN,1/8" x 1 1/8", Slotted

PIN, , Levers to shaft, shaft to frame 1/8" x 1 1/8", Slotted

2шт.

18

A60604

BALL JOINT

- remote lever lower rod (5/16")

4шт.

19

A59519

ROD

- remote lever, lower

2шт.

20

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

6шт.

21

NSS

NOT SOLD SEPARAT

VALVE ASSY. - dual remote (See Pages 275 - 277B)

1шт.
