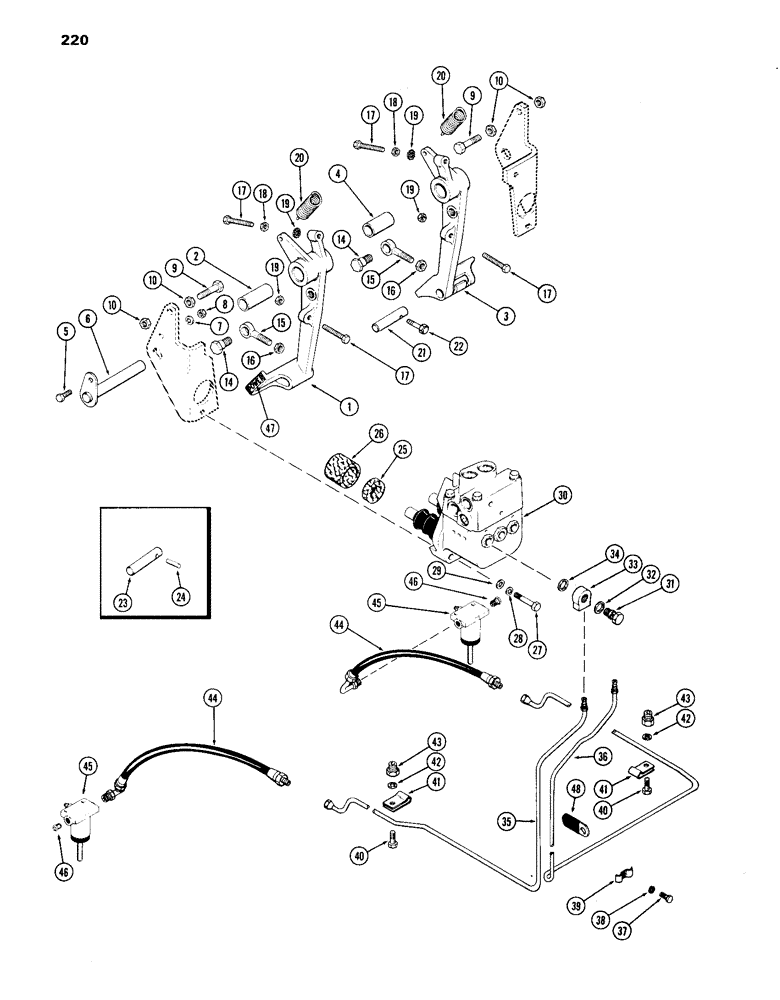

Запчасти Case IH 870 (220) - POWER BRAKE SYSTEM (07) - BRAKES

1

A59394

PEDAL ASSY. - brake (R.H.) (includes ref. 2)

1шт.

2

A59475

BUSHING

- brake pedal

1шт.

3

A59471

PEDAL ASSY. - brake (L.H.) (includes ref. 4)

1шт.

4

A59475

BUSHING

- brake pedal

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Pivot shaft Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

6

A59452

SHAFT

- pivot, brake pedal

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring (Used prior to tractor S/N 8693001) Hex, 3/8"-16 x 1 3/4", G5

2шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex (Used prior to trac. ser. no. 8693001)

4шт.

14

A59152

STEP BOLT

BOLT - shoulder, brake pedal to master cylinder

2шт.

15

A59538

BOLT

BOLT - eye, brake cylinder push rod

2шт.

16

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex jam

2шт.

17

A59472

BOLT

- 5/16 x 2-1/4" N.C. hex

4шт.

18

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

2шт.

19

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex (5/16" N.C. jam)

4шт.

20

A59470

SPRING

- return, brake pedal

2шт.

21

A65342

PIN

- brake pedal lock (w/threads)

1шт.

22

A65343

BOLT

- 5/16 x 1-1/2" N.C. hex (used w/A65342 pin)

1шт.

23

A59454

PIN

- brake pedal lock (w/o threads) (See Inset)

1шт.

24

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Used w/A59454 pin (see inset) 1/4" x 1 1/2", Slotted

1шт.

25

A61287

COLLAR

- air seal, inner

2шт.

26

A61288

COLLAR

- air seal, outer

2шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Valve to firewall Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(Used w/A62074 valve) Hex, 3/8"-16 x 2", G5

2шт.

27

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- (3/8 x 2-3/4" N.C. hex) (used w/A65055 valve)

2шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

95-6

WASHER,3/8"

- wrought (7/16 x 1 x 5/64")

3шт.

30

NSS

NOT SOLD SEPARAT

VALVE ASSY. - power brake (See Figures 224 thru 227E)

1шт.

31

A59477

STEP BOLT

BOLT - tube fitting connection

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, master cylinder (5/8 x 13/16 x 1/32")

2шт.

33

A18531

FITTING

- brake tube

2шт.

34

NLS

NO LONGER SERVICED

- inner, master cylinder (1/2 x 5/8 x 1/32")

2шт.

35

A59478

TUBE

- hydraulic, brake (R.H.)

1шт.

36

A59479

TUBE

- hydraulic, brake (L.H.)

1шт.

37

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to firewall Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

38

25-104

NUT,1/4"-20, G5

1шт.

39

A60556

CLAMP - hydraulic tube, brake

1шт.

40

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

41

A59793

CLIP - brake tubing

4шт.

42

95-4

WASHER,1/4"

- wrought (5/16 x 3/4 x 1/16")

4шт.

43

A59481

NUT

- blind fastener, brake tubing (in platform)

4шт.

44

A59483

HOSE

- brake

2шт.

45

A62483

CYLINDER

ASSY. - brake slave (7/8" diameter) (See Figure 228 For Repairs)

2шт.

46

222-1062

PLUG,7/16"-24, Inv Fl

- steel (1/4" tube O.D. x 7/16-24 straight thread)

2шт.

47

321-1623

DECAL

- power brake (R.H. side of brake pedals)

1шт.

48

A22880

CLIP

- L.H. brake tube to left front firewall to platform bolt

1шт.
