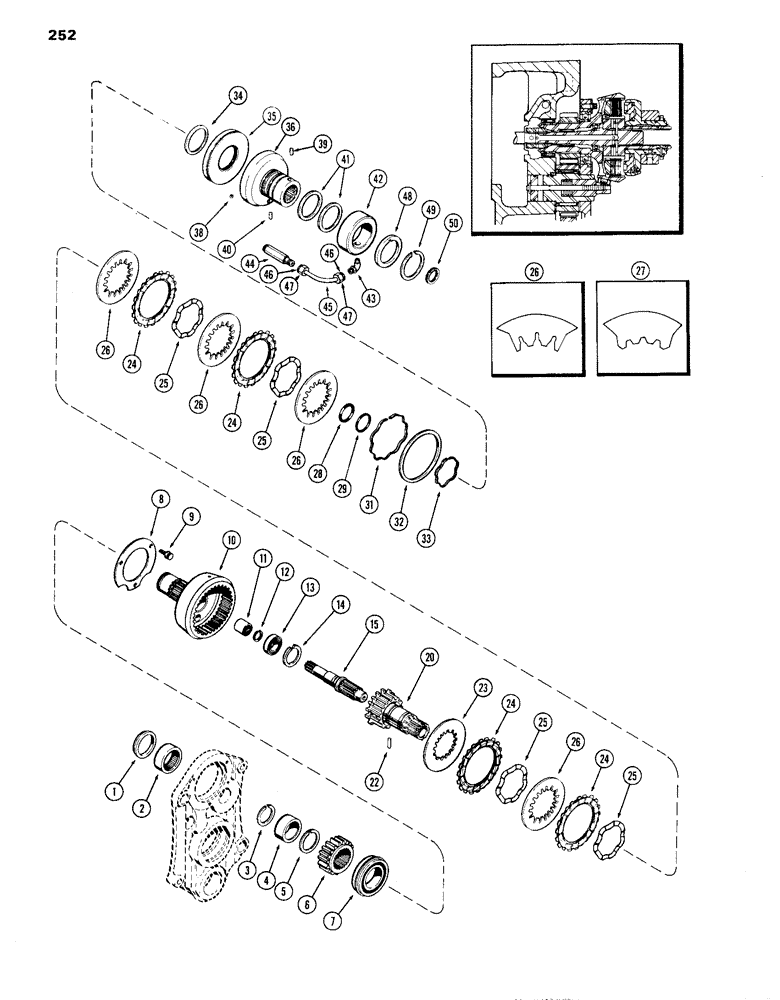

Запчасти Case IH 870 (252) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN

1

A33007

RING

- P.T.O. clutch drum oil restrictor

1шт.

2

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, P.T.O. clutch drum

1шт.

3

A33323

RING

SNAP RING - retaining, clutch drum bearing race

1шт.

4

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - inner, clutch drum needle bearing

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

- pinion retaining

1шт.

6

A32435

GEAR

PINION - P.T.O. driver

1шт.

7

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum, outer

1шт.

8

A59019

RING

- clamp, outer bearing retainer

1шт.

9

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - Ferry cap, ring clamp to brg. carrier (5/16" N.C. x 3/4")

3шт.

10

A62887

DRUM

- P.T.O. clutch and brake (Replaces A59017) (includes ref. 11)

1шт.

11

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

BEARING - needle, P.T.O. clutch drum

1шт.

12

A32438

SNAP RING

SNAP RING - bearing retainer, outer

1шт.

13

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum, inner

1шт.

14

A32439

RING

SNAP RING - bearing retainer, inner

1шт.

15

A59020

SHAFT

- drive, hydraulic pump

1шт.

20

A62192

HUB

- P.T.O. clutch

1шт.

22

138-58

LOCK PIN,1/8" x 13/16", Slotted

PIN, , clutch hub to pump drive shaft 1/8" x 13/16", Slotted

1шт.

23

A34570

LARGE PLATE

PLATE - backing, P.T.O. clutch

1шт.

24

A66364

PLATE

- drive, sintered, P.T.O. clutch (Replaces A59231)

4шт.

25

A59013

SPRING

- P.T.O. clutch separator

4шт.

26

A66365

PLATE

- driven, steel, P.T.O. clutch (Replaces A65425)

4шт.

27

A57170

BRAKE DISC

PLATE - driven, steel, P.T.O. clutch (Order A65425)

4шт.

28

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - P.T.O. clutch piston carrier (1-1/2" x 1-11/16" x 3/32")

1шт.

29

A62193

O-RING,1.424" ID x 1.63" OD

"O" RING - P.T.O. clutch piston carrier (1-7/16 x 1-5/8 x 3/32")

1шт.

31

A59012

SPRING

- expander, P.T.O. clutch piston

1шт.

32

A59011

RING

- seal, P.T.O. clutch piston

1шт.

33

A59010

SPRING

- expander, P.T.O. clutch piston

1шт.

34

A59009

RING

- sealing, P.T.O. clutch piston

1шт.

35

A59008

PISTON

- P.T.O. clutch

1шт.

36

A62200

CARRIER

- P.T.O. clutch piston

1шт.

38

211-6

BALL,7/32" Dia

- (chrome plate), clutch piston carrier 7/32" Dia

1шт.

39

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

PIN, grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

40

138-2044

PIN,1/16" x 1/2", Coiled

- Spirol roll, (1/16 x 1/2")

1шт.

41

A59005

SEAL

RING - seal, clutch piston carrier

2шт.

42

A59006

COLLAR

- P.T.O. clutch

1шт.

43

222-4047

ELBOW

- male, clutch feed tube (3/8" tube x 1/4" P.T.)

1шт.

44

A59015

CONNECTOR, ELEC

CONNECTOR - male, clutch feed tube (in P.T.O. housing)

1шт.

45

A62355

TUBE

- P.T.O. clutch feed (includes ref. 46 & 47)

1шт.

46

222-104

SLEEVE,3/8" Tube

- () 3/8" Tube

2шт.

47

222-114

NUT,5/8"-24

NUT - (3/8" tube)

2шт.

48

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

- retaining, P.T.O. clutch collar (Replaces A59007)

1шт.

49

A32300

SNAP RING,#225, 2.174", Ext

- P.T.O. clutch piston carrier

1шт.

50

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

- P.T.O. clutch piston carrier, external

1шт.
