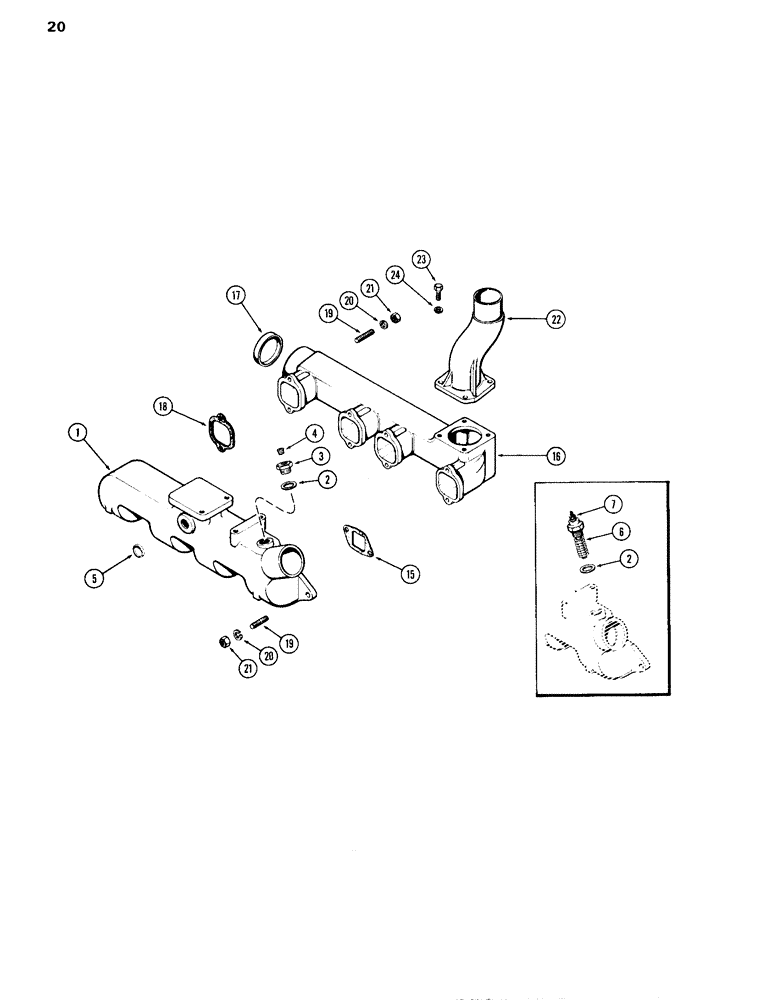

Запчасти Case IH 870 (020) - MANIFOLDS, (336B) DIESEL ENGINE (02) - ENGINE

1

A66089

MANIFOLD

ASSY. - intake (Replaces A61003) (includes ref. 2 - 5)

1шт.

2

A20916

MANIFOLD GASKET

GASKET - manifold heater hole plug

1шт.

3

L10283

PLUG

- manifold heater hole

1шт.

4

221-1849

PLUG

- 1/8" P.T. hex sckt. hd.

1шт.

5

41-1020

PLUG,Cup, 1 1/4"

- intake manifold

1шт.

6

A37775

HEATER

ASSY. - intake manifold (12v.) (used prior to engine ser. no. 2530834)

1шт.

7

129-503

NUT,1/4"-20, Brass

1шт.

15

A58662

MANIFOLD GASKET

- intake manifold

4шт.

16

A58749

MANIFOLD

ASSY. - exhaust

1шт.

17

A58750

PLUG,Cup, 3 1/4", Stainless

- (3-1/4" cup type)

1шт.

18

A58666

MANIFOLD GASKET

- exhaust manifold

4шт.

19

A59077

STUD

- manifolds (3/8" N.C. x 1-3/4")

16шт.

20

92-6

LOCK WASHER,3/8"

16шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex) (intake manifold)

8шт.

21

131-903

NUT,3/8"-16

NUT - (3/8" N.C. seez-pruf) (exhaust manifold)

8шт.

22

A59076

PIPE, EXHAUST SYSTEM

STACK - exhaust manifold

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

24

92-6

LOCK WASHER,3/8"

4шт.
