Запчасти Case IH 870 (246) - P.T.O. CONTROL LINKAGE, WITH POSITIVE ON-OFF (06) - POWER TRAIN

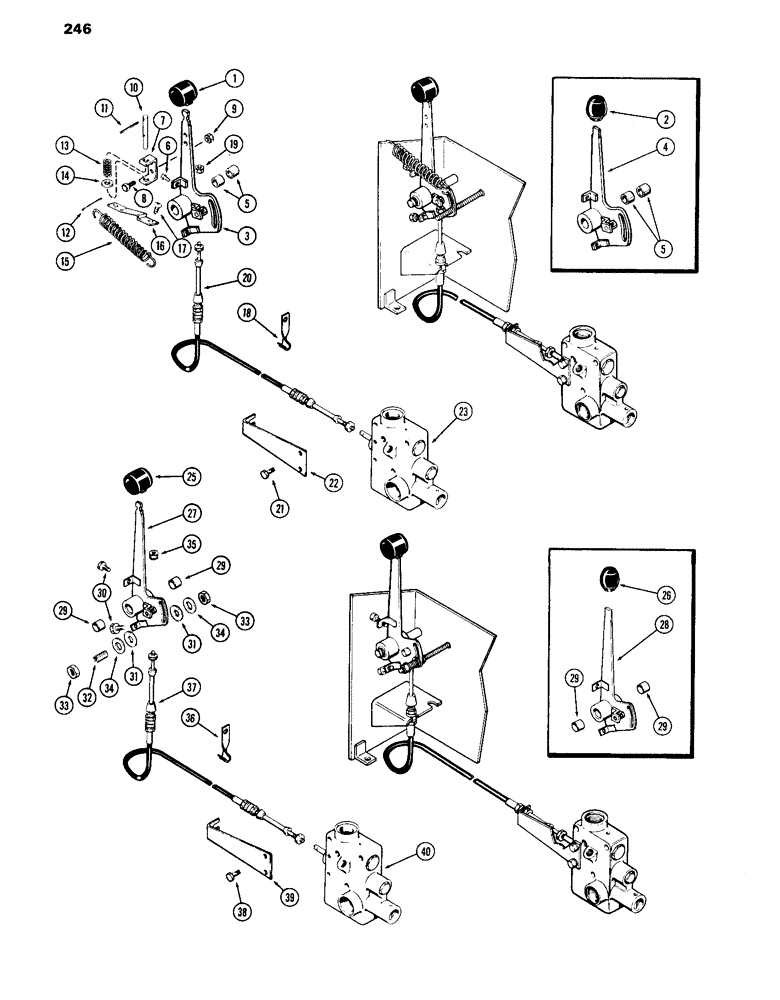

Схема запчастей Case IH 870 - (246) - P.T.O. CONTROL LINKAGE, WITH POSITIVE ON-OFF (06) - POWER TRAIN
23
40
25
30
8
22
35
5
37
26
34
3
20
39
5
36
29
38
7
21
9
16
4
14
31
6
34
17
19
32
31
33
13
29
12
18
2
17
29
28
27
10
33
1
29
15

Артикул

Название

Примечание

Количество

1

A137806

KNOB

P.T.O. hand lever (rubber)

1шт.

2

A65699

KNOB

- P.T.O. hand lever (plastic)

1шт.

3

A137817

LEVER

ASSY. - P.T.O. hand (Replaces A65574)

1шт.

4

A65574

LEVER

ASSY. - P.T.O. hand (Order A137817 lever & A137806 knob) (includes ref. 5)

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A59463

BOLT

- 1/4 x 5/8" N.C. hex, nylon

2шт.

A65481

KIT

- positive On & Off (includes ref. 7 - 17)

1шт.

7

A65478

BRACKET

- hand lever

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A65479

PIN

- hand lever

1шт.

11

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

12

138-321

LOCK PIN,3/16" x 2", Slotted

PIN, 3/16" x 2", Slotted

1шт.

13

A137733

SPRING

- pin

1шт.

14

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

1шт.

15

A35789

SPRING

- return

1шт.

16

A66387

LOCK

- lever position

1шт.

17

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" truss hd. self-tapping

2шт.

18

A59467

CLIP - cable

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex keps., w/ext. skpf. washer

1шт.

20

A59466

CABLE

- P.T.O. control

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

A60267

BRACKET

- P.T.O. cable

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE ASSY. - flow divider & P.T.O. control (See Figure 270)

1шт.

25

A137806

KNOB

- P.T.O. hand lever (rubber) w/o positive on - off

1шт.

26

A65699

KNOB

- P.T.O. hand lever (plastic), w/o positive on - off

1шт.

27

A137817

LEVER

ASSY. - P.T.O. hand (Replaces A65574), w/o positive on - off

1шт.

28

A65574

LEVER

ASSY. - P.T.O. hand (Order A137817 lever & A137806 knob), w/o posiitive on - off (includes ref. 29)

1шт.

29

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, w/o positive on - off

2шт.

30

A59463

BOLT

- 1/4 x 5/8" N.C. hex, Nylon, w/o positive on - off

2шт.

31

A61069

DISC

- friction, 25/64 x 1-1/4 x 1/8", w/o positive on - off

2шт.

32

A65583

SPRING

- compression friction disc, w/o positive on - off

1шт.

33

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex, top face lock, w/o positive on - off

2шт.

34

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga, w/o postitive on - off

2шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex, keps w/ext. skpf. washer, w/o postitive on - off

1шт.

36

A59467

CLIP - cable, w/o positive on - off

1шт.

37

A59466

CABLE

- P.T.O. control, w/o positive on - off

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

w/o positive on - off Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

39

A60267

BRACKET

- P.T.O. cable, w/o positive on - off

1шт.

40

NSS

NOT SOLD SEPARAT

VALVE ASSY. - flow divider & P.T.O. control (See Figure 270), w/o positive on - off

1шт.

Выбрано товаров: 40
