Запчасти Case IH 870 (214) - PARKING BRAKE (06) - POWER TRAIN

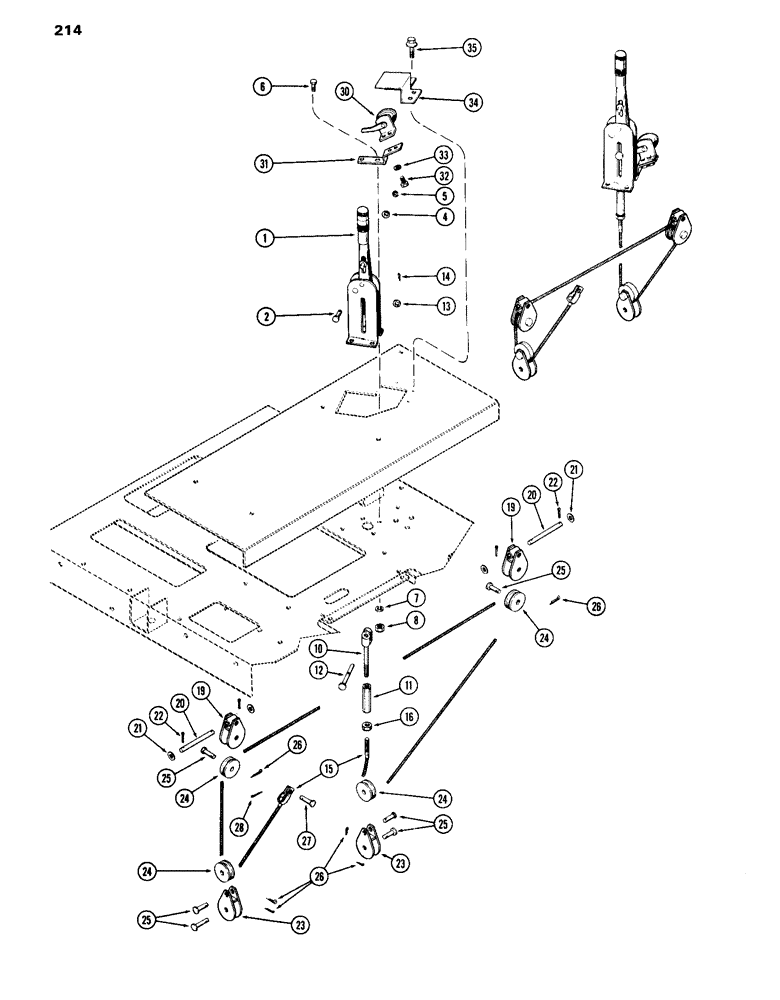

Схема запчастей Case IH 870 - (214) - PARKING BRAKE (06) - POWER TRAIN
35
1
25
13
21
25
19
24
2
23
27
5
31
24
16
20
8
20
14
4
34
33
28
24
25
23
26
26
21
22
6
22
19
26
7
12
10
15
32
24
25
11

Артикул

Название

Примечание

Количество

1

A59410

LEVER

ASSY. - hand brake (includes ref. 2, 4 & 5)

1шт.

2

A42204

PIN

- hand brake lever

1шт.

A55934

WASHER

- (21/64 x 29/64 x 1/100") (Conical spring) (Not Illust.)

1шт.

4

195-521

WASHER,5/16", SAE

- (11/32 x 11/16" x 16 ga.)

1шт.

5

C14652

RING

- retaining, hand brake lever pin

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex)

3шт.

10

A59411

ROD

END - rod

1шт.

11

A59412

TURNBUCKLE

1шт.

12

A76379

PIN

- clevis, brake lever (Replaces A59153)

1шт.

13

195-21

WASHER,5/16"

- (5/16 x 7/8 x 1/16")

2шт.

14

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

1шт.

15

A59420

CABLE

- parking brake

1шт.

16

25-1145

NUT - (5/16" N.C. jam)

1шт.

19

A62258

SUPPORT

- pulley, park brake

2шт.

20

A62262

PIN

- pulley support

2шт.

21

195-21

WASHER,5/16"

- (5/16 x 7/8 x 1/16")

4шт.

22

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

4шт.

23

A62260

SUPPORT

- pulley, park brake

2шт.

24

A59416

SHEAVE

PULLEY - parking brake cable

4шт.

25

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, parking brake pulley & cable

6шт.

26

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

6шт.

27

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis (3/16 x 37/64")

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

30

A33977

SWITCH

- brake light

1шт.

31

A60542

BRACKET - brake light switch

1шт.

32

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- (#10 x 3/8" N.F. rd. hd. mach.)

2шт.

33

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

34

A59421

COVER

- parking brake light switch

1шт.

35

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - (#10 x 1/2" truss hd., self-tapping)

3шт.

Выбрано товаров: 31
