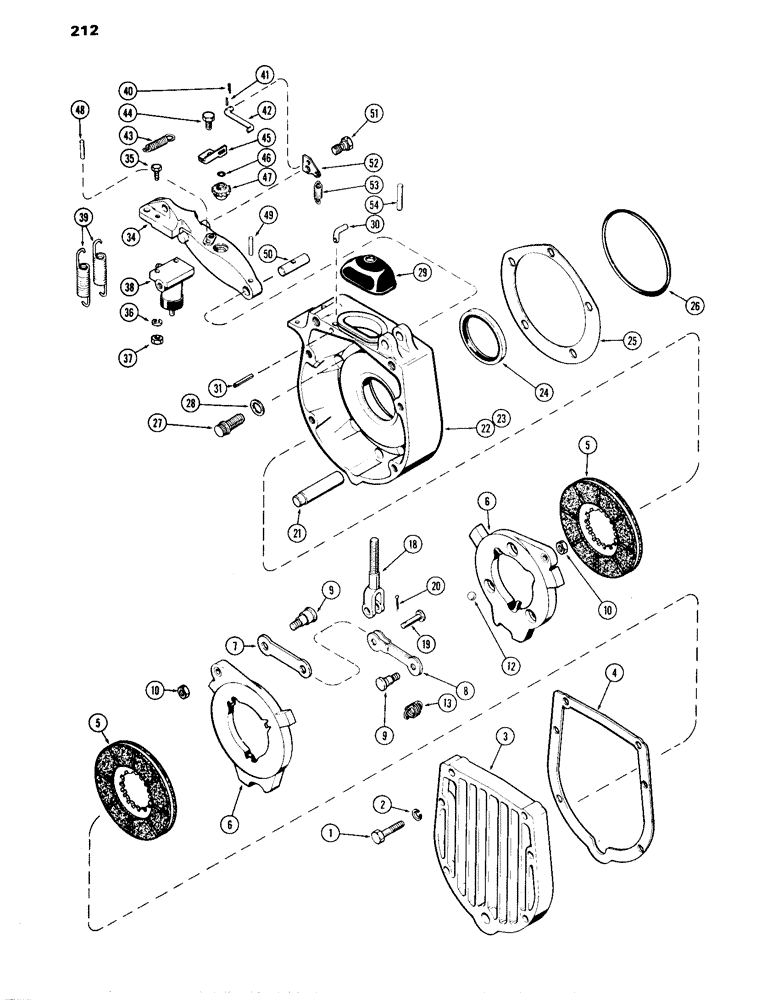

Запчасти Case IH 870 (212) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

1

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- (1/2 x 2-1/2" N.C. hex)

12шт.

2

92-8

LOCK WASHER,1/2"

12шт.

3

A58461

COVER

- differential brake

2шт.

4

A59088

SHIM,.1196" Thk

Differential brake cover (.1266/.1126") .1196" Thk

4шт.

5

A65336

DISC

ASSY. - brake, w/bonded lining (Replaced A58474)

4шт.

5

A44062

DISC

ASSY. - brake, w/metallic lining (Riceland Only) (Can use A65189)

4шт.

6

A41860

DISC

- brake actuating

4шт.

7

A41861

LINK

- actuating disc, single

2шт.

8

A41862

LINK

- actuating disc, dual

2шт.

9

A41865

BOLT

BOLT - actuating disc

4шт.

10

A42801

JAM NUT

- hex (1/2" N.F. jam) (special)

4шт.

12

A42043

BALL

- actuating (1" dia.)

10шт.

13

A41864

SPRING

- disc tension

6шт.

18

A58021

ROD

- differential brake

2шт.

19

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, yoke end (5/8 x 1-29/64")

2шт.

20

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , Clevis pin 1/8" x 1"

2шт.

21

A58449

PIN

- anchor, differential brake

2шт.

22

A58452

HOUSING ASSY. - differential brake w/seal (R.H.) (includes ref. 24)

1шт.

23

A58453

HOUSING ASSY. - differential brake w/seal (L.H.) (includes ref. 24)

1шт.

24

A57658

OIL SEAL

- oil, differential brake housing

1шт.

25

A60490

SHIM,.003" Thk

Differential brg. carrier .003" Thk

1шт.

25

A60491

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

25

A60492

SHIM,.010" Thk

Differential brg. carrier .010" Thk

1шт.

26

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

"O" RING - differential brake hsg. (6-1/4 x 6-1/2 x 1/8")

2шт.

27

A60495

LOCK BOLT

BOLT - (5/8 x 1-3/4" N.C. Ferry cap) (w/Jay-Lock)

4шт.

27

166-114

SCREW,Flg, 5/8" - 11 x 1 3/4"

BOLT - (5/8 x 1-3/4" N.C. Ferry cap) (w/o Jay-Lock)

6шт.

28

A64303

WASHER

- (41/64 x 1-1/16 x 1/16") (Replaces A29881)

10шт.

29

A27465

CAP

- dust, differential brake rod

2шт.

30

A59319

STUD

- spring hold-down

2шт.

31

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

A62923

LEVER

- actuating differential brake (Replaced A60695)

2шт.

35

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Slave cyl. to brake hsg. Hex, 1/4"-20 x 1 1/4", G5

4шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

37

25-104

NUT,1/4"-20, G5

4шт.

38

A62483

CYLINDER

ASSY. - brake slave (7/8" dia.) (See Figure 228 for Repairs)

2шт.

39

A35789

SPRING

- return, brake actuating lever (2-3/8" free length)

4шт.

40

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

41

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN, 5/64" x 1/2", Slotted

2шт.

42

A59607

ROD

- brake, self-adjusting

2шт.

43

A60555

SPRING

- self-adjusting brake rod (1-39/64" free length)

2шт.

44

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

Bracket to lever Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

45

A59609

BRACKET

- self-adjusting brake rod

2шт.

46

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - brake adjusting ratchet nut (3/8 x 9/16 x 3/32")

2шт.

47

A62230

NUT

- ratchet adjusting (20 teeth) (used w/hyd. brakes)

2шт.

47

A60488

NUT

- ratchet adjusting (16 teeth) (used w/power brakes)

2шт.

48

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

49

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, , Brake lever to brake pin 3/16" x 1 1/4", Slotted

2шт.

50

A62822

PIN

- differential brake lever (5/8 x 2-1/4")

2шт.

51

A58471

STEP BOLT

BOLT - shoulder, differential brake, self-adjusting

2шт.

52

A64490

CAM

- self-adjusting differential brake (Replaces A59606)

2шт.

53

A60489

SPRING

- self-adjuster cam to stud (1-23/32" free length)

2шт.

54

A61216

ROD

- spring, self-adjuster, Serial Range: cam-stud

2шт.
