Запчасти Case IH 870 (019A) - AIR CLEANER, (336B) DIESEL ENGINE (02) - ENGINE

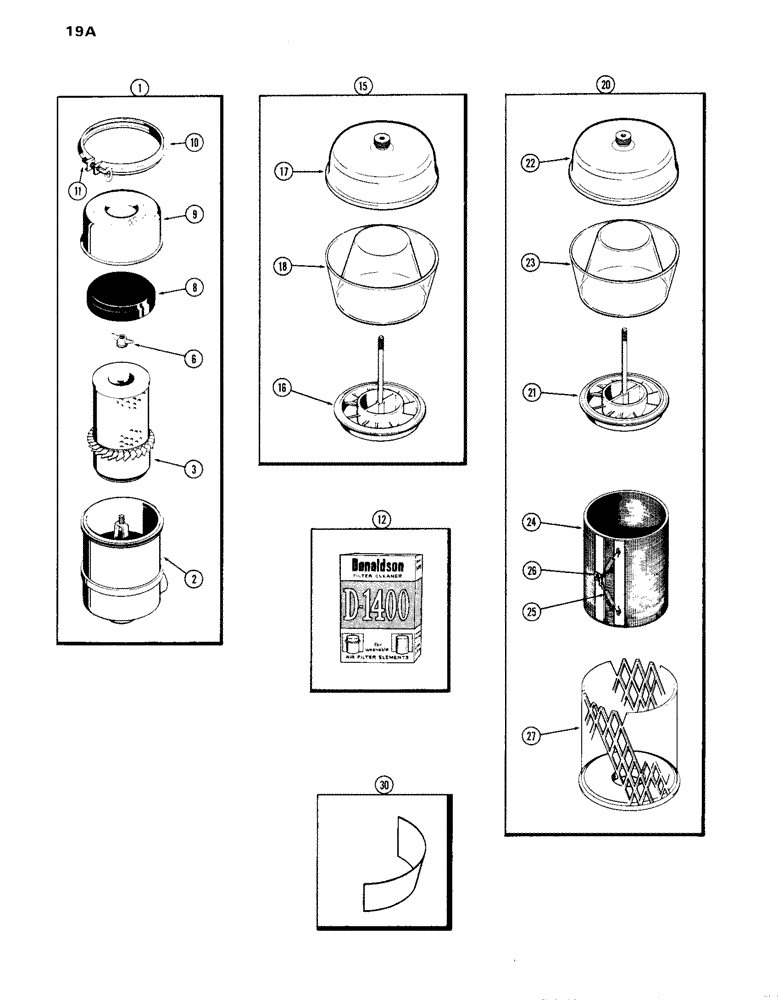

Схема запчастей Case IH 870 - (019A) - AIR CLEANER, (336B) DIESEL ENGINE (02) - ENGINE
24
26
22
20
23
1
25
12
17
6
18
11
27
3
2
10
8
30
9
16
15
21

Артикул

Название

Примечание

Количество

1

A59570

CLEANER

ASSY. - air (includes ref. 2, 3, 6, 8, 9, 10 & 11)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42224

ELEMENT

ASSY. - cleaner

1шт.

6

F91761

WING NUT

& WASHER ASSY.

1шт.

8

F22312

BAFFLE

- rubber

1шт.

9

F91760

CUP

- cleaner

1шт.

10

F84999

CLAMP,168.28mm

ASSY. - cleaner

1шт.

11

25-224

SQUARE NUT,Sq, 1/4"-20

- (1/4" N.C. hex)

1шт.

12

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

15

A64589

PRECLEANER

PRE-CLEANER ASSY. - (1st used trac. ser. no. 8693001) (includes ref. 16, 17 & 18)

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - adapter, pre-cleaner

1шт.

17

73187

COVER

- pre-cleaner

1шт.

18

73186

HOUSING

BODY - pre-cleaner

1шт.

20

A61273

CLEANER

PRE-CLEANER ASSY. (used prior to trac. ser. no. 8693001) (includes ref. 21 - 27)

1шт.

73184

CAMSHAFT

PRE-CLEANER

1шт.

21

NSS

NOT SOLD SEPARAT

SLEEVE - adapter, pre-cleaner

1шт.

22

73187

COVER

- pre-cleaner

1шт.

23

NLS

NO LONGER SERVICED

BODY - pre-cleaner

1шт.

24

F83644

SCREEN

pre-cleaner

1шт.

25

A22780

SPRING

pre-cleaner

2шт.

26

A22781

CLIP

pre-cleaner

1шт.

27

F83643

BODY, pre-cleaner

1шт.

30

321-2739

DECAL - heat protective, pre-cleaner bowl

1шт.

Выбрано товаров: 23
