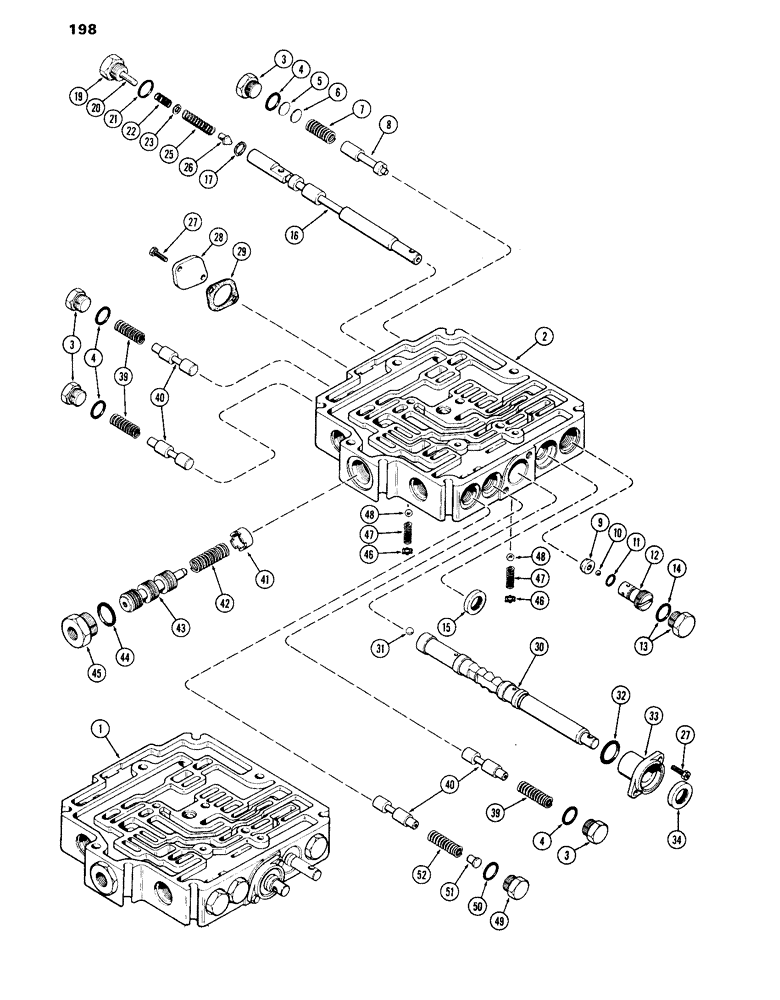

Запчасти Case IH 870 (198) - TRANSMISSION CONTROL VALVE, POWER SHIFT (06) - POWER TRAIN

1

A66708

VALVE

ASSY. - transmission control (Replaces A62634) (includes ref. 2 - 28)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - trans. control valve (Order A62634)

1шт.

3

A62564

PLUG

- pressure regulator

4шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulator adjustment (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulator adjustment (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

- compression, regulator (1-3/8" free length)

1шт.

8

A37551

PLUNGER

- pressure regulator

1шт.

9

A58441

SEAT

- ball, shuttle valve

1шт.

10

211-7

BALL,1/4" Dia

- shuttle valve ball seat 1/4" Dia

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - shuttle valve sleeve (3/32 x 1/2 x 11/16")

1шт.

12

A58440

SLEEVE

- shuttle valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

Shuttle valve bore, Incl. Ref. 14 Hex Hd, 7/8"-14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

15

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- clutch control spool

1шт.

16

A62636

SPOOL

- clutch control

1шт.

17

G46176

SNAP RING,#56, Ext

RING, snap, , clutch control spool #56, Ext

1шт.

A42887

KIT

- clutch modulator (Not Illust.) (includes ref. 19 - 26)

1шт.

19

A61985

PLUG

ASSY. - modulator (includes ref. 20 & 21)

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - spring guide

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

22

A61988

SPRING

- clutch modulator (.76" free length)

1шт.

23

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

A60155

SPRING

POINT & SPRING ASSY. - clutch modulator (Not Illust.) (includes ref. 25 & 26)

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - modulator, primary (1.61" free length)

1шт.

26

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

28

A58429

COVER

- selector spool

1шт.

27

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- cap, cover & sleeve to body (1/4 x 3/4" N.C. hex socket head)

4шт.

29

A66110

GASKET

- selector spool cover (Replaces A58427)

1шт.

30

A60550

SPOOL

ASSY. - selector (includes ref. 31)

1шт.

31

NSS

NOT SOLD SEPARAT

BALL - (9/32" dia.) (chrome steel) (Order A60550)

1шт.

32

A59066

O-RING,1.239" ID x 1.379" OD

"O" RING - selector spool sleeve (1-1/4 x 1-3/8 x 1/16")

1шт.

33

A62839

SLEEVE

- selector spool (Replaced A58426)

1шт.

34

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- oil, selector spool

1шт.

39

A58271

SPRING

- compression, spool return (1-49/64" free length)

3шт.

40

A59063

SPOOL

- pilot

4шт.

41

A62838

SLEEVE

- reverse lock-out spool (Replaces A61033)

1шт.

42

A58432

SPRING

- compression, reverse lock-out spool

1шт.

43

A61032

SPOOL

- reverse lock-out

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

45

A58434

BUSHING - boss reducer, reverse lock-out spool

1шт.

46

A58439

RETAINER

- retard check spring

2шт.

47

A58438

SPRING

- compression, retard check (15/16" free length)

2шт.

48

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

49

A62641

PLUG

- pilot spool bore

1шт.

51

A62640

STOP

- (C-4) pilot spool

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

Included w/ SEAL KIT, A42399

1шт.

52

A66692

SPRING

- (C-4) pilot spool return, 1-3/4" free length (Replaces A62639)

1шт.

A42885

SEAL KIT

- seal (Incl. Items 4, 11, 14, 15, 21, 29, 32, 34, 44 & 50)

1шт.

A42887

KIT

- clutch modulator (Incl. Items 19, 22, 23 & 26)

1шт.
