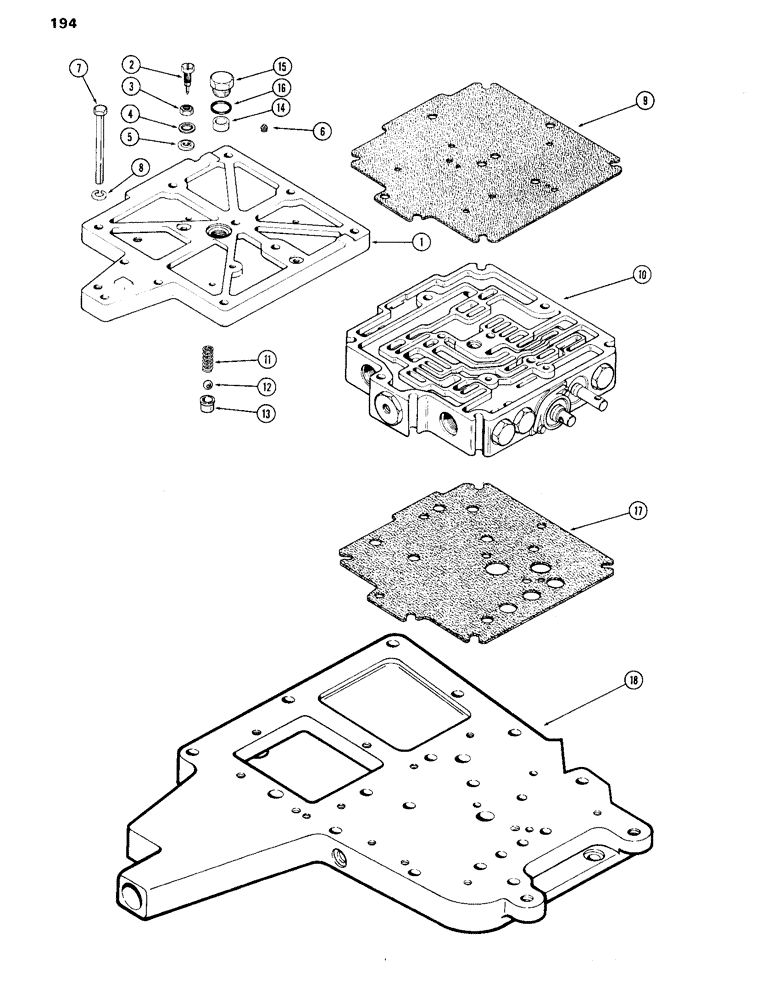

Запчасти Case IH 870 (194) - TRANSMISSION COVER AND CONTROL VALVE, POWER SHIFT (06) - POWER TRAIN

1

A62105

COVER - control valve

1шт.

2

A136916

NEEDLE

- retard orifice (Replaces A59073)

2шт.

3

25-154

JAM NUT,Jam, 1/4"-28, G5

- 1/4" N.F. hex, jam

2шт.

4

A59074

SEAL

- retard needle

2шт.

5

122-13

GROMMET

WASHER - riveting, 1/4" steel

2шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe

5шт.

7

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. rd. hd.

10шт.

8

92-6

LOCK WASHER,3/8"

10шт.

9

A66734

GASKET

- cover (Replaces A62270 & A66108)

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE ASSY. - trans. control valve (See Pg. 199 for repairs)

1шт.

11

A61696

SPRING

- trans. control valve detent ball

1шт.

12

211-12

BALL,7/16 Dia

- detent (7/16" diameter)

1шт.

13

A59062

SLEEVE

- valve body detent

1шт.

14

A62107

SPACER

- detent plug

1шт.

15

A62588

PLUG

- detent

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 1/2 x 21/32 x 3/32"

1шт.

17

A66735

GASKET

- valve to trans. cover (Replaces A66109)

1шт.

18

A62638

COVER - trans. front top

1шт.
