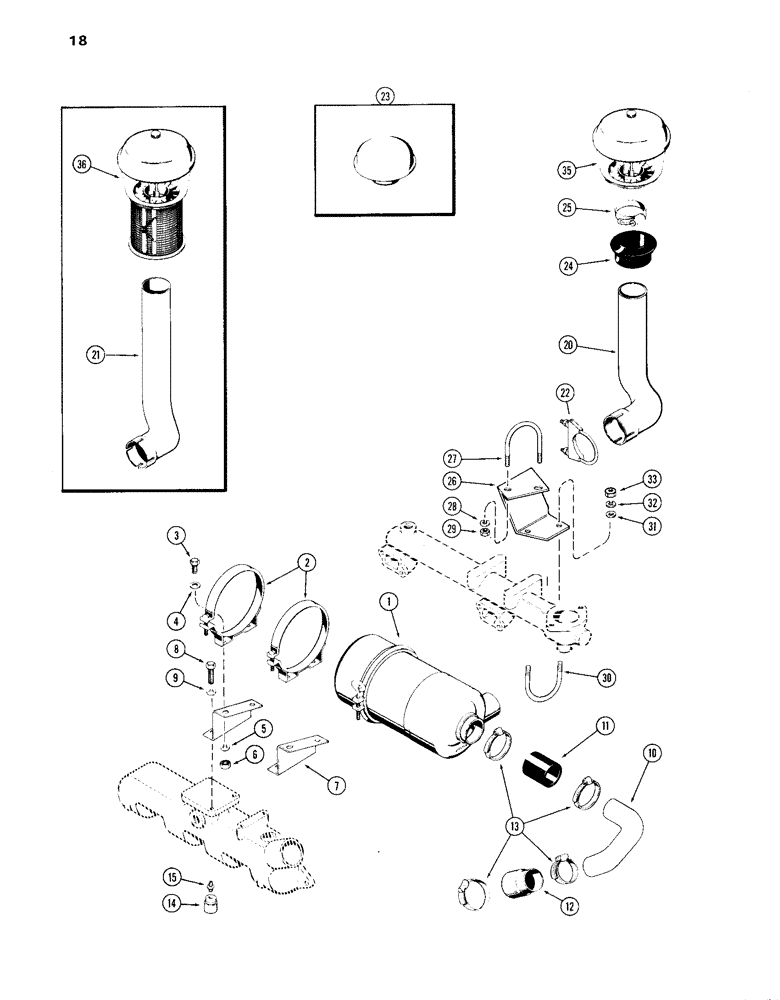

Запчасти Case IH 870 (018) - AIR INDUCTION SYSTEM, (336B) DIESEL ENGINE (02) - ENGINE

1

A59570

CLEANER

ASSY. - air (See Figure 19A)

1шт.

2

L11247

BAND

S - air cleaner mounting

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

4

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

7

A59209

BRACKET

- air cleaner mounting

2шт.

8

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

A59565

TUBE

- air cleaner to intake manifold

1шт.

11

A59566

HOSE - air intake tube

1шт.

12

A59567

REDUCER

HOSE - outlet, Serial Range: tube-manifold

1шт.

13

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

4шт.

14

A62574

INDICATOR

- air restriction

1шт.

15

D36264

FITTING

FILTER - safety

1шт.

20

A64588

TUBE - air cleaner intake (1st used trac. ser. no. 8693001)

1шт.

21

A59557

TUBE - air cleaner intake (Used prior to trac. ser. no. 8693001)

1шт.

22

A13240

CLAMP,2-5/8" ID

- air cleaner intake tube (Replaces A62124)

1шт.

23

A61276

AIR CLEANER

CAP - air stack

1шт.

24

A59558

GROMMET - air cleaner intake tube

1шт.

25

214-42

CLAMP

- air cleaner tube grommet

1шт.

26

A62752

SUPPORT - air cleaner tube

1шт.

27

A62753

U-BOLT

"U" BOLT - air cleaner tube support

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

30

A62664

"U" BOLT - air cleaner tube

1шт.

31

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

35

A64589

PRECLEANER

PRE-CLEANER ASSY. - (1st used trac. ser. no. 8693001) (See Figure19A)

1шт.

36

A61273

CLEANER

PRE-CLEANER ASSY. - pre-screener (Used prior to trac. ser. no. 8693001) (See Figure19A)

1шт.
