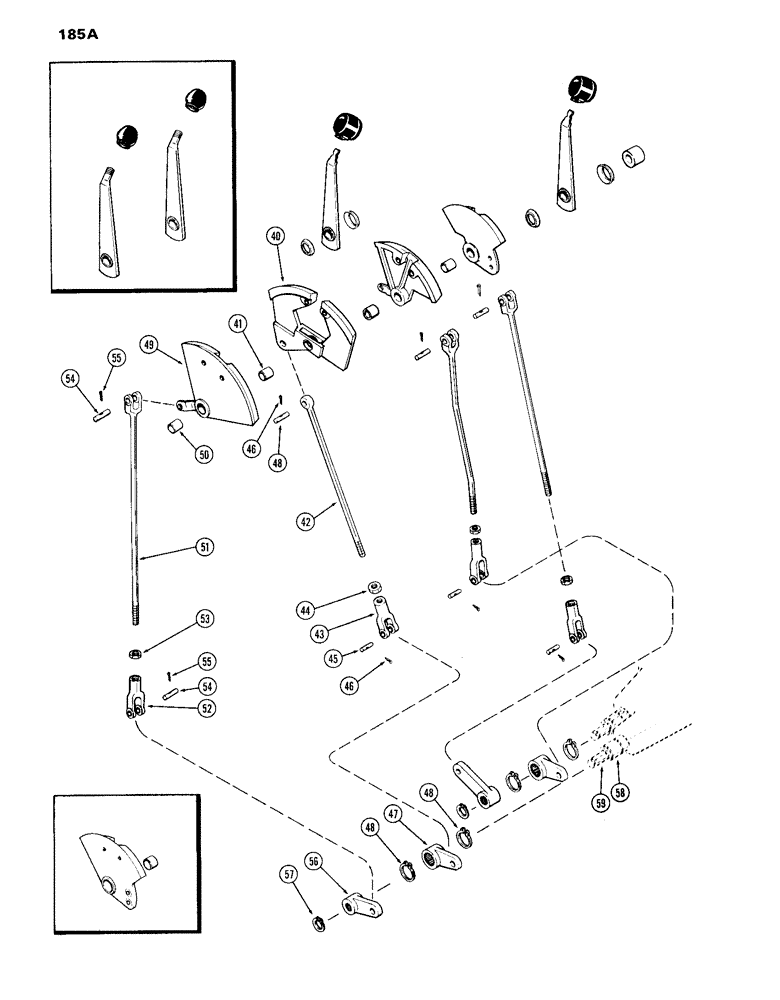

Запчасти Case IH 870 (185A) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

40

A61869

QUADRANT

ASSY. - gear shift (1st & 2nd) (includes ref. 41)

1шт.

41

A61871

BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L

- quadrant

1шт.

42

A60368

ROD - gear shift (15") (1st & 2nd)

1шт.

43

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift

1шт.

44

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

45

A59258

PIN

- gear shift linkage

2шт.

46

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

47

A64936

LEVER

- shift, 1st & 2nd (Replaces A60369)

1шт.

48

B18208

SNAP RING,#100, Ext

lever #100, Ext

2шт.

49

A61864

QUADRANT

ASSY. - gear shift (3rd & 4th) (includes ref. 50)

1шт.

50

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

51

A59665

ROD

- gear shift (3rd & 4th)

1шт.

52

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift

1шт.

53

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

54

A59258

PIN

- gear shift linkage

2шт.

55

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

56

A60363

LEVER

- gear shift (3rd & 4th) (Order A64935)

1шт.

57

A59594

RING

- retaining, gear shift lever

1шт.

58

A58245

SHAFT

- external gear shift lever (See Figure 190)

1шт.

59

A59591

SHAFT

- control lever, internal gear shift (See Figure 190)

1шт.
