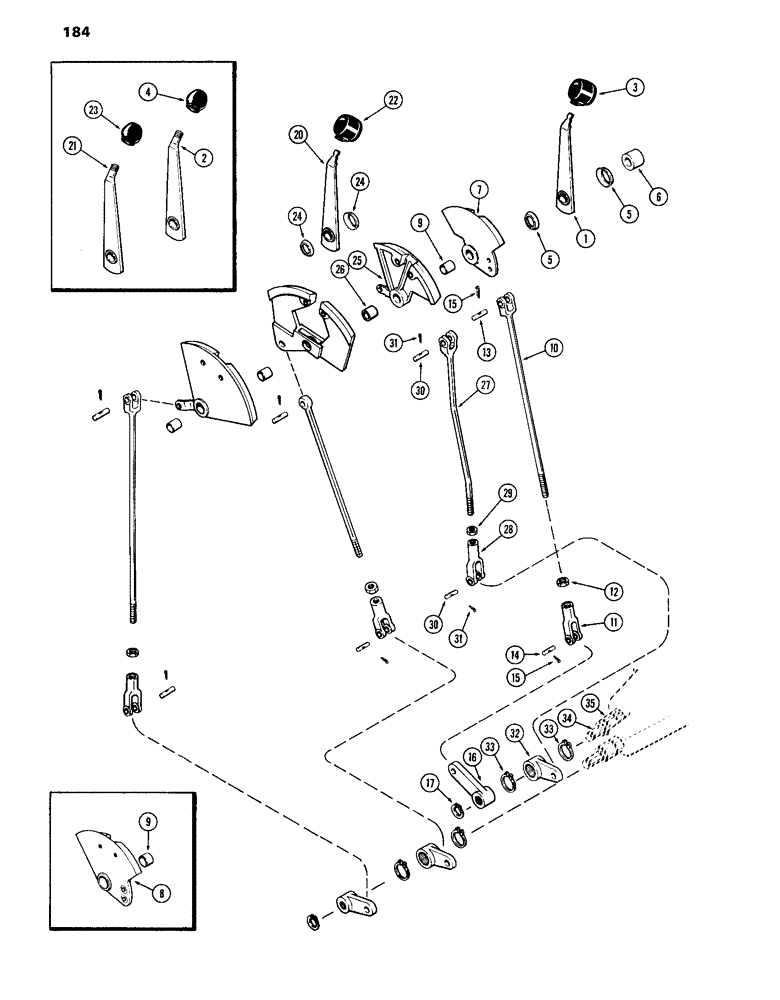

Запчасти Case IH 870 (184) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

1

A137815

LEVER

- hand, range shift

1шт.

2

A59661

LEVER

- hand, range shift (Order A137815 lever & A137806 knob)

1шт.

3

A137806

KNOB

- range shift lever (rubber)

1шт.

4

A65699

KNOB

- range shift (plastic)

1шт.

5

A59662

WASHER

- range shift hand lever

2шт.

6

A59664

SPACER

- range shift hand lever shaft

1шт.

7

A135383

QUADRANT

- range shift lever (1st used trac. ser. no. 8753836) (includes ref. 9)

1шт.

8

A61862

QUADRANT

- range shift lever (Order A135383) (Used prior to trac. ser. no. 8753836) (includes ref. 9)

1шт.

9

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

10

A59665

ROD

- range shift (15")

1шт.

11

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod end (3/8" N.F.)

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- hex (3/8" N.F.)

1шт.

13

A59258

PIN

- range shift linkage

1шт.

14

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

15

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4", clevis pin

2шт.

16

A59666

LEVER

- range shift

1шт.

17

A59594

RING

- snap, range shift lever

1шт.

20

A137816

LEVER

- hand, gear shift

1шт.

21

A60360

LEVER

- gear shift, hand (Order A137816 lever & A137806 knob)

1шт.

22

A137806

KNOB

- gear shift lever (rubber)

1шт.

23

A65699

KNOB

- gear shift lever (plastic)

1шт.

24

A59662

WASHER

- gear shift lever

2шт.

25

A61874

QUADRANT

ASSY. - reverse gear shift (includes ref. 26)

1шт.

26

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

27

A60372

ROD

- reverse, gear shift

1шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rods (3/8")

3шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- hex, yoke to rod (3/8" N.F.)

3шт.

30

A59258

PIN

- gear shift linkage

6шт.

31

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4", gear shift linkage pin

6шт.

32

A64936

LEVER

- reverse and (1st-2nd) gear shift (Replaced A60369)

2шт.

33

B18208

SNAP RING,#100, Ext

reverse, 1st and 2nd gear shift #100, Ext

4шт.

34

A59592

SHAFT

- control lever, internal range shift (See Figure 190)

1шт.

35

A59032

SHAFT

- external reverse shift lever (See Figure 190)

1шт.
