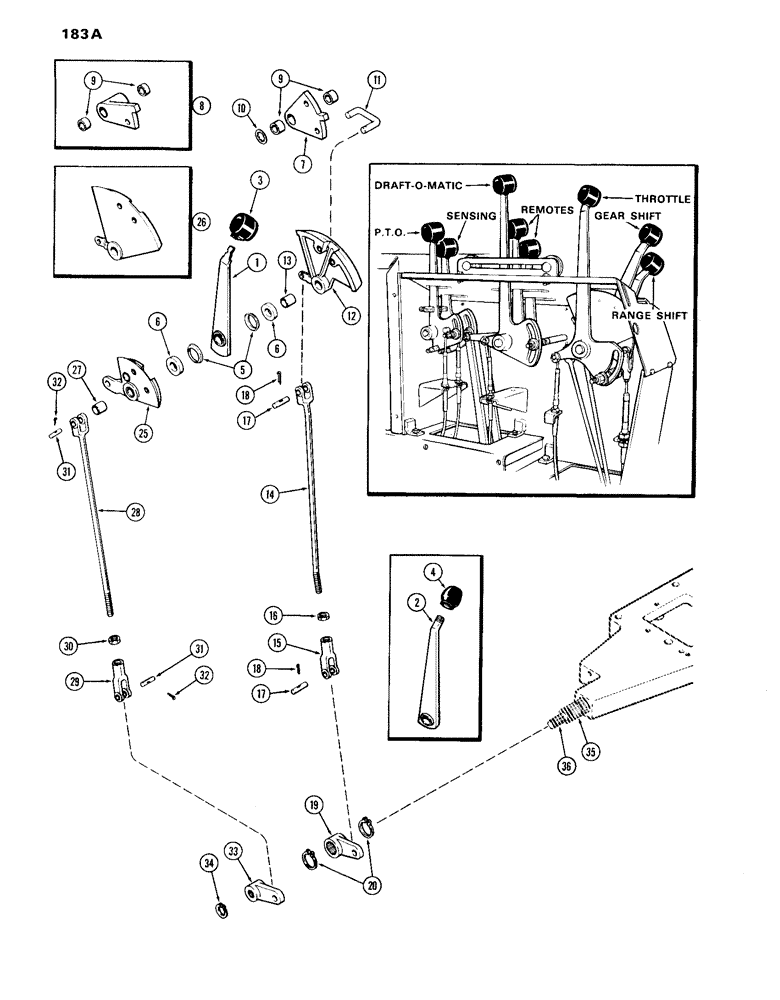

Запчасти Case IH 870 (183A) - GEAR SHIFT LINKAGE, POWER SHIFT (06) - POWER TRAIN

1

A137816

LEVER

- hand, gearshift

1шт.

1

A60360

LEVER

- hand, gear shift (Order A137816 lever & A137806 knob)

1шт.

3

A137806

KNOB

- gearshift lever (rubber)

1шт.

4

A65699

KNOB

- gear shift lever (plastic)

1шт.

5

A59662

WASHER

- gear shift lever

2шт.

6

A60367

SPACER

- gear shift quadrants

2шт.

7

A135501

LEVER

ASSY. - reverse lockout, 2nd & 4th quadrant (1st used trac. ser. no. 8701503) (Incl. Ref.7) (Replaces A64813)

1шт.

8

A64585

LEVER

ASSY. - reverse lockout, 2nd & 4th quadrant (Used prior to trac. ser. no. 8701503) (Order A135501) (includes ref. 9)

1шт.

9

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- reverse lockout lever

2шт.

10

A64584

SNAP RING,#62, Ext

RING, snap, , lockout lever #62, Ext

1шт.

11

A64583

LINK

- lockout, Serial Range: lever-quadrant

1шт.

12

A61872

QUADRANT

ASSY. - gear shift (2nd & 4th) (includes ref. 13)

1шт.

13

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

14

A60373

ROD

- gear shift, 2nd & 4th

1шт.

15

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod

1шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

17

A59258

PIN

- gear shift linkage

2шт.

18

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

19

A64936

LEVER

- gear shift, 2nd & 4th (Replaced A60369)

1шт.

20

B18208

SNAP RING,#100, Ext

2шт.

25

A64811

QUADRANT

ASSY. - gear shift, 1st & 3rd (1st used trac. ser. no. 8701503) (Incl. Ref. 27)

1шт.

26

A61867

QUADRANT

ASSY. - gear shift, 1st & 3rd (Used prior to trac. ser. no. 8701503) (Order A64811) (includes ref. 27)

1шт.

27

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

28

A59665

ROD

- gear shift, 1st & 3rd

1шт.

29

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod

1шт.

30

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

31

A59258

PIN

- gear shift linkage

2шт.

32

132-30

COTTER PIN,3/32" x 1 1/4"

PIN, split (Cotter), 3/32" x 1-1/4"

2шт.

33

A64935

LEVER

- gear shift, 1st & 3rd (Replaced A60363)

1шт.

34

A59594

RING

- snap, gear shift lever retaining

1шт.

35

A58245

SHAFT

ASSY. - external gear shift (See Figure 186)

1шт.

36

A59591

SHAFT

- lever, internal gear shift (See Figure 186)

1шт.
