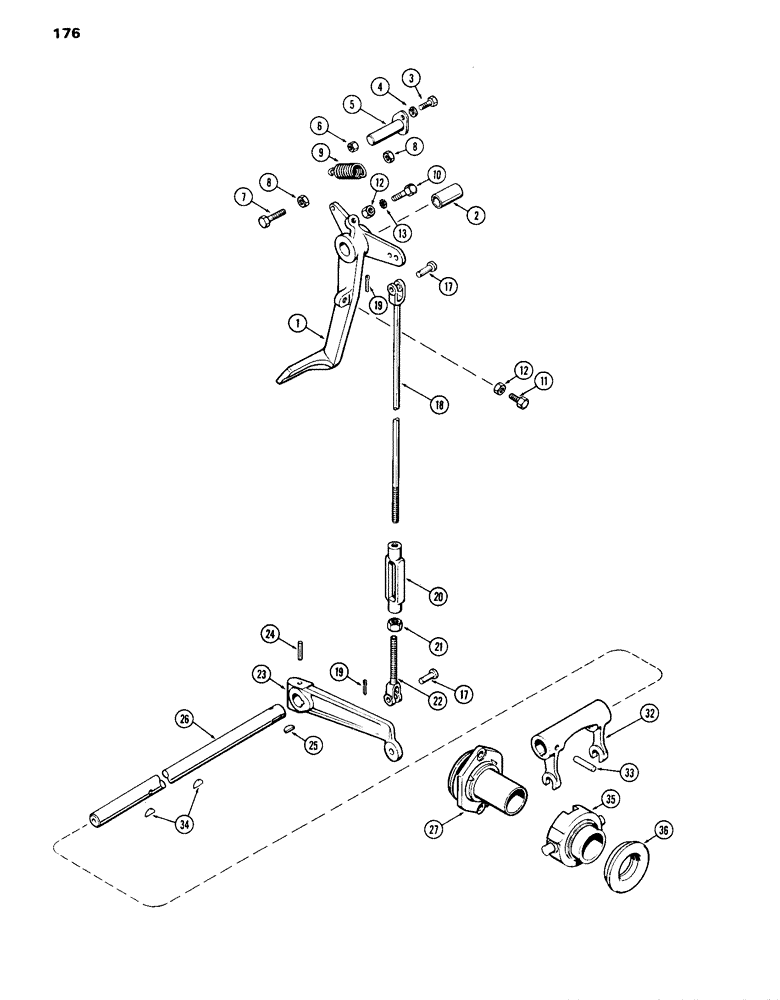

Запчасти Case IH 870 (176) - CLUTCH CONTROLS, MECHANICAL SHIFT (06) - POWER TRAIN

A60300

PEDAL

ASSY. - foot clutch (includes ref. 2)

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

A60305

SHAFT

- pivot, clutch pedal

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" N.C.)

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Anchor (Used prior to tractor S/N 8693001) Hex, 3/8"-16 x 1 3/4", G5

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex (used prior to trac. ser. no. 8693001)

2шт.

9

A59470

SPRING

- tension, clutch return

1шт.

10

A59472

BOLT

- stop, clutch pedal

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Clutch pedal stop Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

12

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex (5/16" N.C. jam)

2шт.

13

193-9

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"

2шт.

18

A60310

LINK

- upper, clutch adjusting

1шт.

19

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4"

2шт.

20

A60303

TURNBUCKLE

- (3/8") clutch adjusting links

1шт.

21

25-106

NUT,3/8"-16, G5

- hex, lower link (3/8" N.C.)

1шт.

22

A60313

LINK

- lower, clutch adjusting

1шт.

23

A59191

LEVER

- foot clutch release

1шт.

24

138-160

LOCK PIN,5/16" x 2", Slotted

PIN, , clutch release lever 5/16" x 2", Slotted

1шт.

25

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Clutch release lever #15, 1/4" x 1"

1шт.

26

A62484

SHAFT

- clutch release (Replaces A61220)

1шт.

27

A61166

TUBE

CARRIER ASSY. - range input shaft bearing

1шт.

32

A58981

YOKE - clutch release shaft

1шт.

33

138-158

LOCK PIN,5/16" x 1 5/8", Slotted

PIN, 5/16" x 1-5/8", slotted, clutch release yoke

1шт.

34

126-24

WOODRUFF KEY,#15, 1/4" x 1"

Clutch release shaft #15, 1/4" x 1"

2шт.

35

A66626

CARRIER

ASSY. - clutch release bearing (Replaces A59061) (includes ref. 36)

1шт.

36

A144152

BEARING,57.13mm ID x 86.13mm OD x 19.18mm W

- clutch release (Replaces A59043)

1шт.
