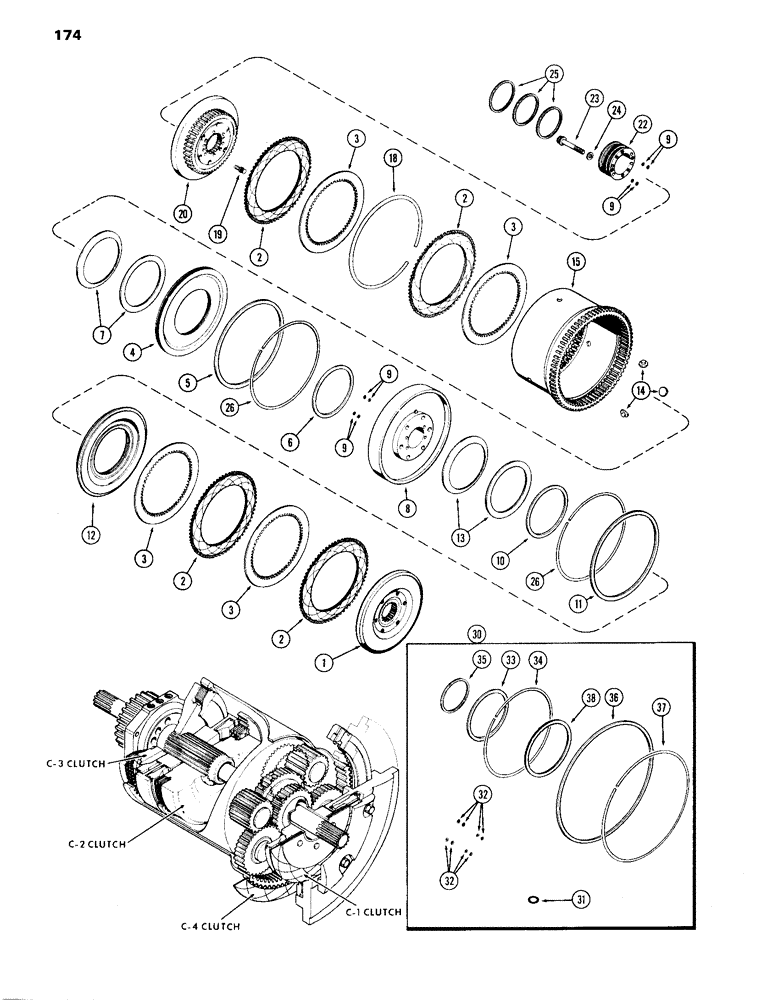

Запчасти Case IH 870 (174) - (C2) AND (C3) CLUTCHES, POWER SHIFT (06) - POWER TRAIN

1

A61294

HUB

- (C-2 Clutch)

1шт.

2

A61981

PLATE

- sintered (C-2 & C-3 Clutch) (99 ext. teeth)

4шт.

3

A58089

PLATE

- steel (C-2 & C-3 Clutch) (72 int. teeth)

4шт.

4

A66359

PISTON

- (C-3 Clutch) (Replaced A58380 & A63094)

1шт.

5

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston (C-3 Clutch) (approx. 8" I.D.) (Teflon lip)

1шт.

6

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston (approx. 4-1/2" I.D.) (Teflon lip) (C-3 Clutch)

1шт.

7

A58094

SPRING

- return (Belleville) (C-3 Clutch)

2шт.

8

A64487

CARRIER

- piston (C-2 & C-3 Clutch) (Replaced A62121)

1шт.

9

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - oil sealing, hub (19/64 x 7/16 x 1/16") (C-2 & C-3 Clutch)

4шт.

10

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston (approx. 4-1/2" I.D.) (Teflon lip) (C-2 Clutch)

1шт.

11

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston (approx. 8" I.D.) (Teflon lip) (C-2 Clutch)

1шт.

12

A66359

PISTON

- (C-2 Clutch) (Replaced A58380 & A63094)

1шт.

13

A58094

SPRING

- return (Belleville) (C-2 Clutch)

2шт.

14

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

15

A58412

GEAR

- ring, planetary

1шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

SNAP RING - retaining plate to ring gear (C-2 & C-3 Clutch)

1шт.

19

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - oil distributor hub to clutch hub (1/4 x 3/4" N.C., 12 pt. flanged) (C-3 Clutch)

2шт.

20

A58385

HUB

- (C-3 Clutch)

1шт.

22

A58103

HUB

- oil distributor (C-3 Clutch)

1шт.

23

A64403

SCREW,Ferry 3/8" - 16 x 2 1/2", Gr 8

- clutch hubs (3/8 x 2-1/2" N.C. Ferry cap) (Replaced A58378)

6шт.

24

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- (7/16 x 3/4 x 1/32") (Replaced A59238)

6шт.

25

A58384

RING

- seal, oil distributor hub (C-3 Clutch)

3шт.

26

A62642

ELECTRICAL WIRE

WIRE - (C-2 piston seal)

2шт.

A42886

SEAL KIT

- seal, clutch (Incl. Items 5, 6, 9-11 & 26 also refs. 19, 20, 28-30 Page 171 and ref. 19 Page 173B)

1шт.
