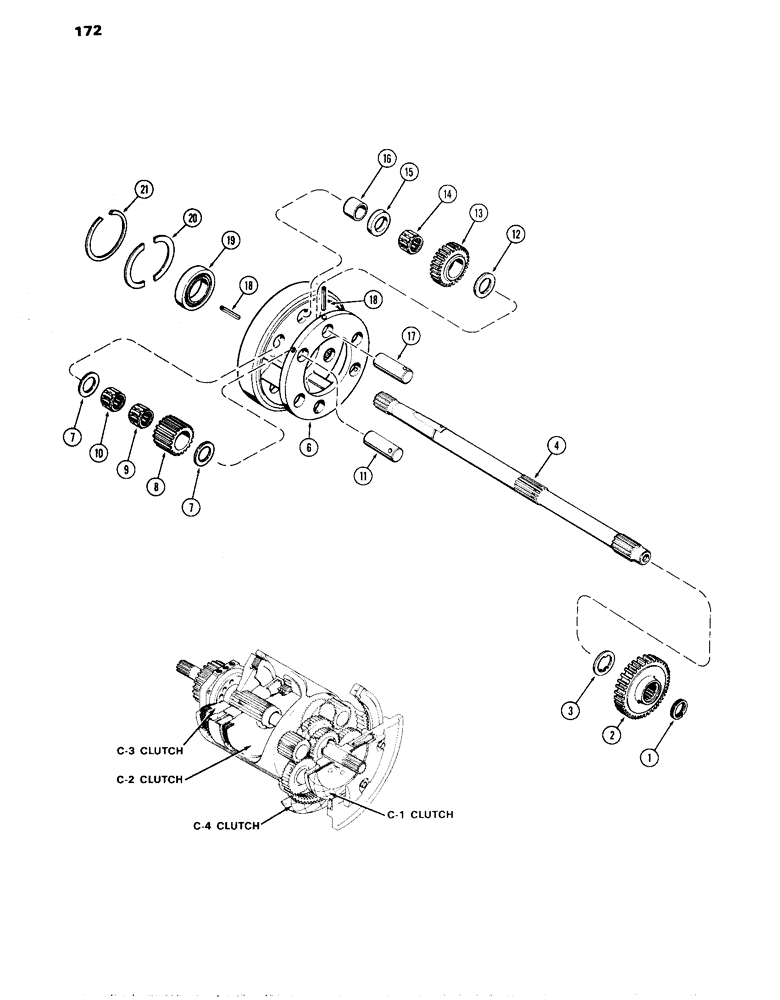

Запчасти Case IH 870 (172) - PLANETARY AND OUTPUT SHAFT, POWER SHIFT (06) - POWER TRAIN

1

A59933

SNAP RING,#118, 1.105", Ext, Spiral

RING - snap, P.T.O. drive shaft

1шт.

2

A58399

GEAR

- trans. & P.T.O. front drive shaft

1шт.

3

A58400

WASHER

- thrust, trans. & P.T.O. front drive shaft gear

1шт.

4

A58414

SHAFT

- drive, rear, P.T.O.

1шт.

6

A58066

CARRIER

- planetary

1шт.

7

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary (w/long gears)

6шт.

8

A58408

GEAR

- planetary (long) (24 teeth)

3шт.

9

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle, planetary gear (w/long gear)

3шт.

10

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller needle, planetary gear (w/long gear)

3шт.

11

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (1 x 2-3/4") (w/long gear)

3шт.

12

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planetary gear (w/short gear)

3шт.

13

A58405

GEAR

- planetary (short) (36 teeth)

3шт.

14

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle, planetary gear (w/short gear)

3шт.

15

A58406

SPACER

RACE - thrust, planetary gear (w/short gear)

3шт.

16

A58407

BUSHING

SPACER - planetary gear (w/short gear)

3шт.

17

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/short gear)

3шт.

18

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, , Planetary gear pin to carrier 3/16" x 3/4", Slotted

6шт.

19

A58080

BALL BEARING,1.7717" ID x 2.9528" OD x 0.6249"

BEARING - ball, planetary output shaft, front

1шт.

20

A58081

CARRIER

RETAINER - planetary carrier ball bearing

2шт.

21

G46143

RING

SNAP RING - planetary carrier bearing

1шт.
