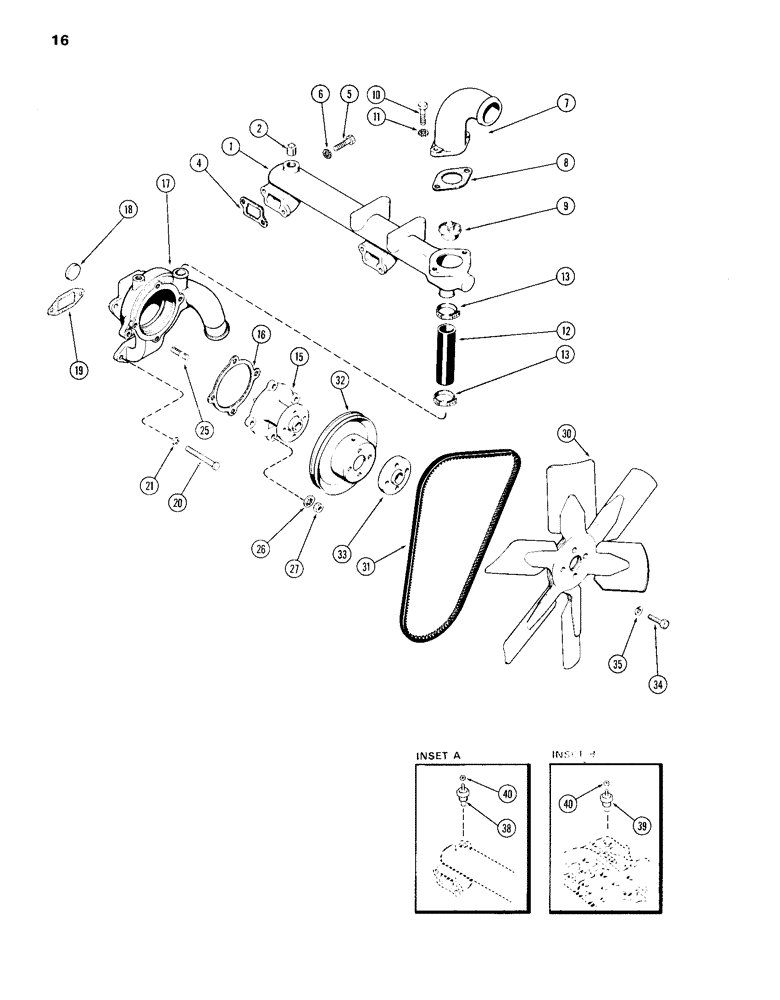

Запчасти Case IH 870 (016) - WATER MANIFOLD AND THERMOSTAT, (336B) DIESEL ENGINE (02) - ENGINE

1

A58735

MANIFOLD

MANIFOLD - water

1шт.

2

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, 1/2" sq. hd.

1шт.

4

A58637

MANIFOLD GASKET

GASKET - water manifold

2шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex

2шт.

5

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

6

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

7

A61167

SPARE PART HOUSING - thermostat

1шт.

8

G46907

GASKET

GASKET - thermostat housing

1шт.

9

A57641

THERMOSTAT

THERMOSTAT

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

11

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

12

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE - water pump by-pass (1-1/4 x 3-5/16")

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - by-pass hose (1-3/16 to 1-3/4")

2шт.

15

A62972

PUMP

PUMP ASSY. - water (Replaces A58738)

1шт.

15

1998700C1

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

A48331

CORE-WATER PUMP

Return Number, Water Pump

1шт.

16

A58646

GASKET

GASKET -, Serial Range: pump-body

1шт.

17

A58779

HOUSING

BODY ASSY. - water pump (includes ref. 18)

1шт.

18

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - (1-3/8" cup type) water pump

1шт.

19

A58649

GASKET

GASKET - body to block, water pump

1шт.

20

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

BOLT, , Water pump Hex, 3/8"-16 x 1 1/8", G5, Full Thd

4шт.

21

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

25

A62234

STUD

STUD - pump to body (3/8" N.C. x 1-5/16"), water pump

4шт.

26

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Water pump Int Tooth, 3/8"

4шт.

27

25-146

JAM NUT,Jam, 3/8"-16, G5

NUT - (3/8" N.C. hex jam), water pump

4шт.

30

A23106

HALF BLADE

FAN, water pump

1шт.

31

A59762

V-BELT,0.69" W x 59.25" L

Fan Drive, Water Pump

1шт.

32

A58744

PULLEY

PULLEY - fan driven, water pump

1шт.

33

A62465

BUSHING

SPACER - fan blade (1-1/4") (1st used eng. ser. no. 2331147) (1-3/8" thickness), water pump

1шт.

33

A61268

BUSHING

SPACER - fan blade (1") (Used prior to eng. ser. no. 2331147) (1-1/8") thickness), water pump

1шт.

34

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, (1st used eng. S/N 2331147), water pump Hex, 3/8"-16 x 2 1/4", G5

4шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, (Used prior to eng. S/N 2331147), water pump Hex, 3/8"-16 x 2", G5

4шт.

35

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

4шт.

38

A66733

TRANSMITTER

UNIT - sending, engine temp. (1/2" N.P.T.F.) (in water manifold) (See Inset A)

1шт.

39

A61787

TRANSMITTER

UNIT - sending, engine temp. (3/8" N.P.T.F.) (in cylinder head) (See Inset B)

1шт.

40

193-1000

NUT,Keps, w/LW,#10-32

NUT - sending unit, #10 N.F. hex brass, temperature

1шт.
