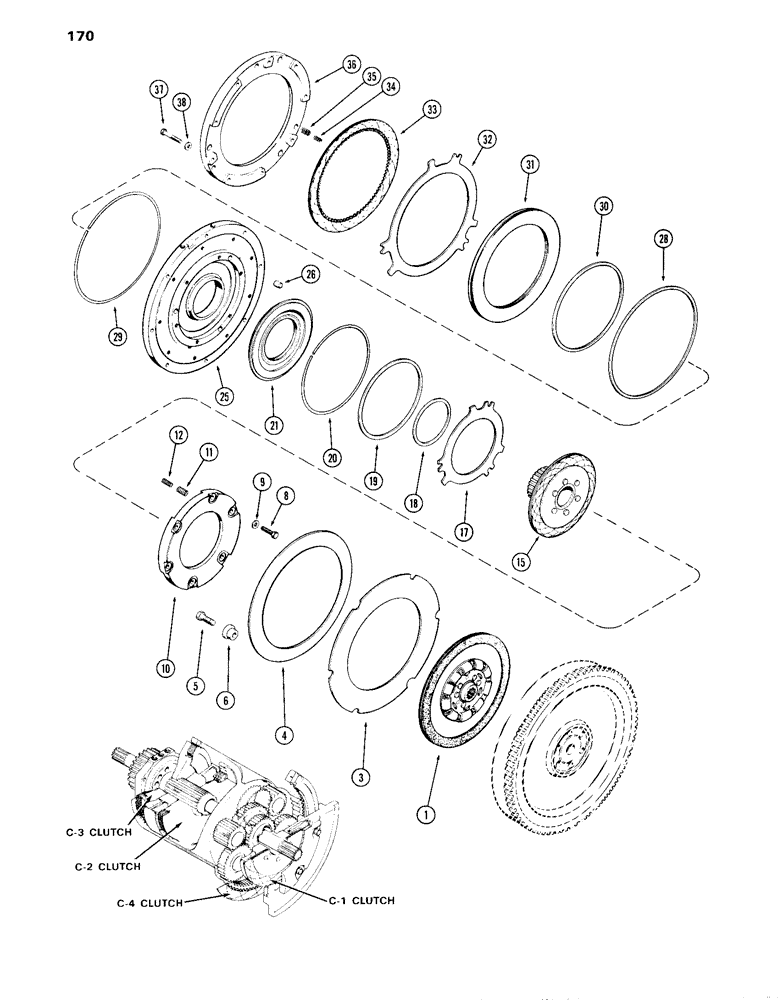

Запчасти Case IH 870 (170) - (C-1) AND (C-4) CLUTCHES, POWER SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A58388
PLATE
ASSY. - 12" driven member
1шт.
3
A58036
PLATE
- pressure, torque limiter
1шт.
4
A61000
SPRING
- torque limiter
1шт.
5
113-401
BOLT
- retainer to flywheel (1/2 x 1-3/4" N.C.)
6шт.
6
A59133
RETAINER
- clutch spring, torque limiter
6шт.
8
113-245
X
BOLT - (3/8 x 1-1/2" N.C. hex)
6шт.
9
A63995
WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk
- steel (7/16 x 3/4 x 1/32") (Replaced A59025)
6шт.
10
A58390
PLATE
- reaction (C-1 Clutch)
1шт.
11
A58391
SPRING
- return, outer (C-1 Clutch) (3/4" free length) (17/32" O.D.)
3шт.
12
A60596
SPRING
- return, inner (C-1 Clutch) (3/4" free length) (23/64" O.D.)
3шт.
15
A62418
LARGE PLATE
PLATE ASSY. - sun gear and clutch (C-1 Clutch)
1шт.
17
A65524
PLATE
- steel (C-1 Clutch) (Replaces A58392)
1шт.
18
A58382
SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk
- internal (approx. 4-1/2" I.D.) (Teflon lip) (C-1 Clutch)
1шт.
19
A58381
SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk
- external (C-1 piston) (See A42886 kit P. 175)
1шт.
20
A62642
ELECTRICAL WIRE
WIRE - (C-1 piston seal) (use w/A58381 seal)
1шт.
21
A66392
PISTON
- (C-1 Clutch) (Replaces A58380)
1шт.
25
A59051
CARRIER
ASSY. - piston (C-1 & C-4 Clutch) (includes ref. 26)
1шт.
26
A58059
PIN
- reaction plate (C-1 & C-4 Clutch)
6шт.
28
A58396
SEAL,318.39mm ID x 3.23mm Thk
- external (C-4 clutch)
1шт.
29
A62643
ELECTRICAL WIRE
WIRE - (C-4 piston seal)
1шт.
30
A58397
SEAL,227.13mm ID x 3.23mm Thk
- internal (C-4 clutch)
1шт.
31
A58395
PISTON
- (C-4 Clutch)
1шт.
32
A58056
PLATE
- steel (C-4 clutch)
1шт.
33
A62563
PLATE
- sintered (C-4 Clutch)
1шт.
34
A60596
SPRING
- return, 23/64" dia., 3/4" free length (C-4 clutch)
3шт.
35
A58391
SPRING
- return, 9/16" dia., 3/4" free length (C-4 clutch)
3шт.
36
A58394
PLATE
- reaction (C-4 Clutch)
1шт.
38
A63995
WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk
- 13/32 x 13/16 x 5/64" (Replaced A59025)
9шт.
Выбрано товаров: 29
