Запчасти Case IH 870 (168) - TRANSMISSION AND CLUTCH HOUSINGS, POWER SHIFT (06) - POWER TRAIN

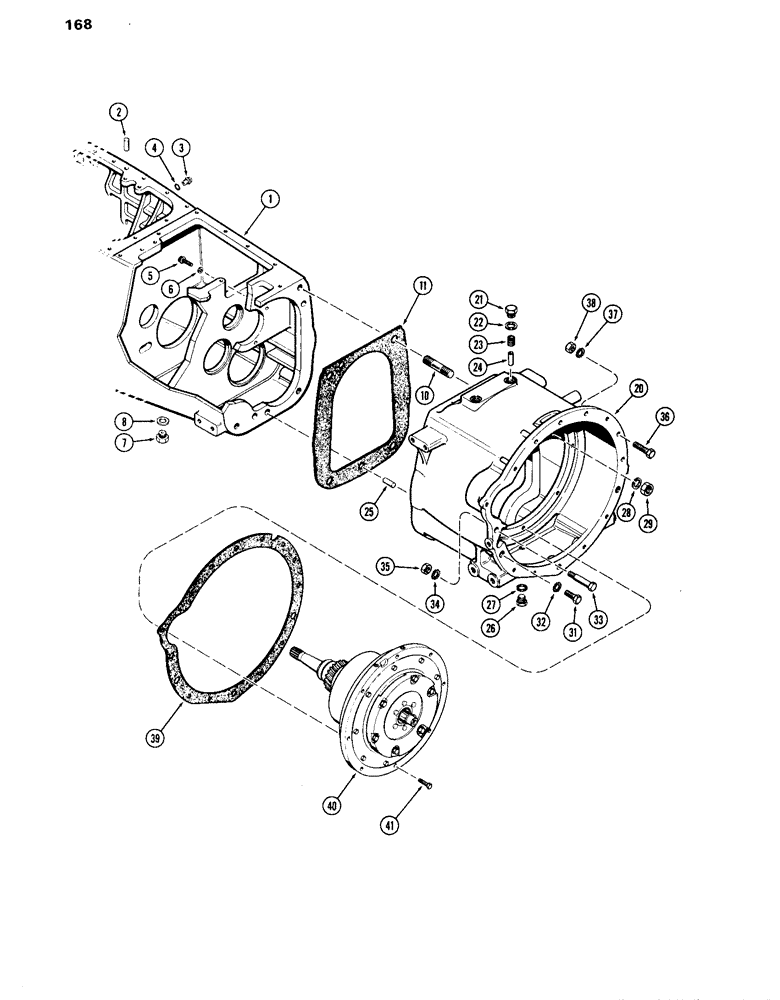

Схема запчастей Case IH 870 - (168) - TRANSMISSION AND CLUTCH HOUSINGS, POWER SHIFT (06) - POWER TRAIN
27
35
41
22
6
38
7
21
24
29
5
25
8
33
1
31
4
32
39
2
3
37
40
11
34
26
20
23
28
36
10

Артикул

Название

Примечание

Количество

1

A61180

HOUSING

- transmission

1шт.

2

A7077

DOWEL

PIN - dowel, trans. hsg. to top cover (1/2 x 1-3/8")

2шт.

3

A58420

GAUGE

ASSY. - oil sight (glass) (includes ref. 4)

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - sight glass

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex)

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

A140222

PLUG

- drain, trans. hsg. (3/4") (Replaces A14280)

3шт.

8

A58608

GASKET

- drain plug, trans. hsg. (3/4 x 1 x 5/64")

3шт.

10

A7073

STUD

- trans. hsg. to clutch hsg. (7/8" N.F. x 4")

4шт.

11

A58138

GASKET

- clutch housing to trans. housing

1шт.

20

A58483

HOUSING - power shift

1шт.

21

214389

PLUG,3/4" - 16 ORB

Assy, Clutch hsg. (Includes Ref. 22, 23 & 24) Hex Hd, 3/4"-16 ORB

2шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (1/2 x 11/16 x 3/32")

1шт.

23

A58050

PLUG

- piston oil tube

2шт.

24

A58049

TUBE

- oil, piston

2шт.

25

A28269

PIN

- dowel, clutch hsg. to trans. hsg.

2шт.

26

A140222

PLUG

- drain, clutch hsg. (3/4") (Replaces A14280)

2шт.

27

A58608

GASKET

- drain plug, clutch hsg. (3/4")

2шт.

28

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

29

25-1114

NUT,7/8"-14, G5

- hex (7/8" N.F.)

4шт.

31

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Engine to clutch hsg. Hex, 3/4"-10 x 2 1/4", G5

2шт.

32

A34651

LOCK WASHER

- lock (3/4" external teeth, heavy duty)

2шт.

33

A61040

STEP BOLT

BOLT - dowel, eng. to clutch hsg. (1/2 x 3" N.C. hex)

1шт.

33

A61041

STEP BOLT

BOLT - dowel, eng. to clutch hsg. (1/2 x 2-3/16" N.C. hex)

1шт.

34

A34650

LOCK WASHER

- lock (1/2" external teeth, heavy duty)

2шт.

35

25-108

NUT,1/2"-13, G5

- hex (1/2" N.C.)

2шт.

36

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Eng. to clutch housing Hex, 1/2"-13 x 1 5/8", G5

7шт.

36

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Engine to clutch housing Hex, 1/2"-13 x 1 7/8", G5

3шт.

36

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- eng. to clutch hsg. (1/2 x 2-1/4" N.C.)

1шт.

37

A34650

LOCK WASHER

- lock (1/2" external teeth, heavy duty)

11шт.

38

25-108

NUT,1/2"-13, G5

- hex (1/2" N.C.)

1шт.

39

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

40

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift & planetary

1шт.

41

113-245

X

BOLT - (3/8 x 1-1/2" N.C. hex)

8шт.

Выбрано товаров: 34
