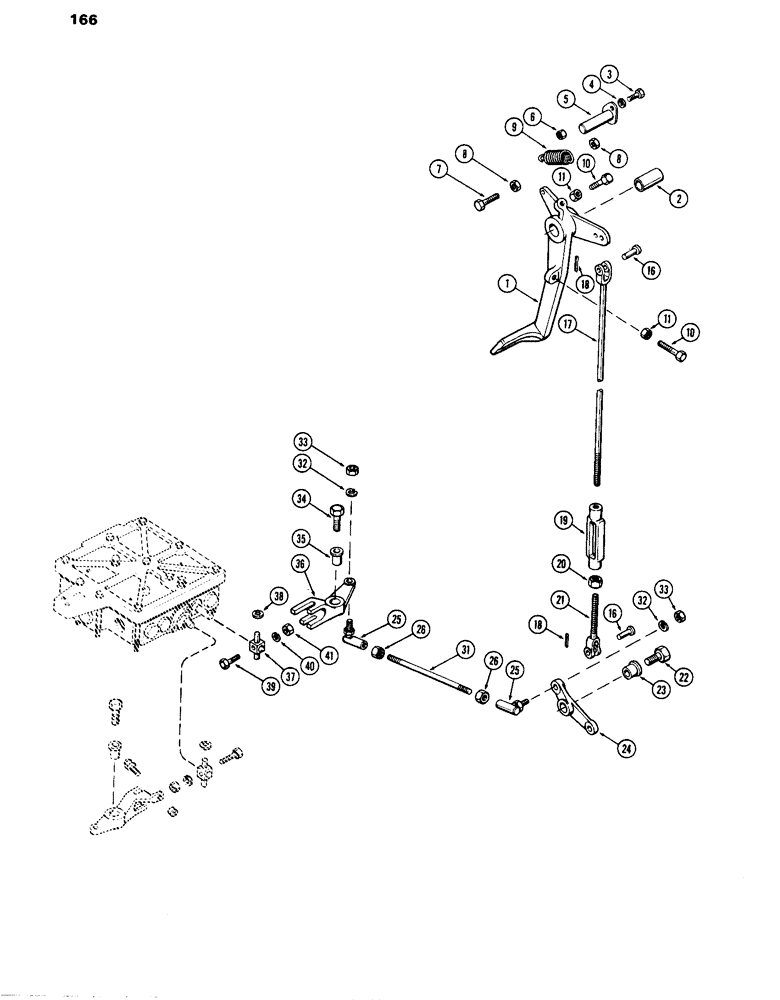

Запчасти Case IH 870 (166) - CLUTCH CONTROLS, POWER SHIFT (06) - POWER TRAIN

1

A60300

PEDAL

ASSY. - foot clutch (includes ref. 2)

1шт.

2

A59475

BUSHING

- clutch pedal

1шт.

3

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

4

92-5

LOCK WASHER,5/16"

1шт.

5

A60305

SHAFT

- pivot, foot clutch pedal

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16 N.C.)

1шт.

7

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring anchor Hex, 3/8"-16 x 1 3/4", G5

1шт.

8

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex (3/8" N.C. jam)

2шт.

9

A137396

SPRING

- tension, clutch return (Replaces A63361)

1шт.

10

A59472

BOLT

- stop, clutch pedal

2шт.

11

25-145

JAM NUT,Jam, 5/16"-18, G5

- clutch pedal stop bolt (5/16" N.C. jam hex)

2шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"

2шт.

17

A60311

LINK - upper, clutch adjusting

1шт.

18

132-26

COTTER PIN

PIN, split (Cotter), 3/32" x 3/4", clevis pin

2шт.

19

A60303

TURNBUCKLE

- (3/8") clutch adjusting links

1шт.

20

25-106

NUT,3/8"-16, G5

- hex, lower link (3/8" N.C.)

1шт.

21

A60313

LINK

- lower, clutch adjusting

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

23

A59772

BUSHING

- clutch operating lever

1шт.

24

A59177

LEVER

- clutch operating

1шт.

25

A60307

JOINT

BALL JOINT - clutch operating lever to clutch rod to clutch spool lever

2шт.

26

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, clutch rod (3/8" N.C. jam)

2шт.

31

A60304

ROD

- clutch, operating, Serial Range: lever-spool

1шт.

32

92-6

LOCK WASHER,3/8"

ball joint 3/8"

2шт.

33

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex (3/8" N.C. jam) (ball joint)

2шт.

34

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Clutch spool operating lever Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

35

A59772

BUSHING

- clutch spool operating lever

1шт.

36

A60308

LEVER

- operating, clutch spool

1шт.

37

A59150

LINK

- operating, clutch spool

1шт.

38

A59773

RING

- retaining, clutch spool operating link

1шт.

39

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Clutch spool operating link Hex, 1/4"-20 x 1 1/4", G5

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

25-104

NUT,1/4"-20, G5

1шт.
