Запчасти Case IH 870 (164) - FRONT END WEIGHTS (05) - STEERING

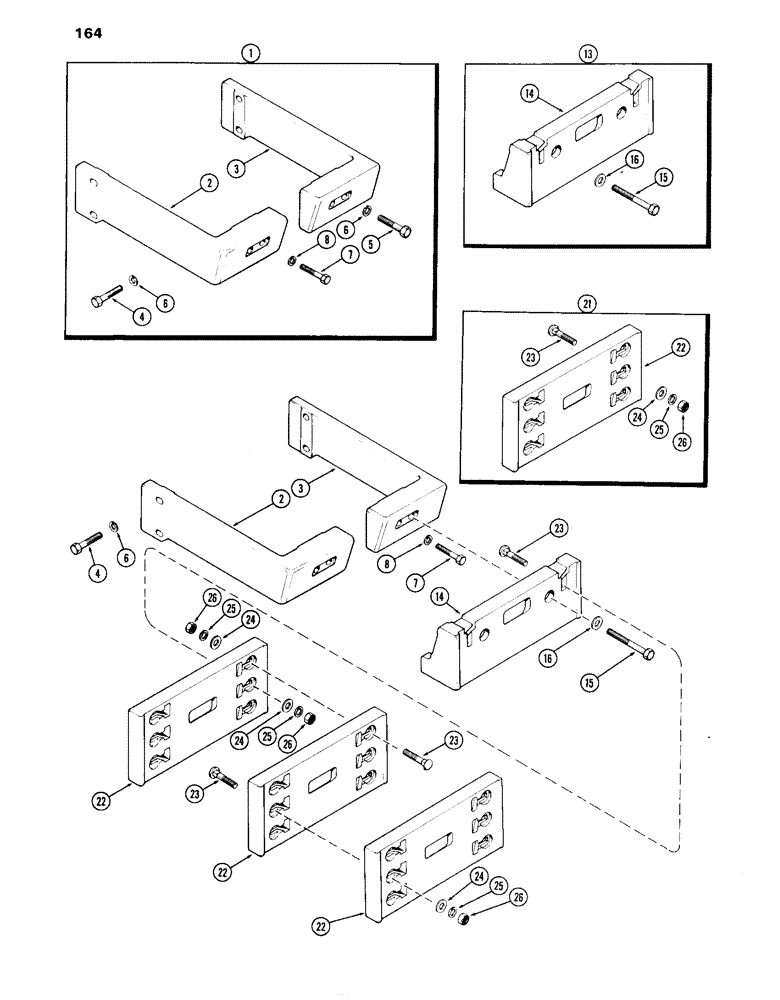

Схема запчастей Case IH 870 - (164) - FRONT END WEIGHTS (05) - STEERING
22
7
23
22
14
5
7
25
8
21
16
26
5
24
14
2
22
2
24
23
4
24
23
4
22
26
26
25
13
3
16
24
15
25
6
3
6
23
26
8
1
15
25

Артикул

Название

Примечание

Количество

1

A60536

WEIGHT

KIT - front end wrapper (Mach. Item) (includes ref. 2 - 8)

1шт.

2

A59352

WEIGHT

- wrapper, front end (R.H.) (185 lbs.) (Mach. Item)

1шт.

3

A59353

WEIGHT

- wrapper, front end (L.H.) (185 lbs.) (Mach. Item)

1шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- (3/4 x 2-3/4" N.C. hex) (zinc plated)

4шт.

5

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- (5/8 x 4" N.C. hex) (zinc plated)

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537

WEIGHT

ASSY. - adapter, front end wrapper (Mach. Item) (Used w/A60536 weight kit) (one adapter only per tractor) (includes ref. 14, 15 & 16)

1шт.

14

A59354

ADAPTER

- wrapper weight (36 lbs.) (Mach. Item)

1шт.

15

A59351

BOLT

- adapter to fron end (3/4 x 7" N.C. hex)

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

21

A60538

WEIGHT

KIT - additional front end wrapper, (Used w/A60537 weight kit) (Mach. Item) (includes ref. 22 - 26)

1шт.

22

A59355

WEIGHT

- additional front end (100 lbs.) (Mach. Item)

1шт.

23

111-708

CARRIAGE BOLT,Short NK, 3/4"-10 x 4", G2

BOLT - (3/4 x 4" N.C. rd. hd. sq. neck) (zinc plated)

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.

Выбрано товаров: 18
