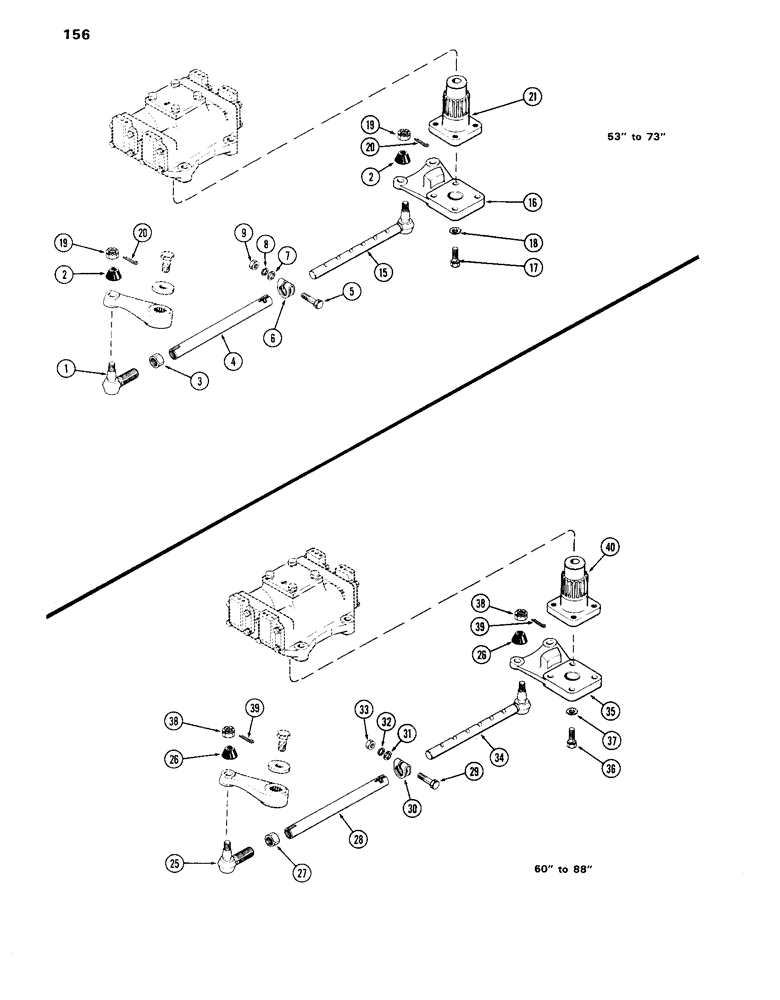

Запчасти Case IH 870 (156) - FRONT AXLE TIE RODS, 53 INCH TO 73 INCH TREAD, USED PRIOR TO TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

1

A41512

ROD

END - tie rod

2шт.

2

A41515

SEAL

- end, tie rod

4шт.

3

A41511

NUT

- jam, 1"-16, R.H. thread

2шт.

4

A59657

TUBE

- tie rod (14-11/16" long) (53 to 73" tread)

2шт.

5

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

2шт.

6

A41561

CLAMP

- tie rod

2шт.

7

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") 1/2"

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

15

A59656

ROD

- tie (6 notches) (53 to 73" tread)

2шт.

16

A59652

ARM

- center steering

1шт.

17

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

18

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

19

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F., hex sltd.

4шт.

20

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

21

NSS

NOT SOLD SEPARAT

SPINDLE - upper (Part of actuator Figure 149E)

1шт.

25

A41512

ROD

END - tie rod [60" to 88" tread]

2шт.

26

A41515

SEAL

- end, tie rod [60" to 88" tread]

4шт.

27

A41511

NUT

- jam, 1"-16, R.H. thread, jam [60" to 88" tread]

2шт.

28

A59659

TUBE

- tie rod (18-3/8" long) (60 to 88" tread)

2шт.

29

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex [ 60 to 88" tread]

2шт.

30

A41561

CLAMP

- tie rod [60 to 88" tread]

2шт.

31

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") [60 to 88"tread] 1/2"

2шт.

32

92-8

LOCK WASHER,1/2"

[60" to 88" tread] 1/2"

2шт.

33

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex [60 to 88" tread]

2шт.

34

A59658

STEERING TIE-ROD

ROD - tie (8 notches) (60 to 88" tread)

2шт.

35

A59652

ARM

- center steering [60 to 88" tread]

1шт.

36

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

[60 to 88" tread] Hex, 5/8"-18 x 1 3/4", G5

4шт.

37

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8", 60" to 88" tread

4шт.

38

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex sltd. [60 to 88" tread]

4шт.

39

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), [60" to 88" tread] 1/8" x 1 1/8"

4шт.

40

NSS

NOT SOLD SEPARAT

SPINDLE - upper (Part fo actuator, Figure 149E) [60 to 88'' tread]

1шт.
