Запчасти Case IH 870 (149G) - A60207 STEERING VALVE (05) - STEERING

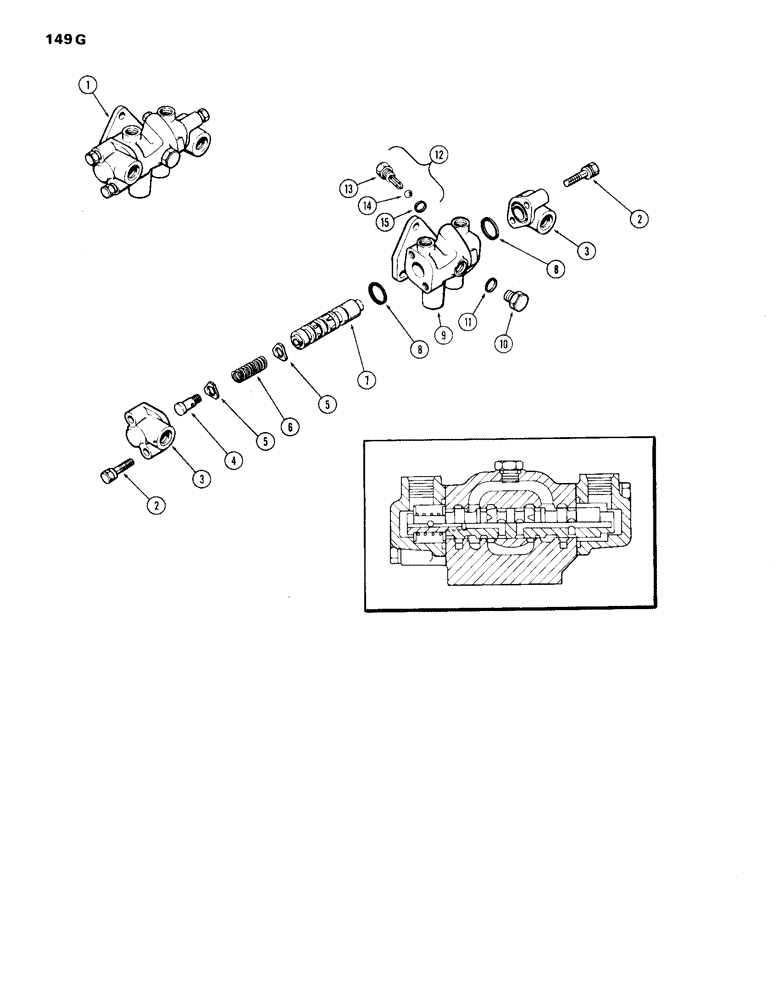

Схема запчастей Case IH 870 - (149G) - A60207 STEERING VALVE (05) - STEERING
4
8
6
13
11
5
3
10
9
3
14
12
8
1
2
2
5
15
1

Артикул

Название

Примечание

Количество

1

A60207

VALVE

ASSY. - steering (includes ref. 2 - 15)

1шт.

2

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - 3/8" N.C. hex (w/captive washer)

4шт.

3

F19624

CAP

- valve end

2шт.

4

F19623

SCREW,3/8" - 24 x 15/16"

- centering, valve

1шт.

5

F19619

WASHER

- centering, valve

2шт.

6

A42201

SPRING

- centering, valve

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A60207)

1шт.

8

F21003

O-RING,1.237" ID x 1.443" OD

"O" RING - 1-1/4 x 1-29/64 x 7/64"

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve (Order A60207)

1шт.

10

129998

PLUG,1/2" - 20 ORB

Assy. bleed, Valve body (Incl. Ref. 11) Hex Hd, 1/2"-20 ORB

1шт.

11

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

12

F82943

VALVE

KIT - plug (includes ref. 13, 14 & 15)

1шт.

13

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

14

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

15

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

Выбрано товаров: 15
