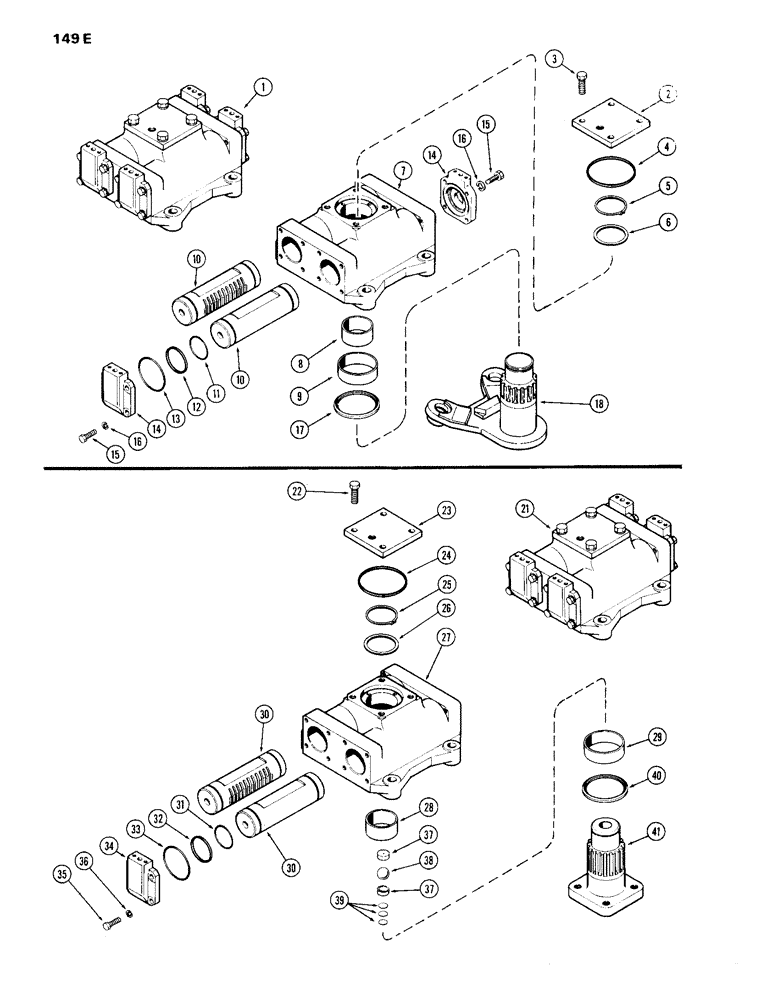

Запчасти Case IH 870 (149E) - A64505 STEERING ACTUATOR, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NUMBERS 8693001 TO 8726609 (05) - STEERING

1

A64505

ACTUATOR

ASSY. - complete (Order A66716) (includes ref. 2 - 18)

1шт.

2

A60218

COVER

- top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

"O" RING - cover seal (4 x 4-17/64 x 9/64")

1шт.

Included w/ SEAL KIT, A42399

1шт.

5

A60216

SNAP RING,#250, Ext

RING, snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

- thrust, spindle

1шт.

7

A60209

HOUSING

- actuator (includes ref. 8 & 9)

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

- actuator (Replaces 285)

2шт.

11

A60212

O-RING

"O" RING - piston (1-5/16 x 2-1/8 x 3/32")

4шт.

Included w/ SEAL KIT, A42399

1шт.

12

A60213

RING

- seal, piston

4шт.

Included w/ SEAL KIT, A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal (2-7/8 x 3-1/8 x 1/8")

4шт.

Included w/ SEAL KIT, A42399

1шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

17

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Included w/ SEAL KIT, A42399

1шт.

18

A64507

STEERING ARM

SPINDLE - actuator (Order A66717)

1шт.

A42399

SEAL

KIT - Includes: Ref. 4, 11 - 13 and 17

1шт.

21

A60208

ACTUATOR

ASSY. - steering (Order A64504 (Page 149), A60208 [used prior to trac. s/n 8693001] (includes ref. 22 - 40)

1шт.

22

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

A60208 steering actuator [used prior to tractor S/N 8693001] Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

23

A60218

COVER

- steering actuator, A60208 [used prior to trac. s/n 8693001]

1шт.

24

A60219

SEALING RING

"O" RING - seal (4 x 4-17/64 x 9/64"), A60208 steering actuator [used prior to trac. s/n 8693001]

1шт.

Included w/ SEAL KIT, A42399

1шт.

25

A60216

SNAP RING,#250, Ext

RING, snap, , A60208 steering actuator [used prior to trac. s/n 8693001] #250, Ext

1шт.

26

A60215

WASHER

- thrust, A60208 steering actuator [used prior to trac. s/n 8693001]

1шт.

27

A60209

HOUSING

- actuator, A60208 steering [used prior to tractor s/n 8693001] (includes ref. 28 & 29)

1шт.

28

A60210

BUSHING

- top (2-1/2 x 2-11/16 x 1-23/64") A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.

29

A60211

BUSHING

- bottom (3-1/4 x 3-7/16 x 1-5/32") A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.

30

A64908

PISTON

- steering actuator (Replaces A59285) A60208 steering actuator [used prior to tractor s/n 8693001]

2шт.

31

A60212

O-RING

"O" RING - piston (1-15/16 x 2-1/8 x 3/32") A60208 steering actuator [used prior to tractor s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

32

A60213

RING

- seal, piston, A60208 steering actuator [used prior to tractor s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

33

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - (2-7/8 x 3-1/8 x 1/8") A60208 steering actuator [used prior to tractor s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

34

A59533

COVER

- end, A60208 steering actuator [used prior to tractor s/n 8693001]

4шт.

35

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex), A60208 steering actuator [used prior to tractor s/n 8693001]

16шт.

36

92-6

LOCK WASHER,3/8"

A60208 steering actuator [used prior to tractor s/n 8693001] 3/8"

16шт.

37

A60217

SEAT

- ball, A60208 steering actuator [used prior to tractor s/n 8693001]

2шт.

38

211-21

BALL

- steel (1" diameter) A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.

39

A34849

SHIM,.0105" Thk

A60208 steering actuator [used prior to tractor S/N 8693001] .0105" Thk

1шт.

39

A34390

SHIM,.0329" Thk

A60208 steering actuator [used prior to tractor S/N 8693001] .0329" Thk

1шт.

39

A34391

SHIM,.0149" Thk

A60208 steering actuator [used prior to tractor S/N 8693001] .0149" Thk

1шт.

40

A57658

OIL SEAL

- oil (3-1/4 x 4-1/4 x 3/8") A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.

Included w/ SEAL KIT, A42399

1шт.

41

A60214

SPINDLE - upper, A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 24, 31 - 33 and 40, A60208 steering actuator [used prior to tractor s/n 8693001]

1шт.
