Запчасти Case IH 870 (148) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING

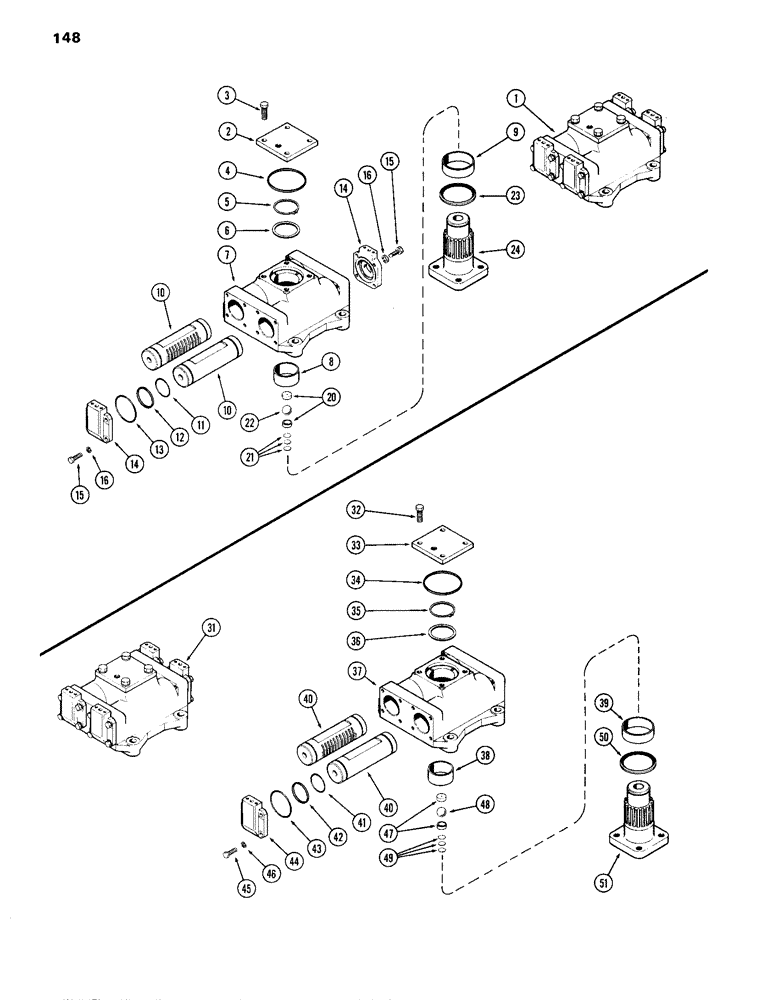

Схема запчастей Case IH 870 - (148) - A64504 STEERING ACTUATOR, WITH DUAL FRONT WHEEL, FIRST USED TRACTOR SERIAL NUMBER 8693001 (05) - STEERING
6
10
11
50
48
4
22
41
8
12
32
43
2
40
42
23
14
7
49
16
15
37
44
47
1
10
46
45
35
24
34
3
16
38
21
33
36
31
14
39
40
5
20
9
15
51
13

Артикул

Название

Примечание

Количество

1

A64504

ACTUATOR

ASSY. - complete (includes ref. 2 - 16 and 20 - 24)

1шт.

2

A60218

COVER

- top, housing

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

4

A60219

SEALING RING

"O" RING - cover seal (4 x 4-17/64 x 9/64")

1шт.

Included w/ SEAL KIT, A42399

1шт.

5

A60216

SNAP RING,#250, Ext

RING, snap, , spindle #250, Ext

1шт.

6

A60215

WASHER

- thrust, spindle

1шт.

7

A60209

HOUSING

- actuator (includes ref. 8 & 9)

1шт.

8

A60210

BUSHING

- top, 2-1/2 x 2-11/16 x 1-23/64"

1шт.

9

A60211

BUSHING

- bottom, 3-1/4 x 3-7/16 x 1-5/32"

1шт.

10

A64908

PISTON

- actuator (Replaces A59285)

2шт.

11

A60212

O-RING

"O" RING - piston (1-5/16 x 2-1/8 x 3/32")

4шт.

Included w/ SEAL KIT, A42399

1шт.

12

A60213

RING

- seal, piston

4шт.

Included w/ SEAL KIT, A42399

1шт.

13

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - cover seal (2-7/8 x 3-1/8 x 1/8")

4шт.

Included w/ SEAL KIT, A42399

1шт.

14

A59533

COVER

- end

4шт.

15

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- 3/8 x 1-3/8" N.C. hex

16шт.

16

92-6

LOCK WASHER,3/8"

16шт.

20

A60217

SEAT

- ball, spindle

2шт.

21

A34849

SHIM,.0105" Thk

Ball seat .0105" Thk

1шт.

21

A34390

SHIM,.0329" Thk

Ball seat .0329" Thk

1шт.

21

A34391

SHIM,.0149" Thk

Ball seat .0149" Thk

1шт.

22

211-21

BALL

- steel (1" dia.)

1шт.

23

A57658

OIL SEAL

- oil, spindle (3-1/4 x 4-1/4 x 3/8")

1шт.

Included w/ SEAL KIT, A42399

1шт.

24

A60214

SPINDLE - actuator

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 4, 11 - 13 and 23

1шт.

31

A60208

ACTUATOR

ASSY. - steering (Order A64504) [used prior to trac. s/n 8693001] (includes ref. 32 - 51)

1шт.

32

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

[used prior to tractor S/N 8693001] Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

33

A60218

COVER

- steering actuator [used prior to trac.s/n 8693001]

1шт.

34

A60219

SEALING RING

"O" RING - seal (4 x 4-17/64 x 9/64") [used prior to trac. s/n 8693001]

1шт.

Included w/ SEAL KIT, A42399

1шт.

35

A60216

SNAP RING,#250, Ext

RING, snap, , used prior to trac. s/n 8693001 #250, Ext

1шт.

36

A60215

WASHER

- thrust [used prior to trac s/n 8693001]

1шт.

37

A60209

HOUSING

- actuator [used prior to trac. s/n 8693001] (includes ref. 38 & 39)

1шт.

38

A60210

BUSHING

- top (2-1/2 x 2-11/16 x 1-23/64") [used prior to trac. s/n 8693001]

1шт.

39

A60211

BUSHING

- bottom (3-1/4 x 3-7/16 x 1-5/32") [used prior to trac s/n 8693001]

1шт.

40

A64908

PISTON

- steering actuator (Replaces A59285) [used prior to trac s/n 8693001]

2шт.

41

A60212

O-RING

"O" RING - piston (1-15/16 x 2-1/8 x 3/32") [used prior to trac. s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

42

A60213

RING

- seal, piston [used prior to trac. s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

43

T11032

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - (2-7/8 x 3-1/8 x 1/8") [used prior to trac. s/n 8693001]

4шт.

Included w/ SEAL KIT, A42399

1шт.

44

A59533

COVER

- end [used prior to trac. s/n 8693001]

4шт.

45

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

- (3/8 x 1-3/8" N.C. hex) [used prior to trac. s/n 8693001]

16шт.

46

92-6

LOCK WASHER,3/8"

[used prior to trac. s/n 8693001] 3/8"

16шт.

47

A60217

SEAT

- ball [used prior to trac. s/n 8693001]

2шт.

48

211-21

BALL

- steel (1" diameter) [used prior to trac. s/n 8693001]

1шт.

49

A34849

SHIM,.0105" Thk

[used prior to tractor S/N 8693001] .0105" Thk

1шт.

49

A34390

SHIM,.0329" Thk

[used prior to tractor S/N 8693001] .0329" Thk

1шт.

49

A34391

SHIM,.0149" Thk

[used prior to tractor S/N 8693001] .0149" Thk

1шт.

50

A57658

OIL SEAL

- oil (3-1/4 x 4-1/4 x 3/8") [used prior to trac. s/n 8693001]

1шт.

Included w/ SEAL KIT, A42399

1шт.

51

A60214

SPINDLE - upper [used prior to trac. s/n 8693001]

1шт.

ON TRACTORS WITH ADJUSTABLE AXLES ONLY, A64507 SPINDLE CAN REPLACE A60214 SPINDLE & A59692 CENTER STRG. ARM (SEE FIGURE 156)

1шт.

A42399

SEAL

KIT - seal, Includes: Ref. 34, 41 - 43 and 50 [used prior to trac. s/n 8693001]

1шт.
