Запчасти Case IH 870 (147E) - A66389 STEERING PUMP, USED TRACTOR SERIAL NUMBERS 8727973 TO 8780941 (05) - STEERING

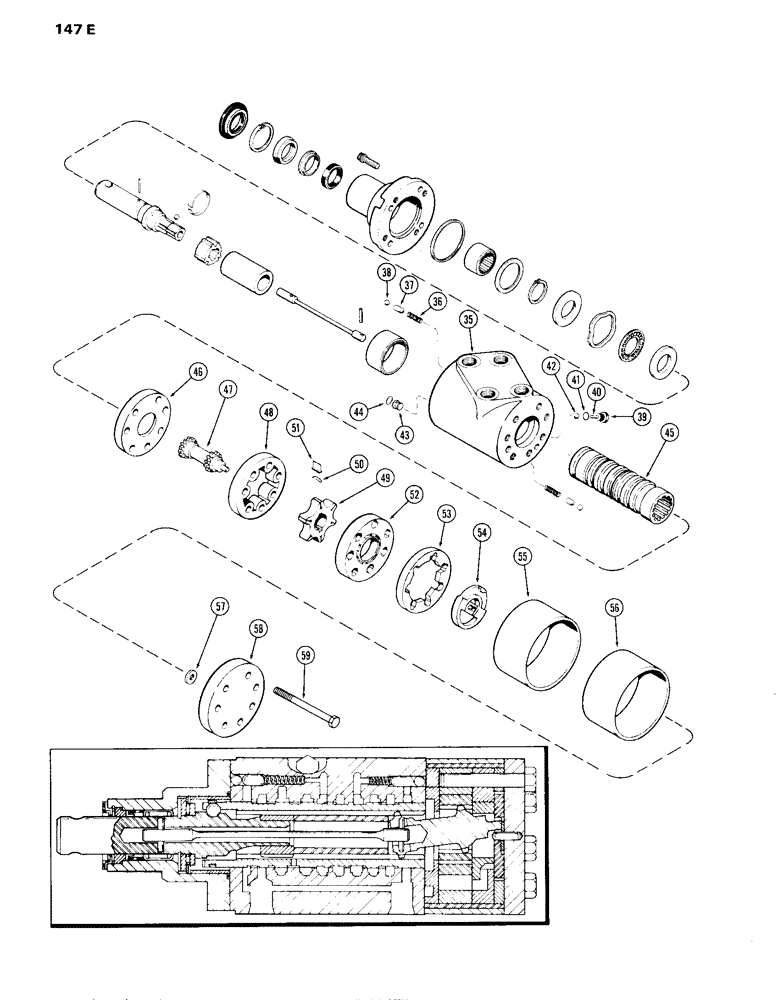

Схема запчастей Case IH 870 - (147E) - A66389 STEERING PUMP, USED TRACTOR SERIAL NUMBERS 8727973 TO 8780941 (05) - STEERING
41
43
38
36
50
44
35
39
48
52
57
53
55
59
56
40
58
42
37
45
46
49
47
54
51

Артикул

Название

Примечание

Количество

A66389

HYDRAULIC STEERING

PUMP ASSY. - steering (Cont'd from Page 147D) (includes ref. 35 - 59)

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

36

NSS

NOT SOLD SEPARAT

SPRING - check

2шт.

37

NSS

NOT SOLD SEPARAT

ROLLER - check spring

2шт.

38

211-8

BALL,9/32" Dia

3шт.

F82943

VALVE

KIT - relief plug (includes ref. 39, 40 & 41)

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

41

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

42

211-7

BALL,1/4" Dia

1шт.

43

A43565

PLUG

- port, body

1шт.

44

A43729

O-RING

"O" RING - plug

1шт.

45

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

46

A43569

BUSHING

PLATE - spacer

1шт.

47

A43568

LINK

- drive

1шт.

A43722

ROTOR

SET (includes ref. 48 - 51)

1шт.

48

NSS

NOT SOLD SEPARAT

STATOR

1шт.

49

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

50

A42219

SPRING

- vane

6шт.

51

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

52

A43573

MANIFOLD

- pump

1шт.

A43574

COMMUTATOR

ASSY. (includes ref. 53 & 54)

1шт.

53

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

54

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

55

A43725

SEAL

- rotor

1шт.

56

A45278

RETAINER

- rotor seal

1шт.

57

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive link

1шт.

58

A43580

COVER

- end, rotor

1шт.

59

A43727

BOLT

- end cover

7шт.

Выбрано товаров: 29
