Запчасти Case IH 870 (147A) - A141904 STEERING PUMP, FIRST USED TRACTOR SERIAL NUMBER 8780941 (05) - STEERING

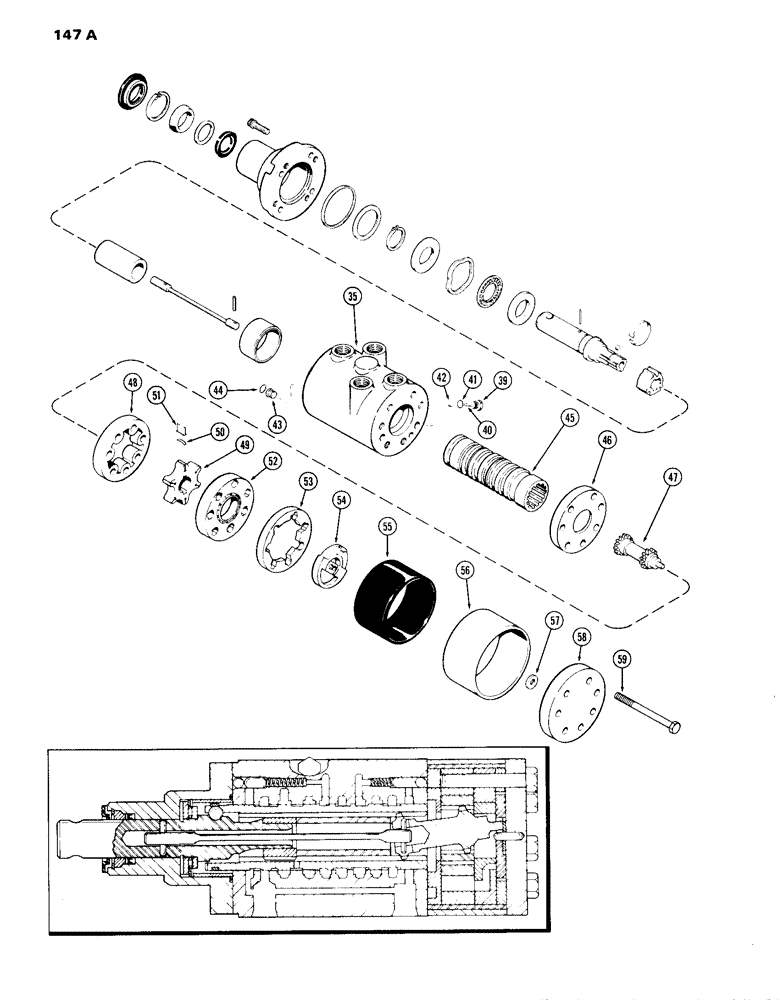

Схема запчастей Case IH 870 - (147A) - A141904 STEERING PUMP, FIRST USED TRACTOR SERIAL NUMBER 8780941 (05) - STEERING
39
48
55
47
49
59
57
40
44
42
52
53
43
45
56
54
35
50
51
58
46
41

Артикул

Название

Примечание

Количество

A141904

PUMP

ASSY. - hydrostatic steering (Cont'd from Page 147) (includes ref. 35 & 39 - 59)

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - pump (includes ref. 39, 40 & 41)

1шт.

F82943

VALVE

KIT - relief plug

1шт.

39

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

40

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, 1/8" x 15/16", Slotted

1шт.

41

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

42

211-7

BALL,1/4" Dia

1шт.

43

A43565

PLUG

- port, body

1шт.

44

A43729

O-RING

"O" RING - plug

1шт.

45

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

46

A43569

BUSHING

PLATE - spacer

1шт.

47

A43568

LINK

- drive (includes ref. 48 - 51)

1шт.

A45260

ROTOR

SET

1шт.

48

NSS

NOT SOLD SEPARAT

STATOR

1шт.

49

NSS

NOT SOLD SEPARAT

ROTOR

1шт.

50

A42219

SPRING

- vane

6шт.

51

NSS

NOT SOLD SEPARAT

VANE - pump

6шт.

52

A43573

MANIFOLD

- pump (includes ref. 53 & 54)

1шт.

A43574

COMMUTATOR

ASSY.

1шт.

53

NSS

NOT SOLD SEPARAT

RING - commutator

1шт.

54

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

55

A43725

SEAL

- rotor

1шт.

56

A45278

RETAINER

- rotor seal

1шт.

57

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - bearing, drive lock

1шт.

58

A43580

COVER

- end, rotor

1шт.

59

A43727

BOLT

- end cover

7шт.

Выбрано товаров: 26
