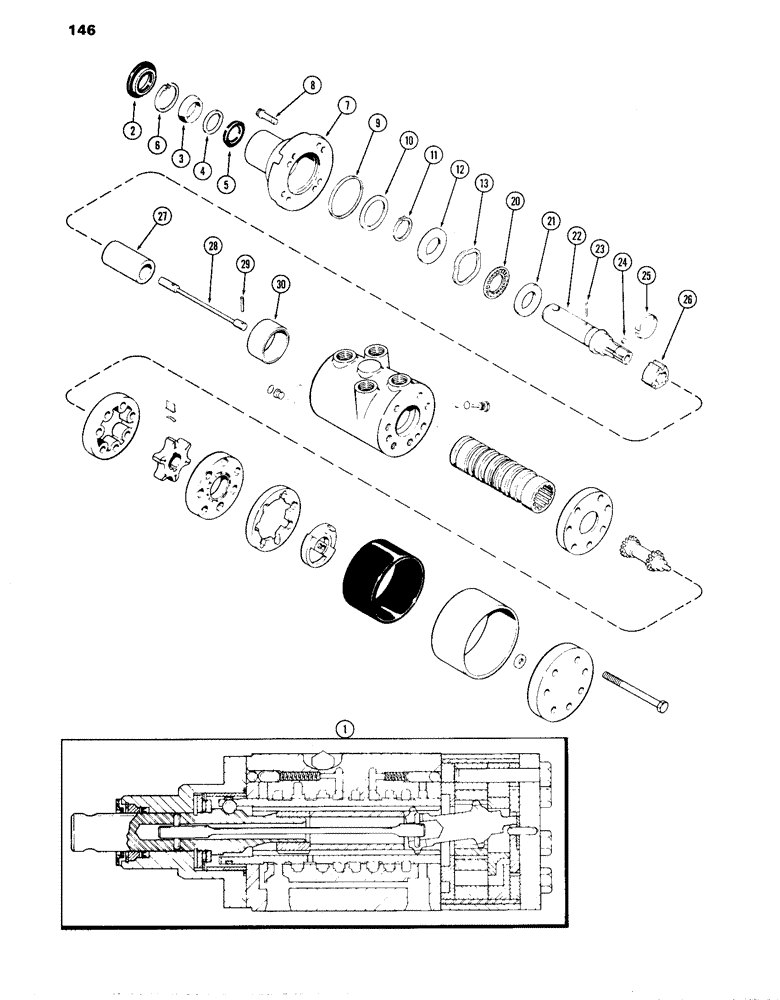

Запчасти Case IH 870 (146) - A141904 STEERING PUMP, FIRST USED TRACTOR SERIAL NUMBER 8780941 (05) - STEERING

1

A141904

PUMP

ASSY. - hydrostatic steering (Replaces A66389) (includes ref. 2 - 30)

1шт.

A45535

KIT

- seal, drive shaft (Replaces A45272) (includes ref. 2 - 5)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic)

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - pump shaft

1шт.

5

NSS

NOT SOLD SEPARAT

RING - seal

1шт.

6

A21145

SNAP RING,1.25, Int, #125

RING, snap, 1.25", Int, #125, seal washer

1шт.

7

A43562

ASSY. - upper

1шт.

8

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

BOLT - upper cover

4шт.

9

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- end cover

1шт.

10

A44435

SHIM

KIT - shim, cover needle bearing

1шт.

11

A43720

RING

- snap, bearing retainer

1шт.

12

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - thrust, bearing

1шт.

19

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - spring

1шт.

20

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - thrust, end cover

1шт.

21

F19634

BEARING WASHER

WASHER - thrust bearing

1шт.

22

A43551

SHAFT

- input

1шт.

23

D53297

PIN

- torsion bar shaft

1шт.

24

211-9

BALL,5/16" Dia

- . 5/16" Dia

1шт.

25

A43560

SPRING

RETAINER - ball

1шт.

26

A43554

RING

- drive

1шт.

27

A43719

SPACER

- drive link

1шт.

28

A43552

ROD

T-BAR ASSY. - torsion (coded orange) (includes ref. 29)

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

30

A43728

SPACER

- shaft pre-load spring

1шт.
