Запчасти Case IH 870 (145A) - A59905 RELIEF VALVE (05) - STEERING

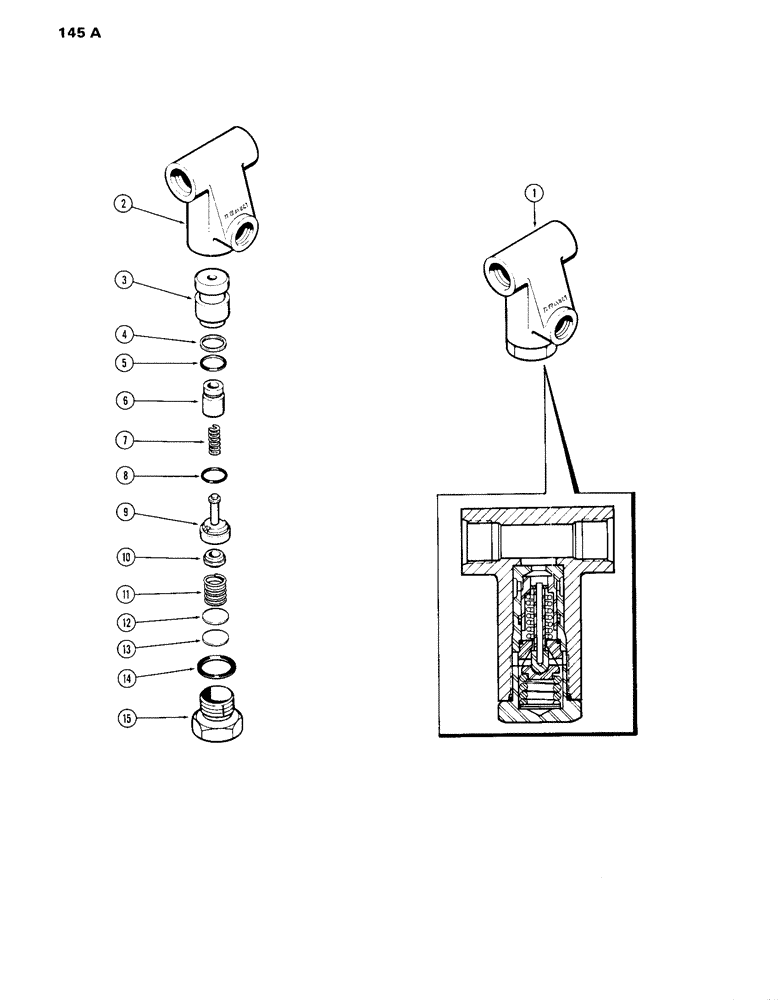

Схема запчастей Case IH 870 - (145A) - A59905 RELIEF VALVE (05) - STEERING
15
12
1
13
14
11
9
5
4
8
6
3
10
2
7

Артикул

Название

Примечание

Количество

1

A59905

VALVE

ASSY. - steering relief (includes ref. 2 - 15)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A59905)

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A59905)

1шт.

4

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- back-up, relief valve sleeve

1шт.

Included w/ SEAL KIT, A42888

1шт.

5

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - 5/8 x 3/4 x 1/16"

1шт.

Included w/ SEAL KIT, A42888

1шт.

6

A57553

PISTON

- relief valve

1шт.

7

A34382

SPRING

- pilot piston, 1" free length

1шт.

8

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - 5/8 x 3/4 x 1/16"

1шт.

Included w/ SEAL KIT, A42888

1шт.

9

A57556

PISTON

ASSY. - pilot

1шт.

10

A57558

RETAINER

- pilot spring

1шт.

11

A34492

SPRING

- relief valve (23/32" free length)

1шт.

12

A34391

SHIM,.0149" Thk

Relief spring .0149" Thk

1шт.

13

A34390

SHIM,.0329" Thk

Relief spring .0329" Thk

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - 3/4 x 59/64 x 1/8"

1шт.

Included w/ SEAL KIT, A42888

1шт.

15

A34392

PLUG

- relief valve

1шт.

A42888

KIT

- seal, Includes: Ref. 4, 5, 8 and 14

1шт.
