Запчасти Case IH 870 (144) - G100018 OIL FILTER (05) - STEERING

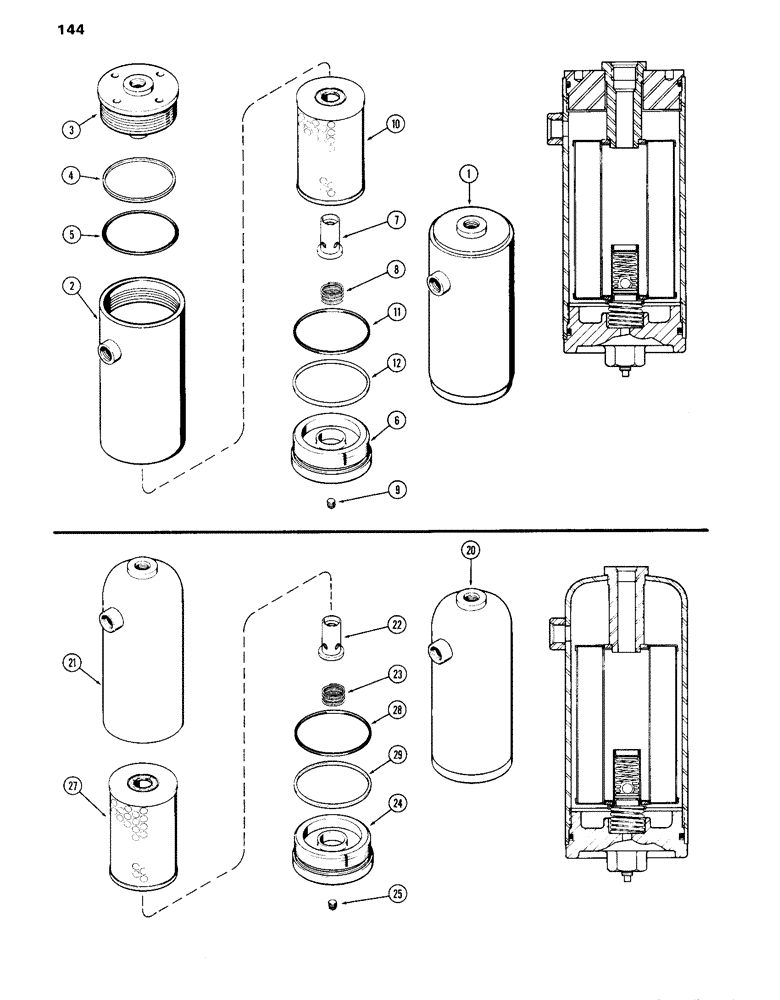

Схема запчастей Case IH 870 - (144) - G100018 OIL FILTER (05) - STEERING
23
4
6
12
8
11
27
21
5
10
22
20
25
9
3
7
24
1
29
28
2

Артикул

Название

Примечание

Количество

1

G100018

SPARE PART

FILTER ASSY. - (25 micron) (Order G32017) (includes ref. 2 - 12)

1шт.

2

G100012

TUBE,4.17" ID x 9.890" L

ASSY. - filter (includes ref. 3 - 12)

1шт.

3

G100017

CAP

- end, top (Order G32018)

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

6

A60765

CAP

- end, bottom

1шт.

7

D37207

VALVE

ASSY. - relief

1шт.

8

D31212

SPRING

- retaining

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd. (includes ref. 10, 11 & 12)

1шт.

A61234

HYDRAULIC OIL FILTER

ELEMENT KIT - filter

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8"

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64"

1шт.

20

G32017

FILTER

ASSY. - (25 Micron), oil (includes ref. 21 - 25 and 27 - 29)

1шт.

21

G32018

HYD TUBE,7.89" L

TUBE - oil filter

1шт.

22

D37207

VALVE

ASSY. - relief, oil filter

1шт.

23

D31212

SPRING

- retaining, oil filter

1шт.

24

A60765

CAP

- end, oil filter

1шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" sq. hd., oil filter (includes ref. 36 & 37)

1шт.

A61234

HYDRAULIC OIL FILTER

KIT - element, oil filter

1шт.

27

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order A61234)

1шт.

28

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 4 x 4-1/4 x 1/8", oil filter

1шт.

29

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

4 x 4-1/8 x 3/64", Oil filter

1шт.

Выбрано товаров: 23
