Запчасти Case IH 870 (142) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES WITH POWER SHIFT, FIRST USED TRACTOR S/N 8693001 (05) - STEERING

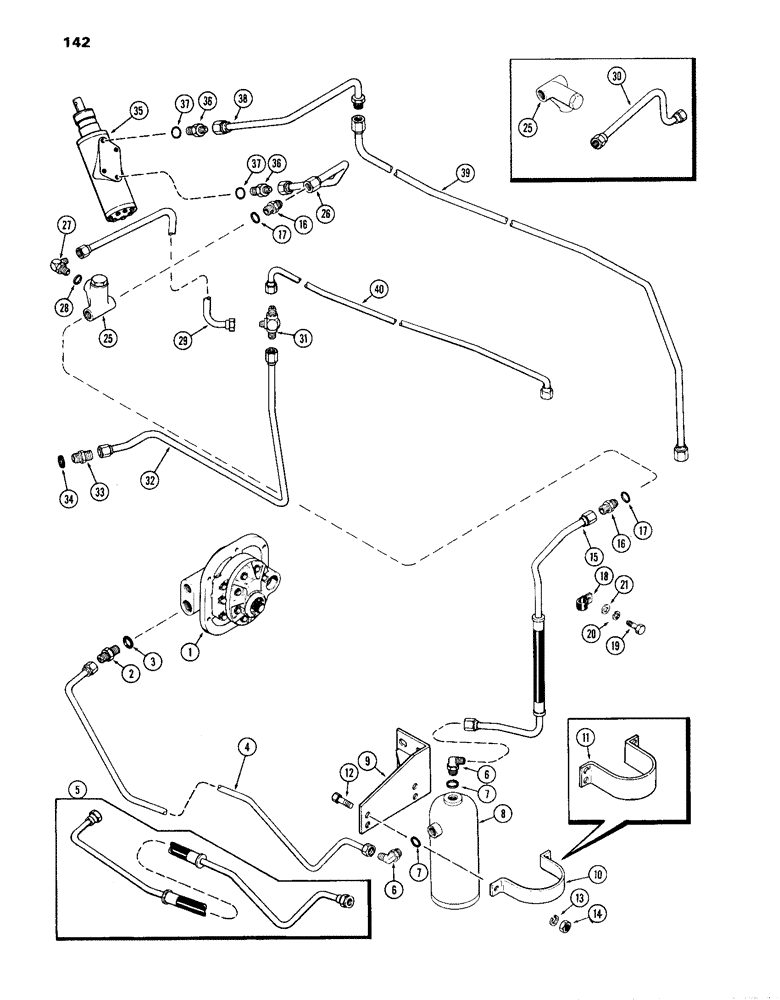

Схема запчастей Case IH 870 - (142) - STEERING AND BRAKE VALVE SYSTEM, HYDRAULIC BRAKES WITH POWER SHIFT, FIRST USED TRACTOR S/N 8693001 (05) - STEERING
31
15
37
17
25
37
28
35
26
3
16
39
33
5
32
16
19
36
40
34
1
20
14
8
38
6
27
4
13
25
6
29
18
30
10
9
11
17
7
12
36
21
2
7

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. - dual hydraulic (See Figure 272)

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- tube to pump, 3/4" tube x 1-1/16" (Incl. Ref 3) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

4

A67072

TUBE

- pump to filter (Replaces A64478)

1шт.

5

A64478

TUBE

- pump to filter (Order A67072)

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- filter, 1/2" tube x 3/4"-16 (includes ref. 7)

2шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

8

NSS

NOT SOLD SEPARAT

FILTER ASSY. - hydraulic oil (Repairs Figure 145)

1шт.

9

A62650

BRACKET

- filter mounting

1шт.

10

A65004

CLAMP - hyd. oil filter to bracket (Replaces A60857)

1шт.

11

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

12

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

15

A64524

HOSE

TUBE - filter to relief valve

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - relief valve, 1/2" tube x 3/4"-16 (Incl. Ref 17)

2шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

18

49833

CLAMP

- tube, filter to relief valve

1шт.

19

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

95-4

WASHER,1/4"

- plain, 5/16 x 3/4 x 1/16"

1шт.

25

A59905

VALVE

ASSY. - relief (Repairs Page 145)

1шт.

26

A64525

TUBE

- relief, Serial Range: valve-pump

1шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- relief valve, 1/2" tube x 3/4"-16 (includes ref. 28)

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

29

A65122

TUBE

- relief valve to tee (Replaced A64527)

1шт.

30

A64527

TUBE

- relief valve to tee (Order A65122)

1шт.

31

218-594

TEE,3/4"-16, 37 Degree

- junction, 3/4"-16

1шт.

32

A64531

TUBE - tee to transmission cover

1шт.

33

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - tube to cover, 1/2" tube x 3/4"-16 (Incl. Ref 34)

1шт.

34

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

35

NSS

NOT SOLD SEPARAT

PUMP ASSY. - steering (See Page 146-147C)

1шт.

36

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - tube to pump (includes ref. 37)

2шт.

37

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

38

A64528

TUBE

- pump to oil cooler tube

1шт.

39

A64519

TUBE - oil, Serial Range: cooler-pump

1шт.

40

A64520

TUBE - oil, Serial Range: cooler-tee

1шт.

Выбрано товаров: 38
