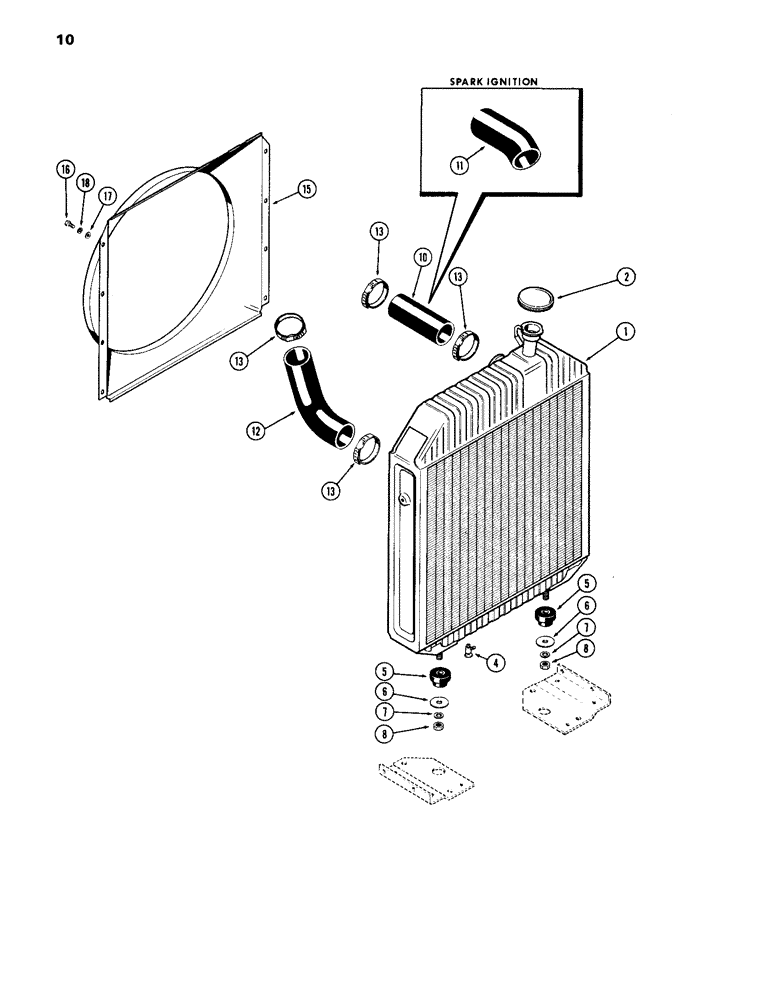

Запчасти Case IH 870 (010) - RADIATOR, (336B) DIESEL AND (301B) SPARK IGNITION ENGINES (02) - ENGINE

1

A60316

RADIATOR

- (Spark Ignition)

1шт.

1

A66331

RADIATOR

- (Diesel) (1st used eng. ser. no. 2530834)

1шт.

1

A60316

RADIATOR

- (Diesel) (used prior to eng. ser. no. 2530834)

1шт.

2

A61784

CAP

- radiator, w/air conditioner (14 P.S.I.)

1шт.

4

A23656

COCK, DRAIN

VALVE - radiator drain

1шт.

5

A59863

MOUNTING PARTS

MOUNT - center bonded

2шт.

6

48560

BRAKE LINING

- center bonded mount snubber (9/16 x 1-3/4 x 10 ga.)

2шт.

7

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A59866

HOSE,2.50" ID x 6.70", SAE 20R4 CLASS SC

RADIATOR HOSE, , Inlet (Diesel) 2.50" ID x 6.70", SAE 20R4 CLASS SC

1шт.

11

A59864

HOSE,2.50" ID x 8.20", SAE 20R4 CLASS SC

RADIATOR HOSE, , Inlet (Spark Ignition) 2.50" ID x 8.20", SAE 20R4 CLASS SC

1шт.

12

A59865

HOSE,2.25" ID x 7.38", SAE 20R4 CLASS SC

RADIATOR HOSE, , Outlet (Diesel and Spark) 2.25" ID x 7.38", SAE 20R4 CLASS SC

1шт.

13

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - radiator hose (2-5/16 x 3-1/4")

4шт.

15

A59867

SHROUD

- fan

1шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

17

195-515

WASHER,#12

- (1/4 x 1/2 x 1/16")

8шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.
