(141C) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, FIRST USED TRACTOR S/N 8693001

Запчасти Case IH 870 (141C) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, FIRST USED TRACTOR S/N 8693001 (05) - STEERING

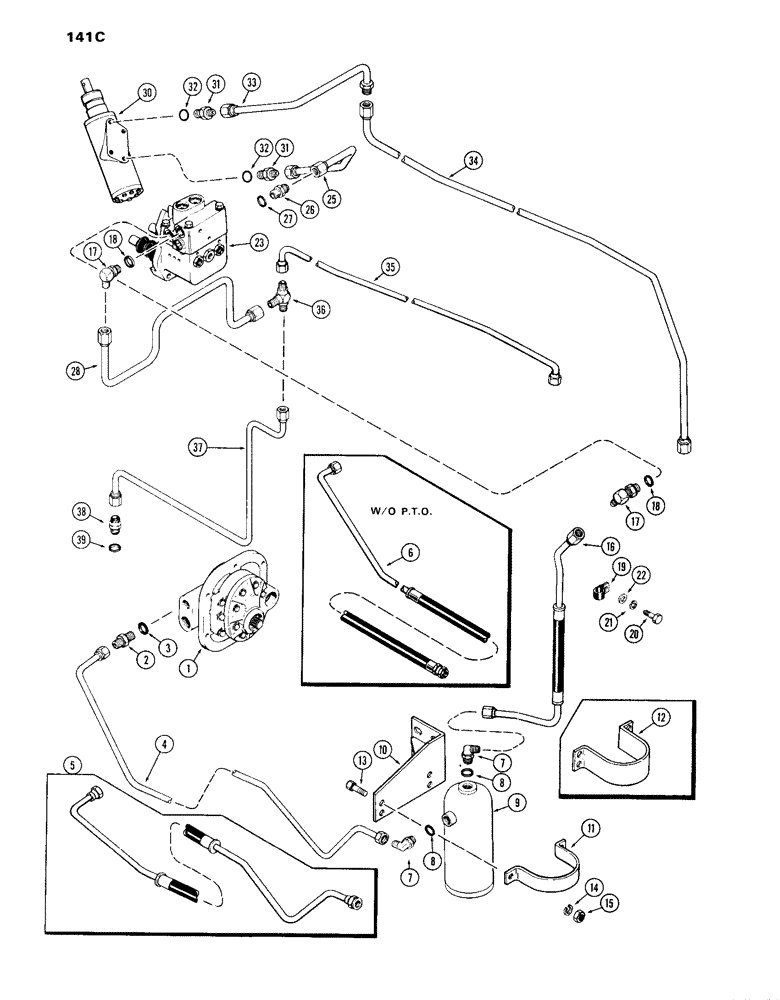

Схема запчастей Case IH 870 - (141C) - STEERING AND BRAKE VALVE SYSTEM, POWER BRAKES WITH MECHANICAL SHIFT, FIRST USED TRACTOR S/N 8693001 (05) - STEERING
26
19
2
7
27
10
20
18
34
12
32
18
8
39
4
8
1
15
28
36
37
7
3
13
16
31
17
6
25
35
32
22
30
33
38
23
11
14
17
21
5
31
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. - dual hydraulic (See Figure 272)

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- tube to pump, 3/4" tube x 1-1/16" (Incl. Ref 3) 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

4

A67072

TUBE

- pump to filter (Replaces A64478)

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

5

A64478

TUBE

- pump to filter (w/P.T.O.)

1шт.

6

A62123

TUBE - pump to filter (w/o P.T.O.)

1шт.

9

NSS

NOT SOLD SEPARAT

FILTER ASSY. - hydraulic oil (Repairs Figure 144)

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- filter, 1/2" tube x 3/4"-16 (includes ref. 8)

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

10

A62650

BRACKET

- filter mounting

1шт.

11

A65004

CLAMP - hyd. oil filter to bracket (Replaced A60857)

1шт.

12

A60857

CLAMP - hyd. oil filter to bracket (Order A65004)

1шт.

14

92-6

LOCK WASHER,3/8"

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

16

A62369

TUBE

- filter to brake valve

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

19

49833

CLAMP

- tube, filter to brake valve

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- brake valve, 1/2" tube x 3/4"-16 (includes ref. 18)

2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

22

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE ASSY. - brake (Repairs Figures 224 thru 227E)

1шт.

20

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

25

A64525

TUBE

- pressure, brake, Serial Range: valve-pump

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - valve, 1/2" tube x 3/4"-16 (Incl. Ref 27)

1шт.

28

A64526

TUBE

- brake, Serial Range: valve-tee

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.

30

NSS

NOT SOLD SEPARAT

PUMP ASSY. - steering (See Figures 146 - 147C)

1шт.

31

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - tube to pump (includes ref. 32)

2шт.

33

A64528

TUBE

- pump to oil cooler tube

1шт.

32

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

34

A64519

TUBE - oil, Serial Range: cooler-pump

1шт.

35

A64520

TUBE - oil, Serial Range: cooler-tee

1шт.

36

218-594

TEE,3/4"-16, 37 Degree

- junction, 3/4"-16

1шт.

37

A64530

TUBE - tee to clutch housing

1шт.

38

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - tube to housing, 1/2" tube x 3/4"-16 (Incl. Ref 39)

1шт.

39

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - 41/64 x 1/2 x 5/64"

1шт.
