Запчасти Case IH 870 (139A) - HYDROSTATIC STEERING SYS., W/ ADJUSTABLE AXLE OR DUAL FRONT WHEELS, USED PRIOR TO TRAC. S/N 8693001 (05) - STEERING

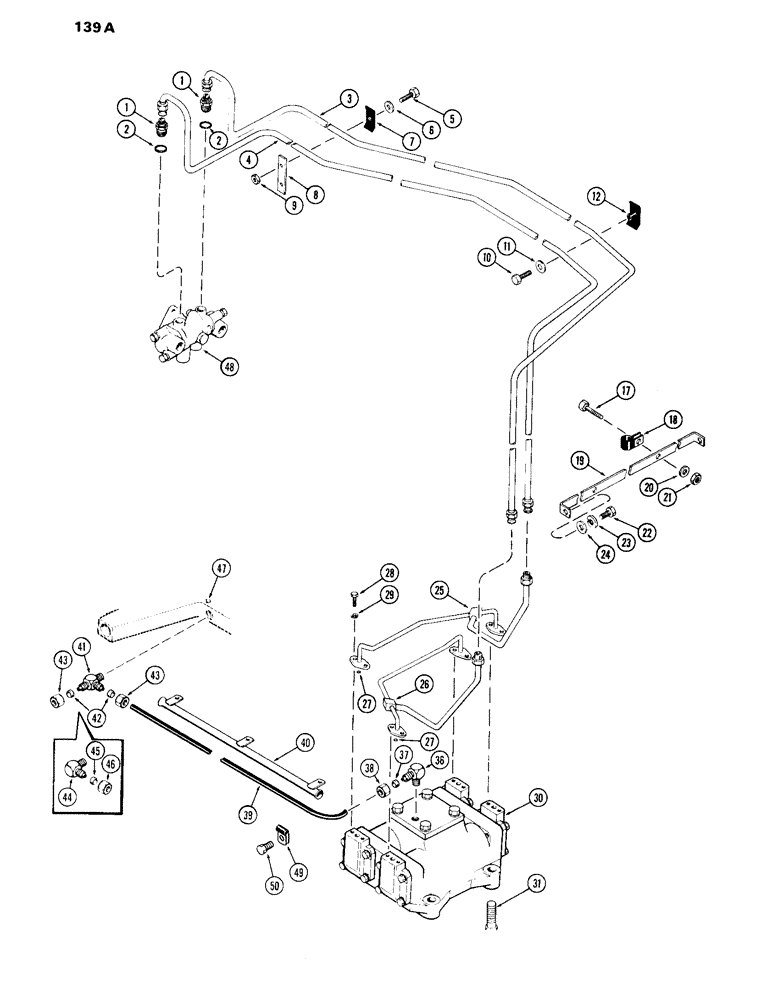

Схема запчастей Case IH 870 - (139A) - HYDROSTATIC STEERING SYS., W/ ADJUSTABLE AXLE OR DUAL FRONT WHEELS, USED PRIOR TO TRAC. S/N 8693001 (05) - STEERING
12
5
49
46
43
39
18
9
26
42
27
19
28
17
4
6
31
2
36
24
1
43
29
8
20
21
30
2
1
40
50
44
10
22
38
48
3
45
37
27
23
47
7
25
11
41

Артикул

Название

Примечание

Количество

1

A60705

CONNECTOR - tube, steering valve to actuator tube

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

3

A60220

TUBE - upper, steering, Serial Range: valve-actuator

1шт.

4

A60221

TUBE - lower, steering, Serial Range: valve-actuator

1шт.

5

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Clip to plate Hex, 1/4"-20 x 1 1/4", G5

1шт.

6

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

7

A60224

CLAMP

CLIP - mounting, steering actuator & cooler tube

1шт.

8

A60223

PLATE - mounting, steering actuator & cooler tube

1шт.

9

25-104

NUT,1/4"-20, G5

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to radiator baffle support Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

11

195-18

WASHER,1/4"

- (9/32 x 5/8 x 1/16")

1шт.

12

A60225

CLAMP - mounting, actuator tube (5/8" O.D.)

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to support Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

18

49885

CLAMP

- steering, Serial Range: tube-support

2шт.

19

A61087

SUPPORT

- steering tube to grill mounting

1шт.

20

95-4

WASHER,1/4"

- (5/16 x 3/4 x 1/16")

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Support to radiator grill Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

95-5

WASHER,3/8" x 7/8" x .083"

- (1/8 x 5/16 x 3/64")

2шт.

25

A60229

TUBE

- steering, crossover (L.H.)

1шт.

26

A60228

TUBE - steering, crossover (R.H.)

1шт.

27

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - flange, crossover tubes (1/2 x 11/16 x 3/32")

4шт.

28

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube flanges Hex, 5/16"-18 x 1", G5, Full Thd

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

NSS

NOT SOLD SEPARAT

ACTUATOR ASSY. - hydrostatic steering (See Figure 148)

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

- actuator to rad. support (3/4 x 3-1/2" N.C. Ferry cap)

4шт.

36

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 deg. male (3/8" tube O.D. x 1/4" male P.T.) (includes ref. 37 & 38)

1шт.

37

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

38

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

39

A60723

BASE PLATE

TUBE - steering actuator to trans. cover (Nylon)

1шт.

40

A59925

TUBE

- protector, steering actuator to trans. cover

1шт.

41

222-5120

TEE,7/16"-24 x 1/4" NPT Run

- reducing, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.) (Used Only On Tractors w/Power Brakes) (includes ref. 42 & 43)

1шт.

42

222-5186

SLEEVE,3/8" Tube

- nylon

2шт.

43

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

2шт.

44

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 deg. male, trans. cover sump return (3/8" tube O.D. x 1/4" male P.T.) (Used Only On Tractors w/Hyd. Brakes) (includes ref. 45 & 46)

1шт.

45

222-5186

SLEEVE,3/8" Tube

- nylon

1шт.

46

222-5181

NUT,9/16"-24

NUT - for nylon sleeve

1шт.

47

NSS

NOT SOLD SEPARAT

COVER - trans, front top (See Figures 186, 190 & 194)

1шт.

48

A60207

VALVE

ASSY. - steering (See Figure 149G)

1шт.

49

A61275

CLIP

- tube, steering, Serial Range: actuator-transmission

1шт.

50

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Not used w/R.H. step) Hex, 1/2"-13 x 1", G5, Full Thd

1шт.

Выбрано товаров: 42
