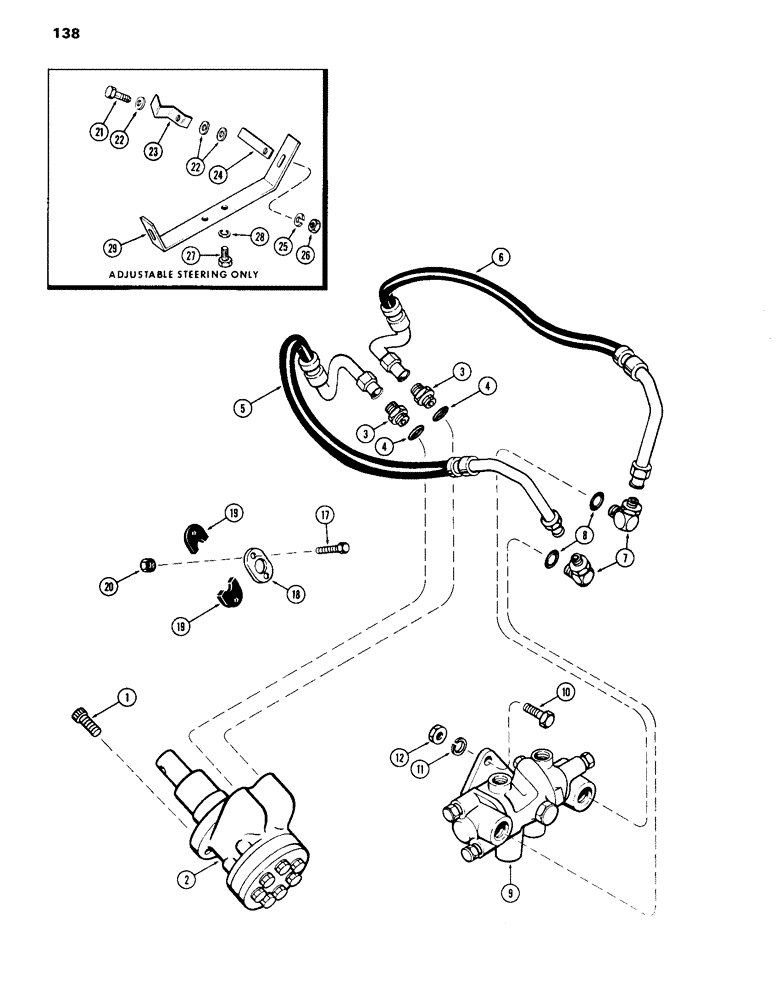

Запчасти Case IH 870 (138) - HYDROSTATIC STEERING SYS., W/ ADJUSTABLE AXLE OR DUAL FRONT WHEELS, USED PRIOR TO TRAC. S/N 8693001 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
166-26
12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8
SCREW - hand pump to strg. column (5/16 x 1" N.C. Ferry cap)
4шт.
2
NSS
NOT SOLD SEPARAT
PUMP ASSY. - hand, steering (See Figure 147C)
1шт.
3
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR Assy - (1/2" tube O.D. x 3/4") (Incl. Ref 4)
2шт.
4
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - (1/2 x 21/32 x 3/32")
1шт.
5
A60200
HYD TUBE
HOSE - hand pump to valve assy. (R.H.)
1шт.
6
A60201
HYD TUBE
HOSE - hand pump to valve assy. (L.H.)
1шт.
7
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Assy, Adjustable (Includes Ref. 8) 90º, 3/4"-16, 37º x 3/4"-16, O-Ring
2шт.
9
A60207
VALVE
ASSY. - control, hydrostatic steering (See Figure 148)
1шт.
8
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - (1/2 x 21/32 x 3/32")
1шт.
11
92-6
LOCK WASHER,3/8"
3шт.
10
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Valve to firewall Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
12
25-106
NUT,3/8"-16, G5
- hex (3/8" N.C.)
3шт.
18
A60206
PLATE - steering hose clamp (between bolt head & baffle)
2шт.
17
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
Clamp, hose & baffle Hex, 1/4"-20 x 1", G5
4шт.
19
A60205
CLAMP - steering hoses (Neoprene)
4шт.
20
25-104
NUT,1/4"-20, G5
4шт.
22
195-22
WASHER
- (3/8 x 3/4 x 1/16")
6шт.
21
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- mtg. bar to clamp (5/16 x 1-1/4" N.C. hex)
2шт.
23
A60203
CLAMP - tilt steering hoses
1шт.
24
A60204
PLATE - backup, tilt steering hoses clamp
2шт.
25
92-5
LOCK WASHER,5/16"
2шт.
27
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Mtg. bar to strg. column Hex, 5/16"-18 x 7/8", G5, Full Thd
2шт.
26
9635082
NUT,5/16" - 18, Gr 5
- hex (5/16" N.C.)
2шт.
28
92-5
LOCK WASHER,5/16"
2шт.
29
A59245
BAR - mounting, tilt steering hoses & clamps
1шт.
Выбрано товаров: 25
