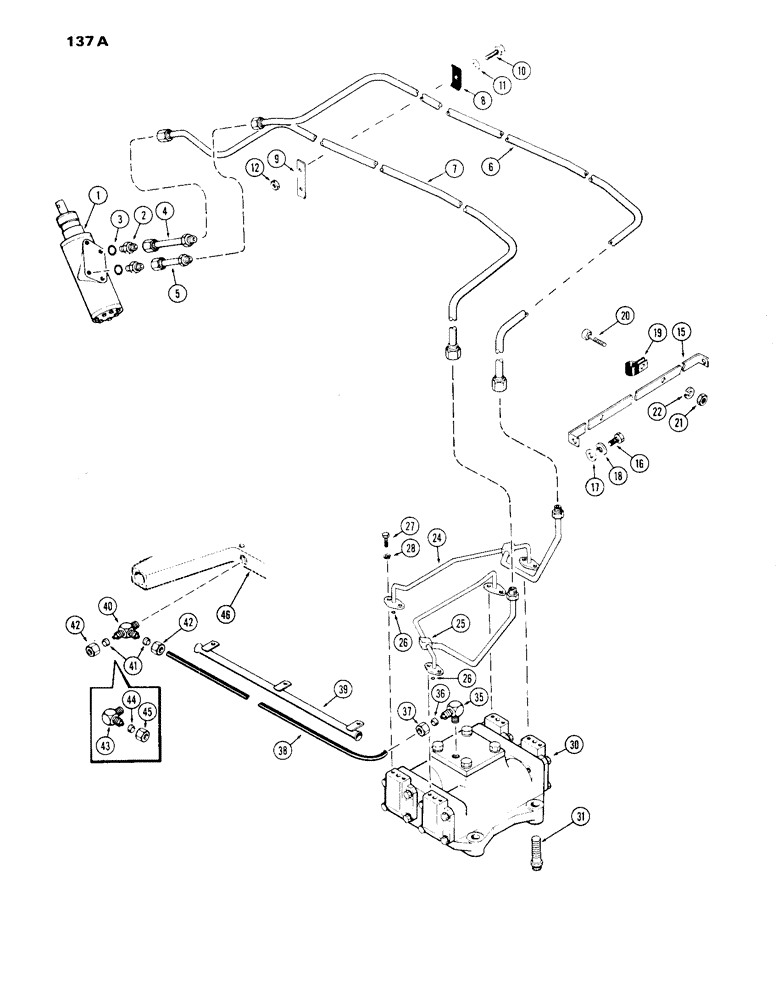

Запчасти Case IH 870 (137A) - HYDROSTATIC STEERING SYSTEM, WITH ADJUSTABLE FRONT AXLE, USED TRACTOR SERIAL NOS. 8693001 TO 8741587 (05) - STEERING

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. - steering (See Figures 146-147C)

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - tube to pump (9/16"-18 x 3/4"-16) (includes ref. 3)

4шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

A135522

TUBE - L.H. turn, 6-1/2" long

1шт.

5

A64501

TUBE

- R.H. turn, 5" long

1шт.

6

A64502

TUBE - R.H. turn, Serial Range: pump-crossover

1шт.

7

A64904

TUBE - L.H. turn, pump to crossover (Replaces A64503)

1шт.

8

A60223

PLATE - mounting, tube clip

1шт.

9

A60404

CLIP

- tube

2шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

11

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

15

A61087

SUPPORT

- clamp, Serial Range: tube-grill

1шт.

16

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex

2шт.

17

195-128

WASHER,5/16"

- 3/8 x 1-1/8 x 5/64"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

49838

CLAMP

- tube

2шт.

20

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4 x 3/4" N.C. hex

2шт.

21

25-104

NUT,1/4"-20, G5

2шт.

22

195-127

WASHER - 5/16 x 3/4 x 1/16"

2шт.

24

A64514

TUBE

ASSY. - crossover, R.H. turn

1шт.

25

A64515

TUBE

ASSY. - crossover, L.H. turn

1шт.

26

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - tube flange (1/2 x 11/16 x 3/32")

4шт.

27

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

28

92-5

LOCK WASHER,5/16"

8шт.

30

NSS

NOT SOLD SEPARAT

ACTUATOR ASSY. - (w/adj. front axle) (See Figure 148)

1шт.

31

A62066

SCREW,Ferry 3/4" - 10 x 2 1/2", Alloy Steel

- actuator to support (3/4 x 2-1/2" N.C. ferry)

4шт.

35

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 90 deg., 3/8" O.D. x 1/4" P.T. (includes ref. 36 & 37)

1шт.

36

222-5186

SLEEVE,3/8" Tube

- nylon, 3/8" Tube

1шт.

37

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

38

A60723

BASE PLATE

TUBE - nylon, Serial Range: actuator-trans.

1шт.

39

A59925

TUBE

- conduit

1шт.

40

222-5120

TEE,7/16"-24 x 1/4" NPT Run

- reducing, 3/8" O.D. x 1/4" P.T. (w/power brakes) (includes ref. 41 & 42)

1шт.

41

222-5186

SLEEVE,3/8" Tube

- nylon, 3/8" Tube

2шт.

42

222-5181

NUT,9/16"-24

NUT - 3/8" tube

2шт.

43

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

- 3/8" O.D. x 1/4" P.T. (w/hydraulic brakes) (includes ref. 44 & 45)

1шт.

44

222-5186

SLEEVE,3/8" Tube

- nylon, 3/8" Tube

1шт.

45

222-5181

NUT,9/16"-24

NUT - 3/8" tube

1шт.

46

NSS

NOT SOLD SEPARAT

COVER - trans., front top (See Figures 186, 190, & 194)

1шт.
